Air Conditioner Service Manual
75

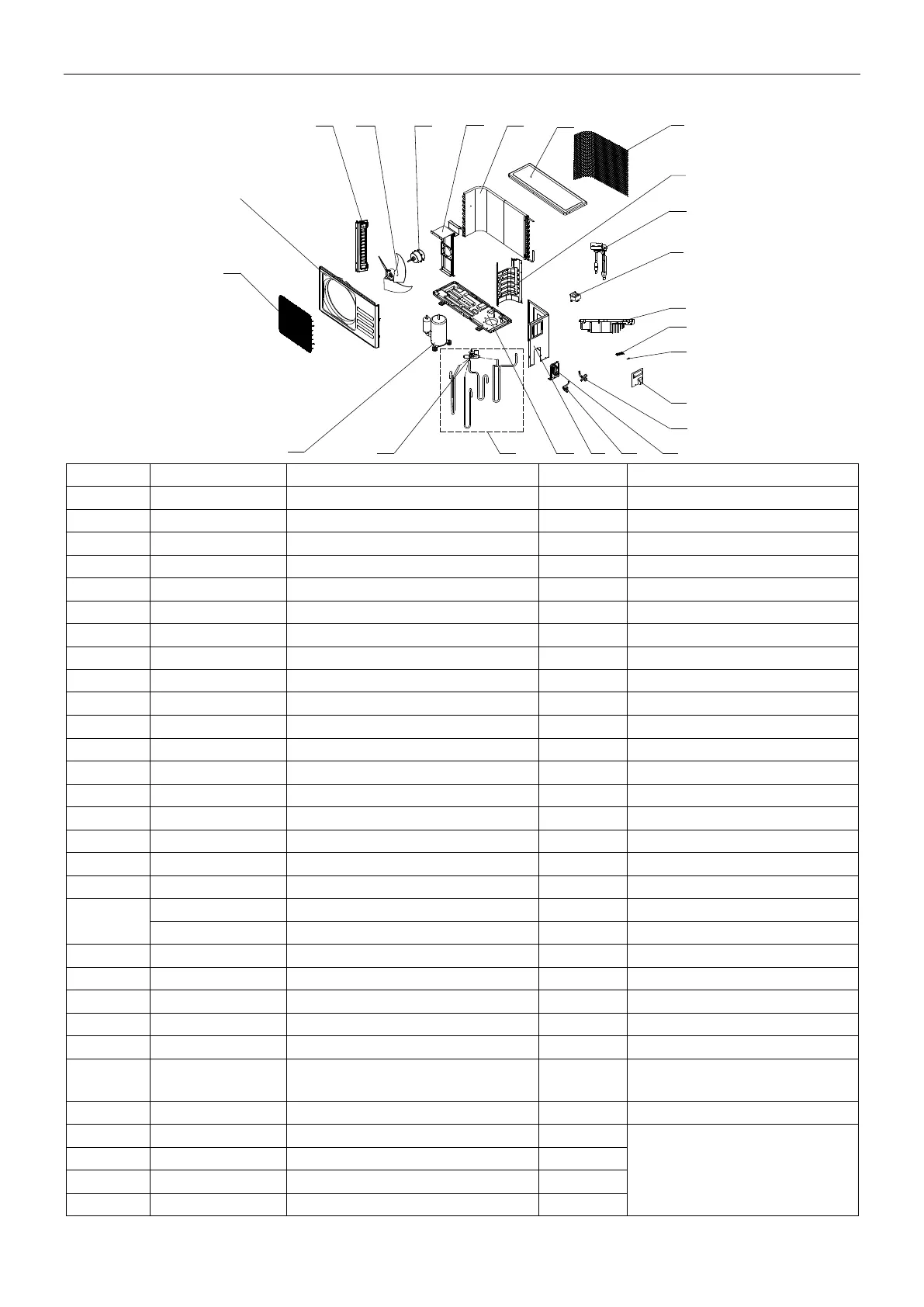

Outdoor Unit- DOS-24KIDT(W)
No.
Part No.
Part Name
Q’ty
Remark
1
42011-000128
Grille
1
2
41207-000028
Top cover
1
3
92011-000482
Condenser
1
4
41203-000046
Outdoor motor supporter
1
5
22001-000110
Outdoor motor
1
6
42004-000105
Propeller fan
1
7
41205-000117
Left grille supporter
1
8
41206-000047
Front plate
1
9
42011-000090
Fan guard
1
10
92014-000357
Compressor and accessories
1
11
92008-000207
4-way valve
1
12
92007-000821
4-way valve assembly
1
13
41202-000170
Base
1
14
41205-000075
Right plate
1
15
92008-000024
Two-way valve
1
16
41204-000018
Valve supporter
1
17
92008-000124
Three-way valve
1
18
41201-000029
Electrical box cover
1
19
42001-000039
Cable clamp
1
42001-000035
Cable clamp
1
20
11304-100004
Terminal
1
21
31201-000925
Outdoor PCB assembly
1
22
22011-000004
Inductor
1
23
92007-003055
Electronic expand valve
1
24
41208-000152
Partition plate
1
25
10104-100039
Pipe Temp. sensor and outdoor
Temp. sensor
1
26
10104-100037
Discharge Temp. sensor
1
27
A2005-000512
Base carton
1
Not shown in explosion view
28
A1201-003852
Cabinet carton
1
29
A1202-000024
Base foaming
1
30
41213-000018
Cover foaming
1
10
11
12
8
9
7
6
5
17
13
14
16
15
19
18
20
21
23
22
24
4
3
2
1
