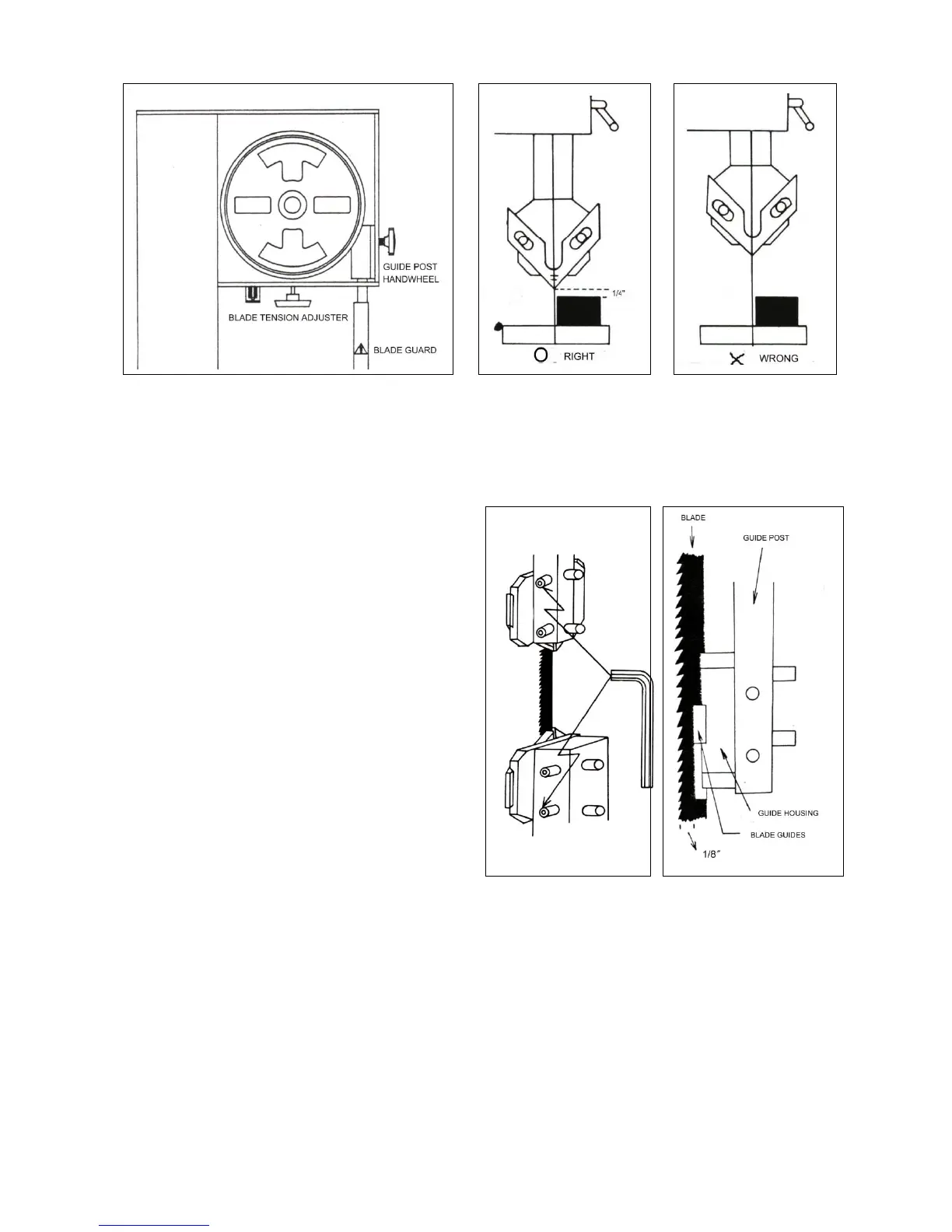

Figure A Figure B
▲ It may be necessary to open the blade guides, before you adjust the guide post to
allow free movement of the guide post.
GUIDE HOLDER ADJUSTMENT
1. Loosen the inner hex screws
located at the right lower side of
guide post with an “L” shaped allen
wrench.
2. Adjust the guide holder forward or
backward according to the blade
width. The front edge of the blade
guides must be adjusted about 1/8”
behind the blade teeth. (see figure B
next page)
3. Tighten the screws securely.
BLADE GUIDE ADJUSTING
1. Loosen the inner hex screws of the blade guide with an “L” shaped allen wrench.
2. Adjust the blade guides very close to the blade but not touching the guide faces. (approx.
thickness of a business card)
3. With blade tight allow guides to ride up to the blade not forcing them off center. Tighten
the blade guides securely. (See figure A next page)
NOTE: There are a total of four blade guides and two guide holders located above the
table and under the table, all to be adjusted to the same position.
