57
7
INFORMATION CONCERNING
HANDLING AND INSTALLATION

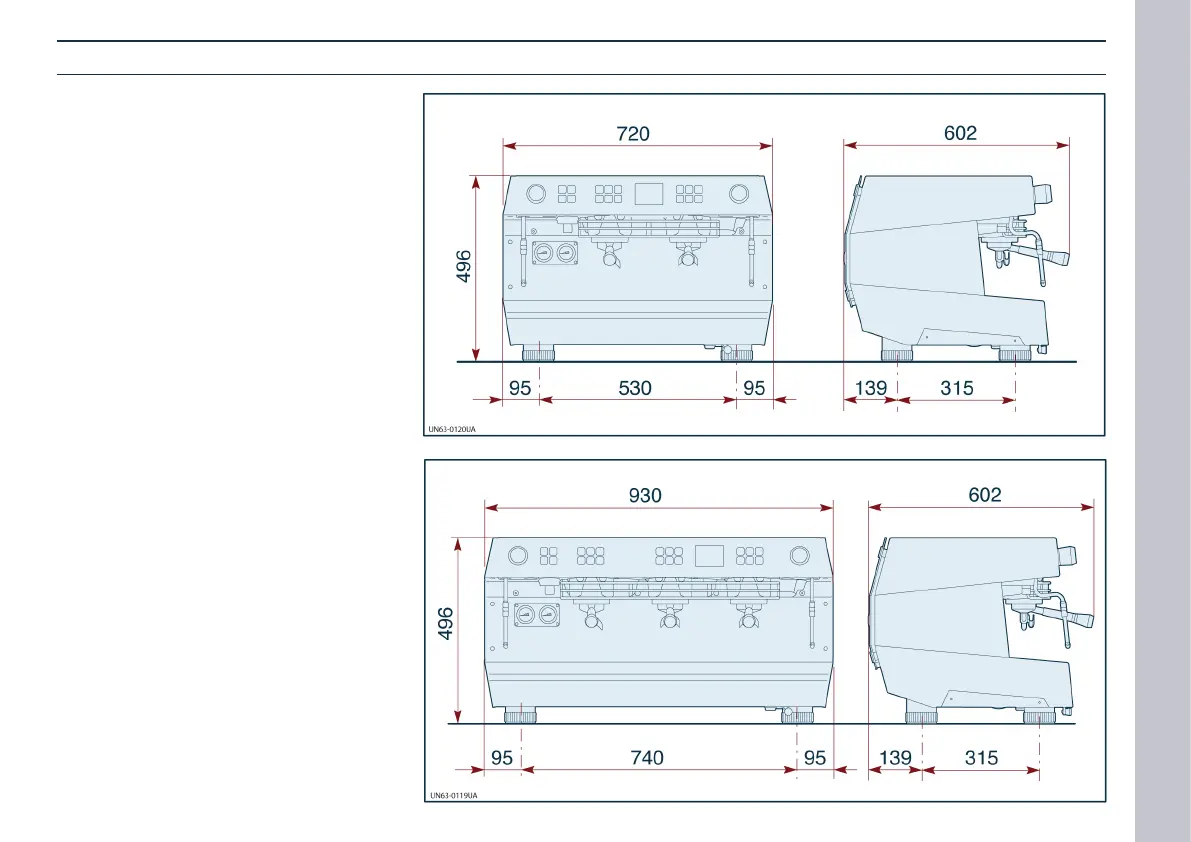

Overall dimensions
This illustration shows the 2 group-
head model.
The dimensions are given in milli-
metres.
This illustration shows the 3 group-
head model.
The dimensions are given in milli-
metres.
