PART LIST OF STANDARD TYPE GEAR UNITS
17Dana IncorporatedIMM-0017EN - Installation and Maintenance Manual
4.9 ET...01 TYPES
IMPORTANT:

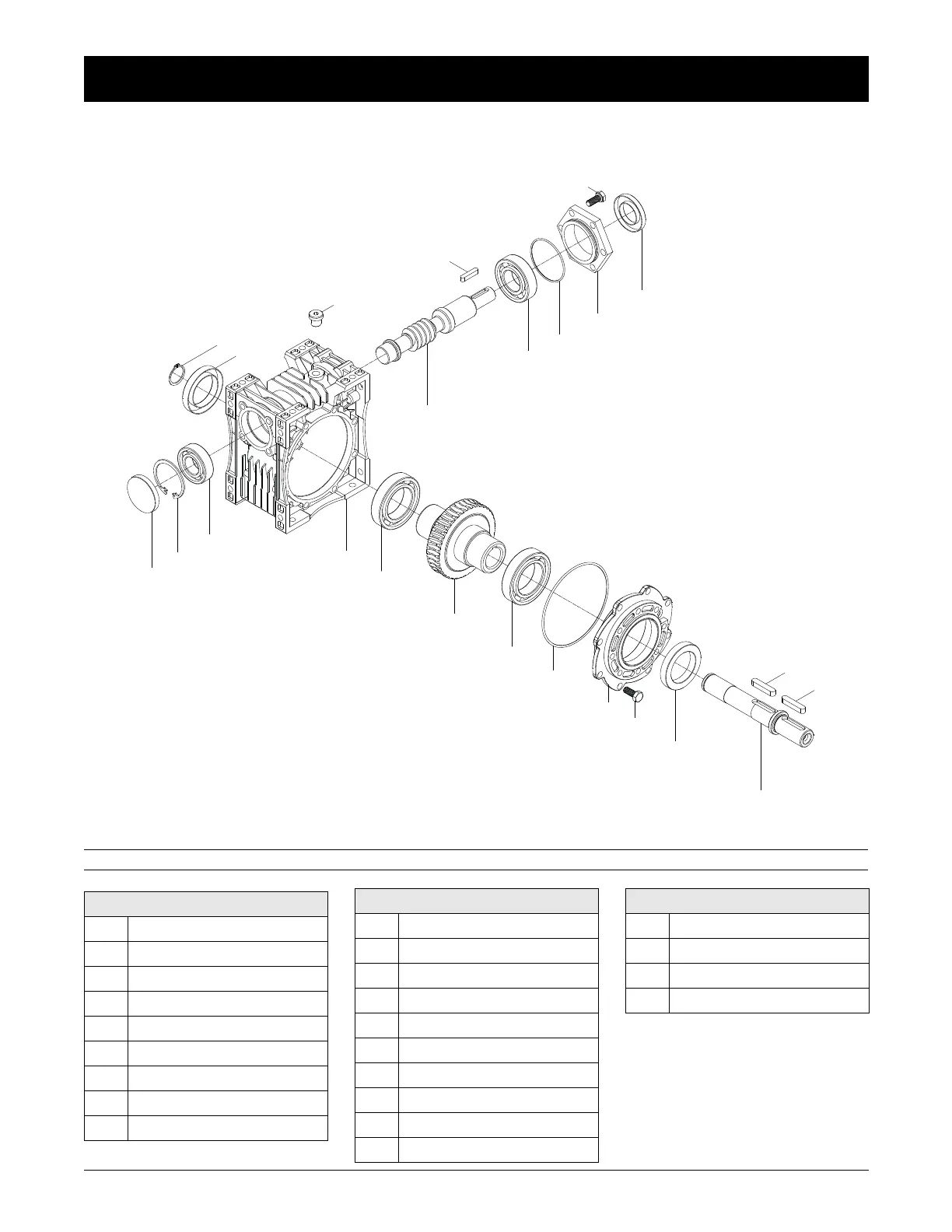

Standard ET..01... type basic part diagram. Parts may differ for special applications.
17
19
20
21
23
18
22
3
4
5
6
7
8
9
10
13
12
11
15
16
14
1
2
1
Standard Part List
1Key
2Solid Output Shaft
3Seal
4Bolt
5Side Cover
6O-Ring
7Bearing
8Worm Wheel
9Bearing
10 Housing
11 Closing Cap
12 Circlips
13 Bearing
14 Circlips
15 Seal
16 Oil Plug
17 Worm Gear
18 Key
19 Bearing
Standard Part List
20 O-Ring
21 Giriş Flange
22 Bolt
23 Seal
Standard Part List
