DANA BREVINI E Series User Manual

PART LIST OF STANDARD TYPE GEAR UNITS
11Dana IncorporatedIMM-0017EN - Installation and Maintenance Manual
4.3 E....02 TYPES
4
3
2
11
10
5
6
7
8
9
12
15
14
13
17
18
19
20
21
22
23
24
16
1
1
IMPORTANT:

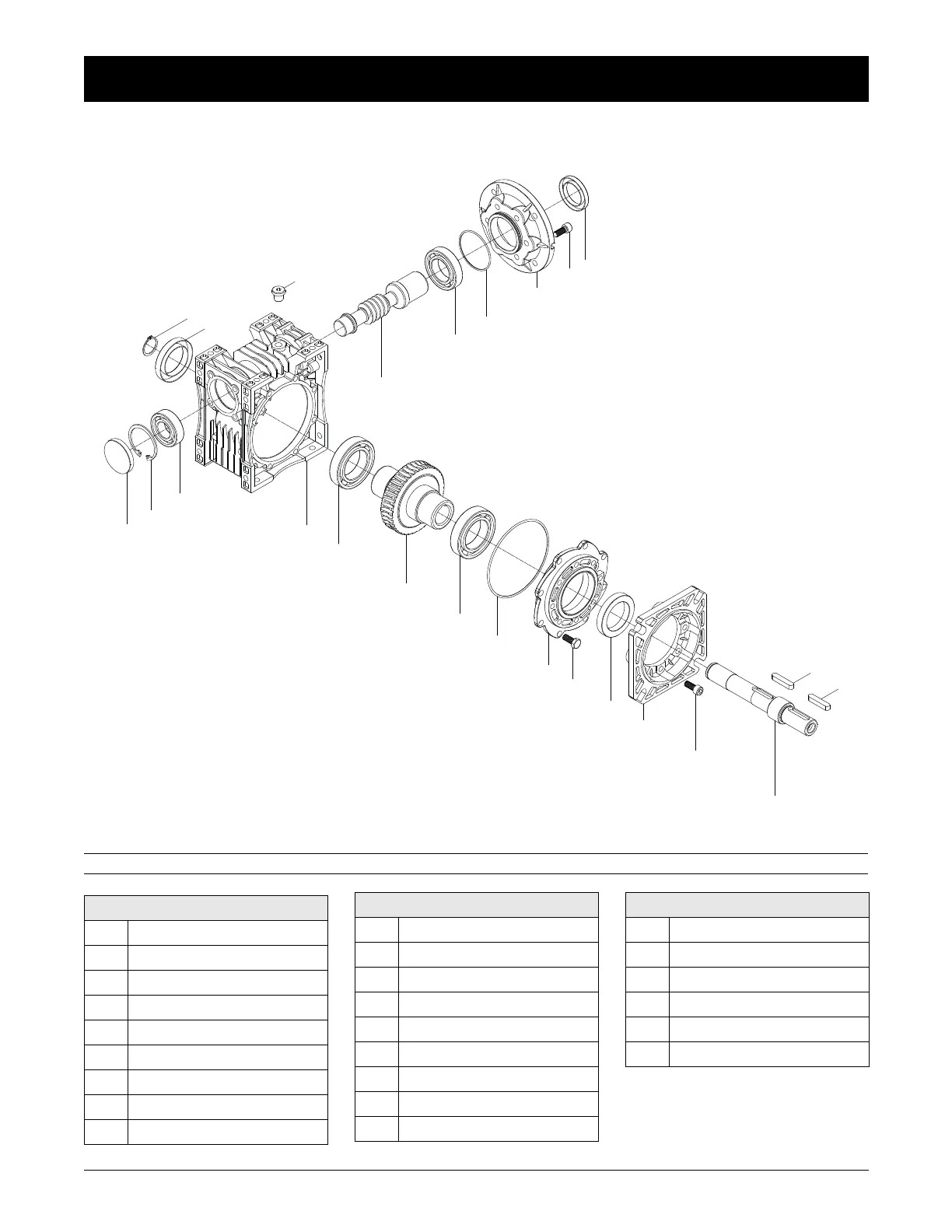

Standard E...02... type basic part diagram. Parts may differ for special applications.
Standard Part List
1Key
2Solid Output Shaft
3Bolt
4Flange
5Seal
6Bolt
7Side Cover
8O-Ring
9Bearing
10 Worm Wheel
11 Bearing
12 Housing
13 Closing Cap
14 Circlips
15 Bearing
16 Circlips
17 Seal
18 Oil Plug
Standard Part List
19 Worm Gear
20 Bearing
21 O-Ring
22 Motor Flange
23 Bolt
24 Seal
Standard Part List
