PART LIST OF STANDARD TYPE GEAR UNITS
Dana Incorporated IMM-0017EN - Installation and Maintenance Manual
4.2 E....01 TYPES
3
4
5
6
7
8
9
10
13
12
11
15
16
17
18
19
20
21
22
14
1
2
1
IMPORTANT:

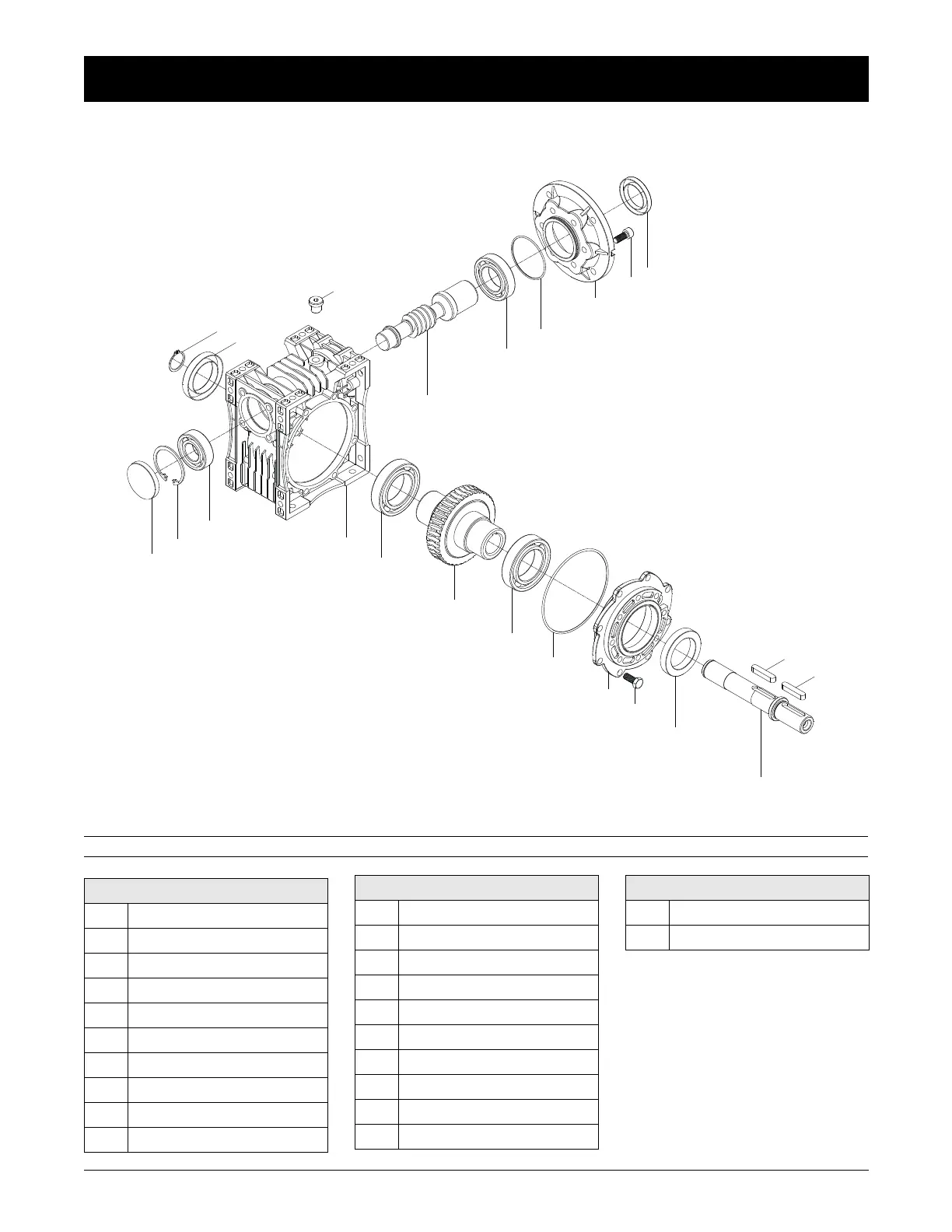

Standard E...01... type basic part diagram. Parts may differ for special applications.
Standard Part List
1Key
2Solid Output Shaft
3Seal
4Bolt
5Side Cover
6O-ring
7Bearing
8Worm Wheel
9Bearing
10 Housing
11 Closing Cap
12 Circlips
13 Bearing
14 Circlips
15 Seal
16 Oil Plug
17 Worm Gear
18 Bearing
19 O-ring
20 Input Flange
Standard Part List
21 Bolt
22 Seal
Standard Part List
