MECHANICAL INSTALLATION
39Dana IncorporatedIMM-0017EN - Installation and Maintenance Manual
8.5 FITTING OUTPUTSHAFT ELEMENTS

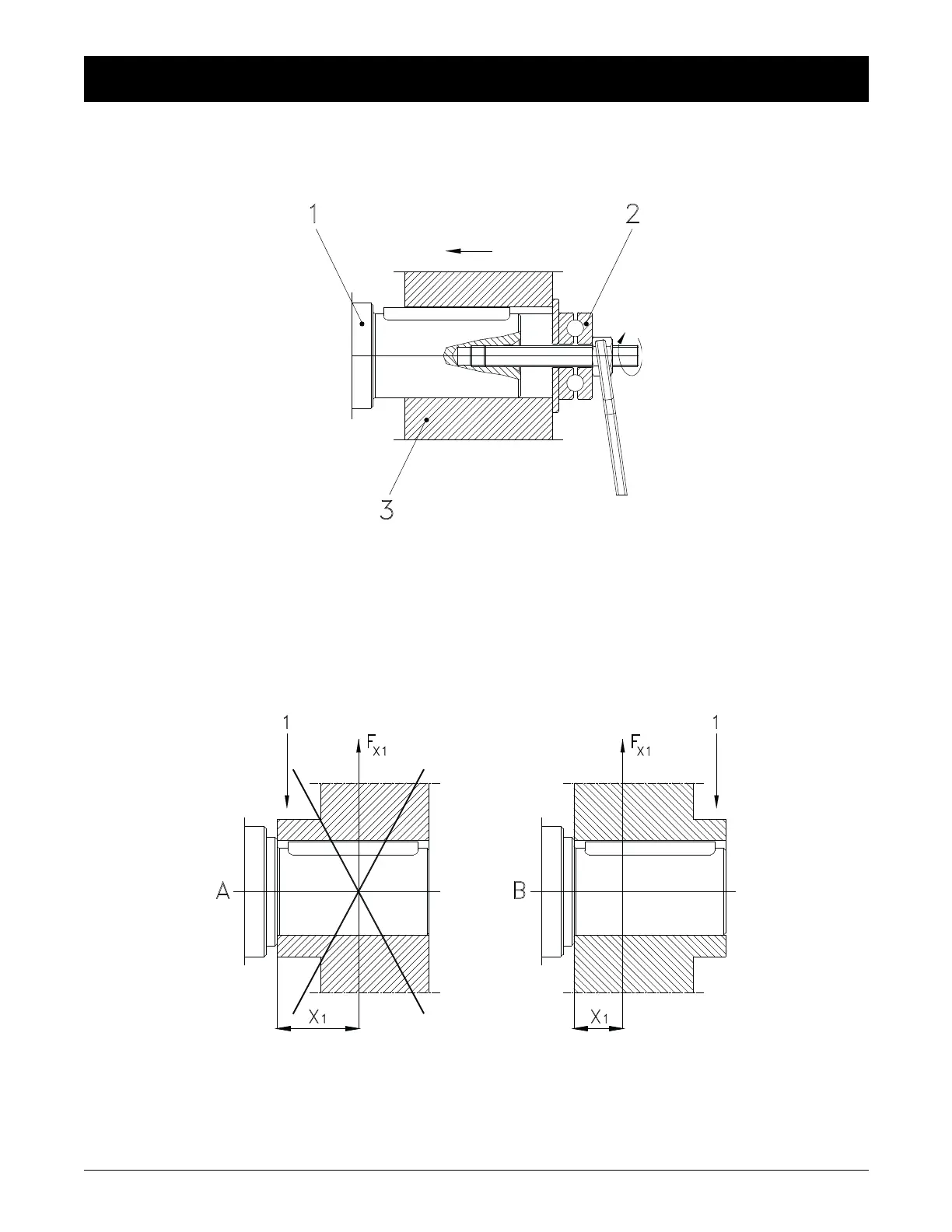

Use the following illustration to assemble output shaft units
1 - Gear shaft end
2 - Thrust bearing
3 - Coupling hub
8.6 CORRECT POSITION OF OUTPUT SHAFT ELEMENTS
The Output Shaft unit (transmission elements) must placed as close as possible to the gear unit so that the radial load is as
closest as possible to the gear unit.
1 - Hub
