DANA BREVINI E Series User Manual

7Dana IncorporatedIMM-0017EN - Installation and Maintenance Manual

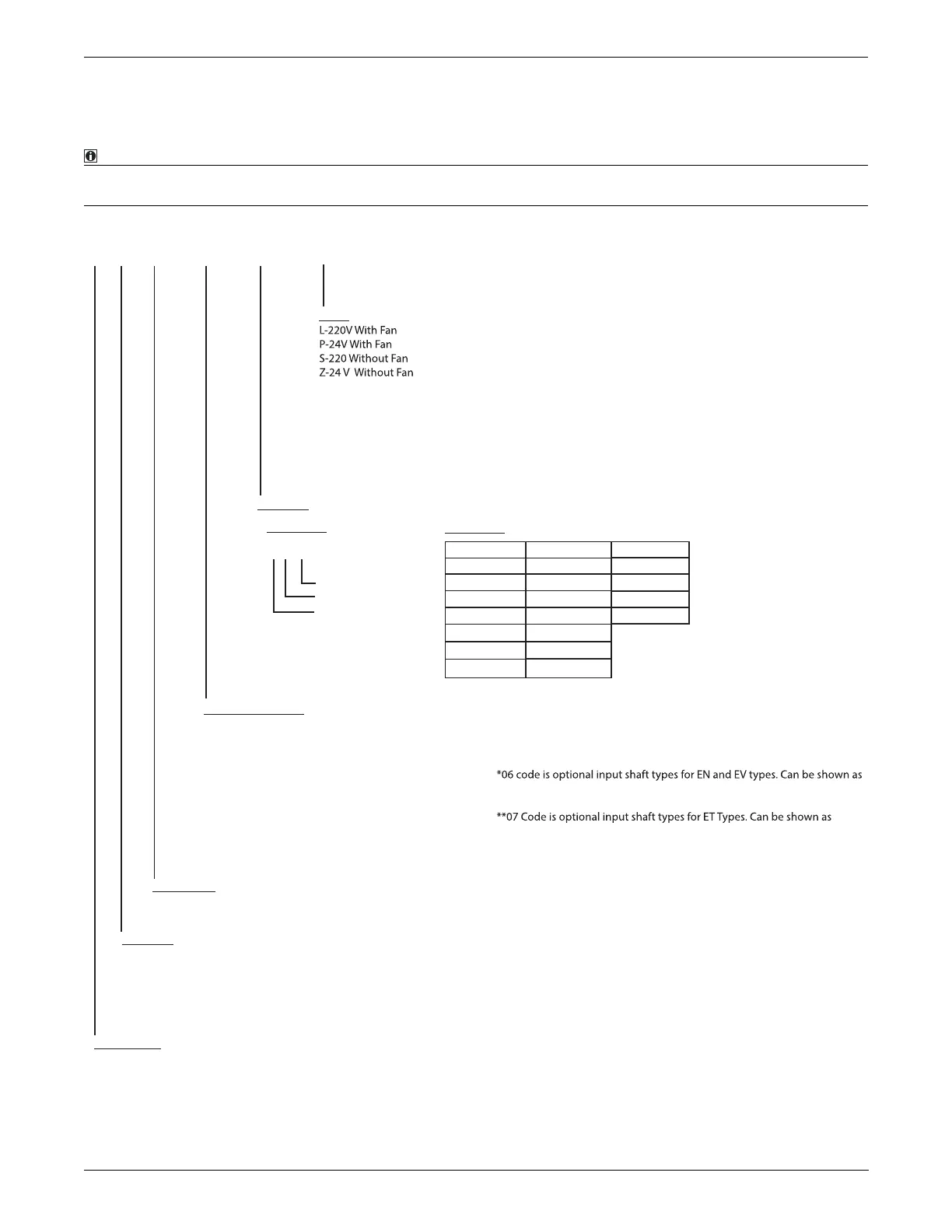

3 UNIT DESIGNATION
3.1 DETAILED UNIT DESIGNATION
NOTE:
Detailed D series gear units designation for ordering
(This Designation is different from the short nameplate designation)
Brake
01 -10 Nm
02 -25 Nm
04 -40 Nm
05 -50 Nm
Gearbox Type
E serie
Input Type
N :IEC B5 / B14 Flange without Motor
V :IEC B5 / B14 Flange with Motor
T :Without Motor
Housing Size
Output Shaft Option
00 :Hollow Shaft Output
01 :Solid Output Shaft
02 :Solid Output Shaft and with Flange
03 :Flanged and Hollow Shaft Output
04 :With Double Shaft Output
05 :Double Flanged and Double Output Shaft
*06 :With Shaft Extension on the Motor Fan Cover Side
**07 :With Double Input Shaft
08: Double Flanged and Hollow Output Shaft
10 -100Nm
20 -200 Nm
30 -300 Nm
40 -400 Nm
Motor Size
For EV types
For EN Types
Pole Number
90S / 4
Frame Lenght
Motor size
A06 : 63 B5 A10 :100 B5 A20 : 200 B5
B06 : 63 B14 B10 :100 B14 A22 : 225 B5
A07 : 71 B5 A11 :112 B5 A25 : 250 B5
B07 : 71 B14 B11 :112 B14 A28 : 280 B5
A08 : 80 B5 A13 :132 B5 A31 : 315 B5
B08 : 80 B14 B13 :132 B14
A09 :90 B5 A16 :160 B5
B09 :90 B14 A18 :180 B5
EN050.00-07
ET050.00-07
E V 063 . 01 - 90S/4 - L05
E.030, E.040, E.050, E063, E.075, E.080, E.100, E.125.
