MECHANICAL INSTALLATION
35Dana IncorporatedIMM-0017EN - Installation and Maintenance Manual

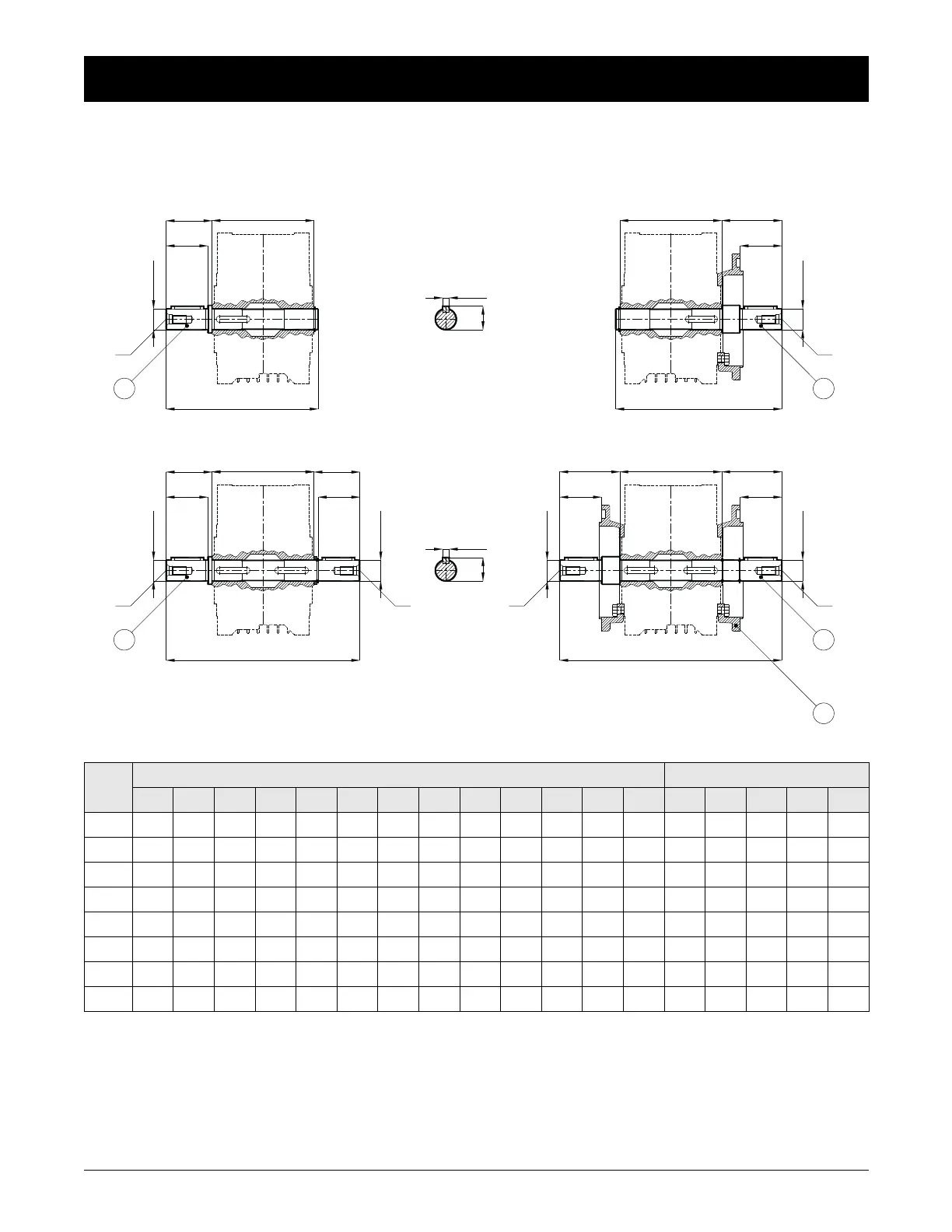

8.3 ADVISED SHAFT DIMENSIONS AND ACCESSIORIES
Advised shaft dimensions are indicated below and YILMAZ REDUKTOR provides this dimensions as standart.
Table 6:
Type
Mounting Dimensions Weight
d B B1 B2 B3 G1 L L1 L2 L3 M b1 t1 1 2 3 4 5
E.030.. 14 30 34 30 51,5 66 103 134 169 120.5 M5 5 16 0.18 0.20 0.35 0.27 0.15
E.040.. 18 40 44,5 40 66 82 130 171 214 151.5 M6 6 20.5 0.35 0.30 0.55 0.40 0.20
E.050.. 25 50 55 50 70,5 98 158 208 239 173 M10 8 28 0.70 0.50 0.90 0.60 0.30
E.063.. 25 50 55 50 72 122 182 232 266 199 M10 8 28 1.10 0.90 1.40 1.00 0.40
E.075.. 35 65 72 65 116 120 197 264 352 235 M12 10 38 2.10 1.50 3.15 1.90 0.70
E.080.. 35 65 72 65 103,5 133 210 277 340 241,5 M12 10 38 2.25 1.60 3.00 2.00 0.90
E.100.. 40 80 87 80 114 156 249 330 384 276 M16 12 43 5.10 3.90 6.50 4.50 3.65
E.125.. 45 100 107,5 100 142 185 300 400 469 335 M16 14 48,5 8.70 6.50 10.60 7.40 6.80
t1
b1
1
2 4
3
5
G1
B1
B
L
d
k6
M
MMM
M
d
k6
d
h6
d
h6
d
h6
d
h6
L2
L3
L1
B2
B3G1
G1
B1
B
G1
B1
B B2
B3G1
B2
B3
M
t1
b1
