DANA BREVINI E Series User Manual

PART LIST OF STANDARD TYPE GEAR UNITS
21Dana IncorporatedIMM-0017EN - Installation and Maintenance Manual
4.13 ET...05 TYPES
IMPORTANT:

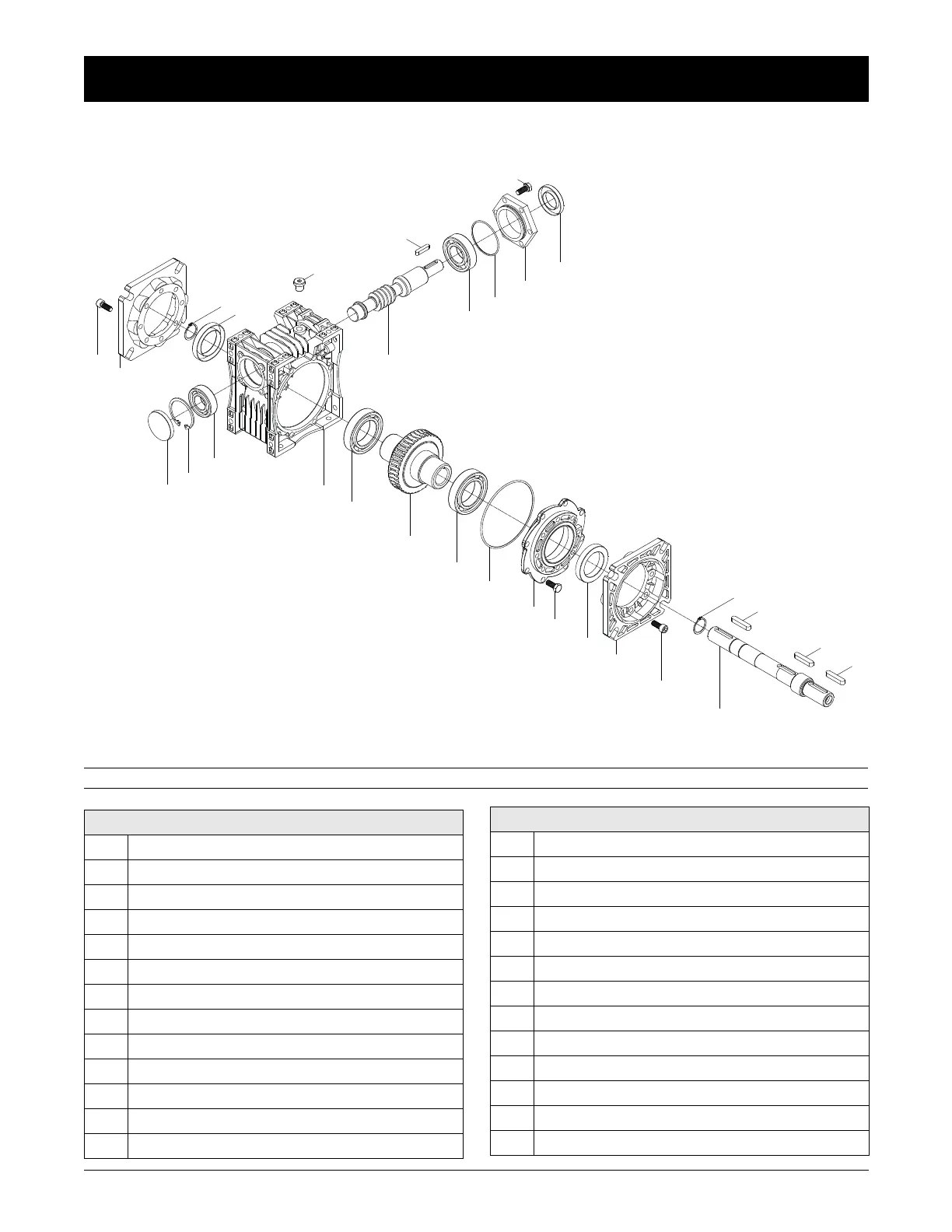

Standard ET...05... type basic part diagram. Parts may differ for special applications.
6
7
8
9
13
16
15
14
18
19
5
4
4
5
17
1
1
1
3
12
11
2
10
20
22
23
24
26
21
25
Standard Part List
1Key
2Solid Output Shaft
3Circlips
4Bolt
5Output Flange
6Seal
7Bolt
8Side Cover
9O-Ring
10 Bearing
11 Worm Wheel
12 Bearing
13 Housing
14 Closing Cap
15 Circlips
16 Bearing
17 Circlips
18 Seal
19 Oil Plug
20 Worm Gear
21 Key
22 Bearing
23 O-Ring
24 Input Flange
25 Bolt
26 Seal
Standard Part List
