15. Heating Element and Safety Thermostat
The heating element is located at the bottom of the sump. When the unit is energized during the heated wash cycle ,
it heats the water. The warmed air rises through the sump cover into the tub providing efficient washing and drying
of the dishes.
An inner resistance coil of nichrome wire, which does the actual heating, is completely surrounded by an electrical
insulation material. This assembly is protected by a metal sheath to help reduce damage and oxidation. Since you
can’t see the internal coil, in most cases you will have to rely on the ohm meter to determine the condition of the coil.
The safety thermostat acts as a temperature limit switch. If a malfunction causes the temperature rises above the
Limit of the thermostat, the heating element is disabled preventing damage to the dishwasher.
PROCEDURE
Inspecting and replacing: Heating element and thermostat

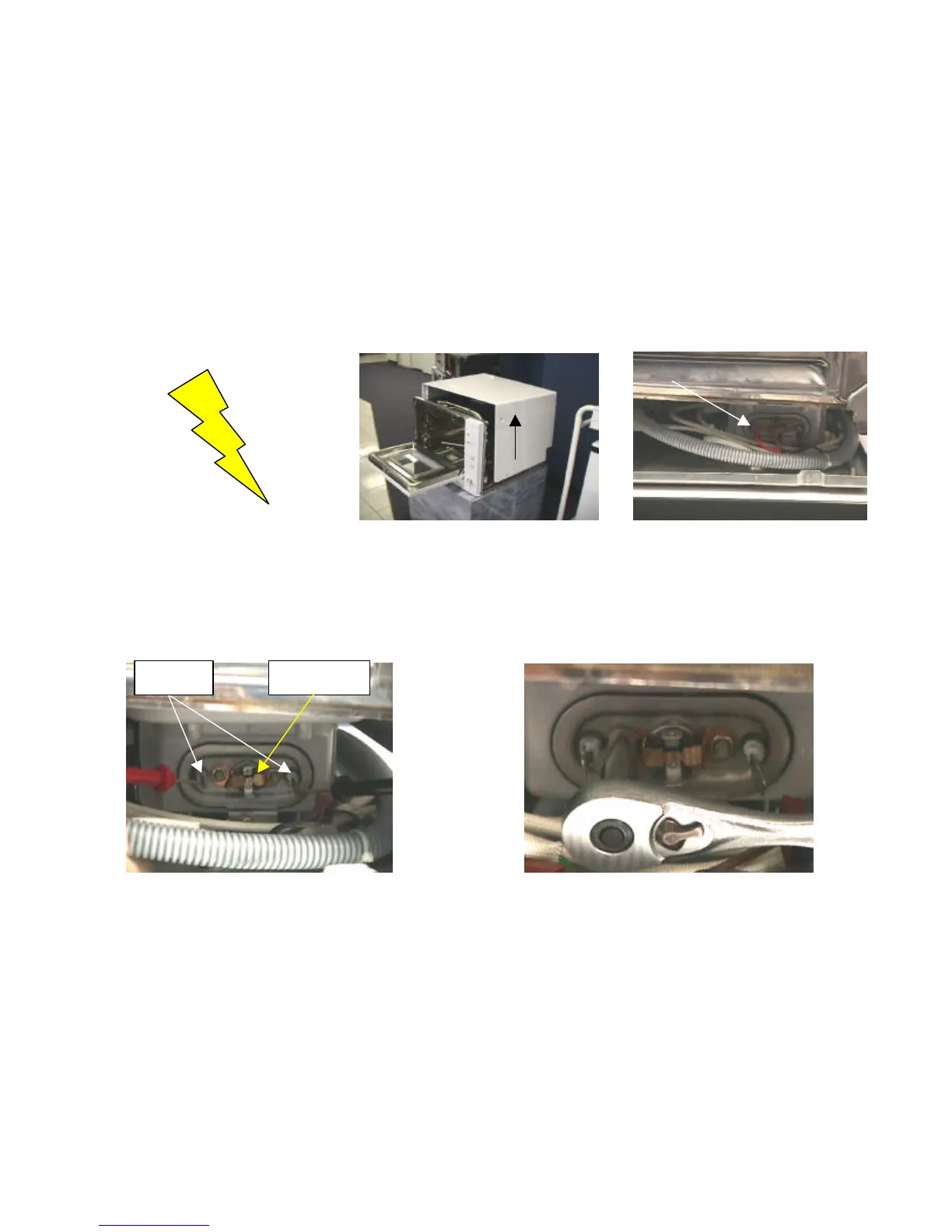

Step 1: Be sure all controls are Step 2: This procedure requires the Step 3: The heater and thermostat are
turned OFF. Disconnect power removal of the outer casing. If you located on the left side of the dish-
supply at distribution panel or are unfamiliar with this process, please. washer in the end of the sump.
unplug power cord from outlet. refer to procedure #7:Removing outer remove wires and inspect visually for
watch for sharp edges. casing.. burned or damaged connections.
Step 4: Using an ohm meter, remove the wires Step 5: To replace either componant, remove the two
And check for continuity through the element mounting nuts using a 8mm or 11/32 deepwell scocket.
And safety thermostat independently. If either Install new component and re assemble dishwasher.
component checks open,“no reading”, it is bad
and needs to be replaced.
20
Element Thermostat
