18. Rinse Agent Dispenser
The rinse agent dispenser on dishwashers automatically inject a small amount of liquid rinse agent into the
dishwasher during the final rinse cycle. This wetting solution acts to break down the surface tension of the water,
minimizing the formation of spots and streaks on dishes and glasses.
The dispenser tank holds about one month supply of agent. During the final rinse the timer activates a solenoid
on the dispenser assembly. The solenoid pulls up a rubber tipped valve pin allowing a small amount of agent to
be released into the tank where it is distributed by the action of the water.
PROCEDURE

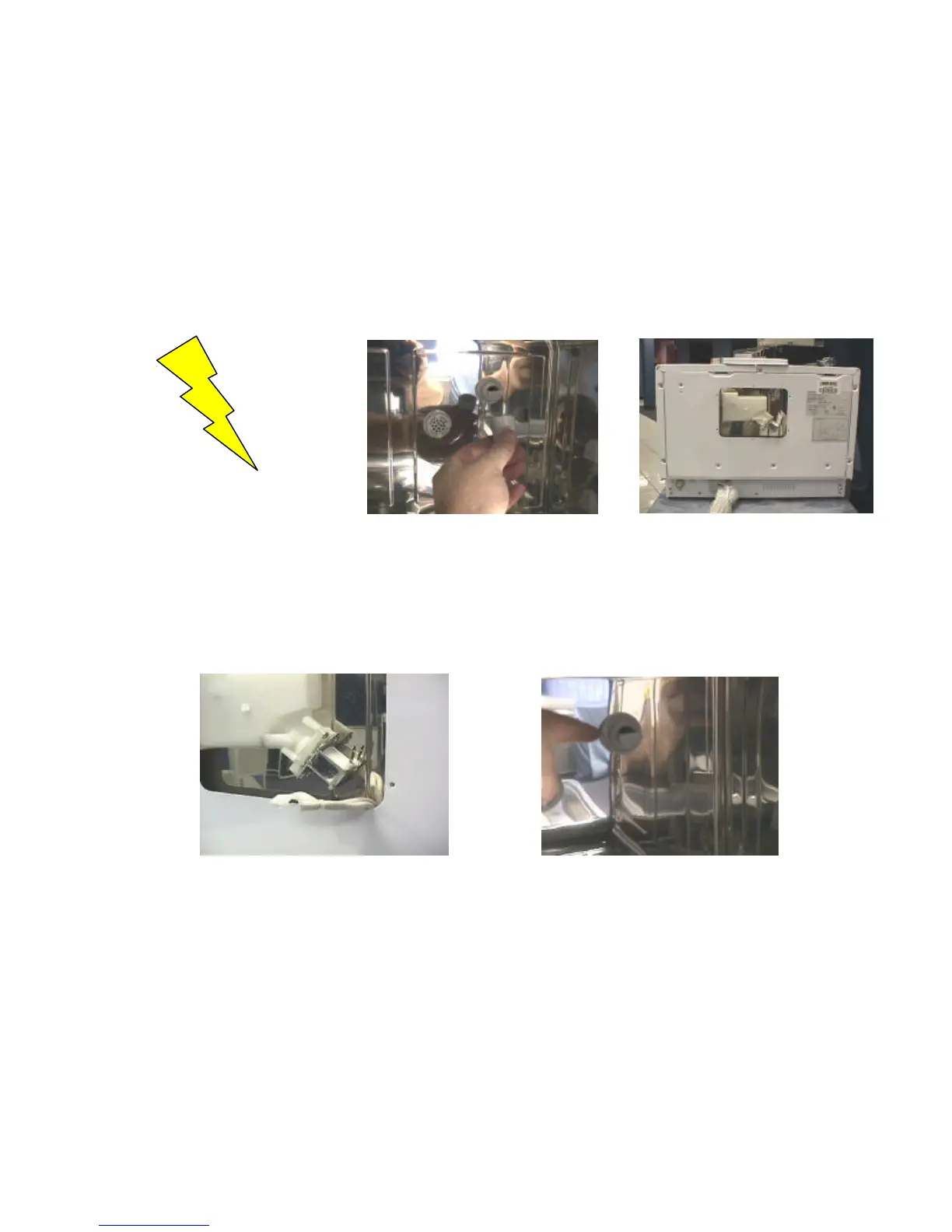

Inspecting and replacing: Rinse agent dispenser
Step 1: Be sure all controls are Step 2: If rinse agent is leaking inside, Step 3: Remove six screws and small
turned OFF. Disconnect power remove and inspect cap and washer. access cover on rear of dishwasher.
supply at distribution panel or reassemble wipe off tank and wait 5 Inspect tank for signs of leakage. If
unplug power cord from outlet. Minutes. If seepage still shows the tank is cracked or split, replace the
watch for sharp edges. replace the dispenser assembly. dispenser assembly.
Step 4: Check wiring connections and terminals. Step 5: To remove the dispenser assembly,
Replace or repair any faulty connections. remove the fill cap and mounting nuts from
Using an ohm meter check for solenoid for inside the tub. after the mounting nuts are
continuity. If the coil is open “no reading “ removed, the dispenser assembly con be
replace the coil. replaced from the access panel on rear.
23
