D&H PD05A - Locomotive Function Decoder Series; FH Series Locomotive Function Decoders

27
Fahrzeug-/Funktionsdecoder ab Firmware-Version 1.11
27
Locomotive/Locomotive function decoder from fi rmware version 3.12
FH05B (2
nd
generation)

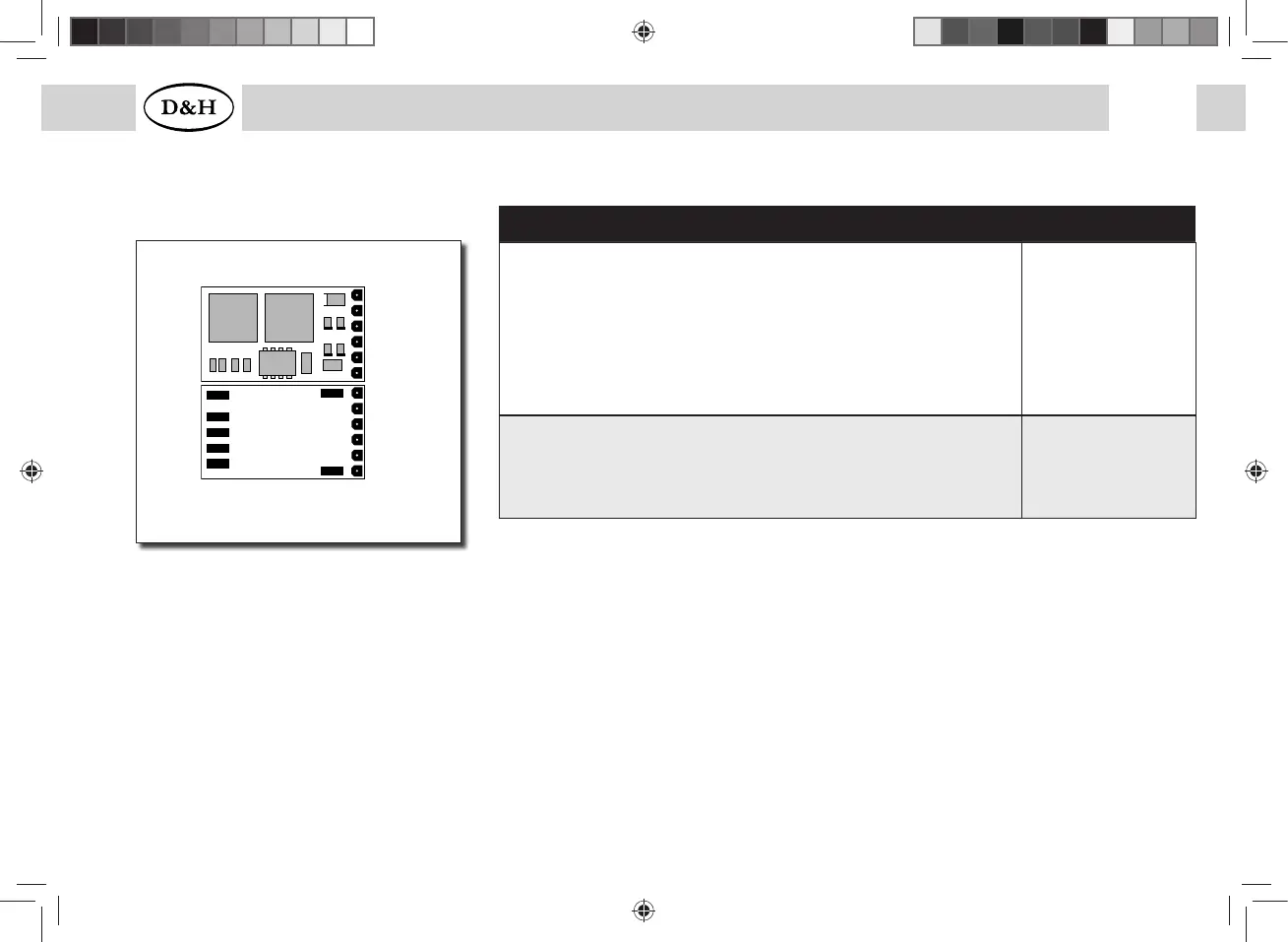

Specifi cations FH05B
Dimensions [mm]
Total load
Maximum operating voltage
Function outputs for light: LV, LR (dimmable)
Function outputs AUX1, AUX2 (dimmable)
Function outputs AUX3, AUX4, AUX5, AUX6
With SUSI interface (if AUX5/AUX6 deactivated)
after publication
0,5 A
30 V
each 150 mA
each 300 mA
unamplifi ed *)
X
Connecting options
Without connection wires
With ribbon cable for interface per NEM651
With connection wires
FH05B-0
FH05B-1
FH05B-3
*) Unamplifi ed function outputs: See supplement 3.
If necessary: Connect blue wire (common return
conductor) to VS.
You can connect a buffer capacitor to ZVS (+) and
GND (-).
G1, G2 ............... Track connection 1, 2
LV, LR ................Front light, rear light (each 150 mA)
AUX1, AUX2 .....Additional function 1, 2 (each 300 mA)
AUX3, AUX4 .....Unamplifi ed function 3, 4 *)
ZVS ...................SUSI supply voltage
ZCLK/AUX5 ...... SUSI clock (or AUX5 unamplifi ed) *)
ZDAT/AUX6 ......SUSI data (or AUX6 unamplifi ed) *)
GND ..................Ground (0 V)
LV
AUX2
AUX1
G1
G2
LR
GND
ZDAT / AUX6
ZCLK / AUX5
ZVS
AUX3
AUX4
VS
6 Locomotive function decoder
