Fahrzeug-/Funktionsdecoder ab Firmware-Version 1.11
6
Locomotive/Locomotive function decoder from fi rmware version 3.12
M1
M2
G1
G2
LV
LR

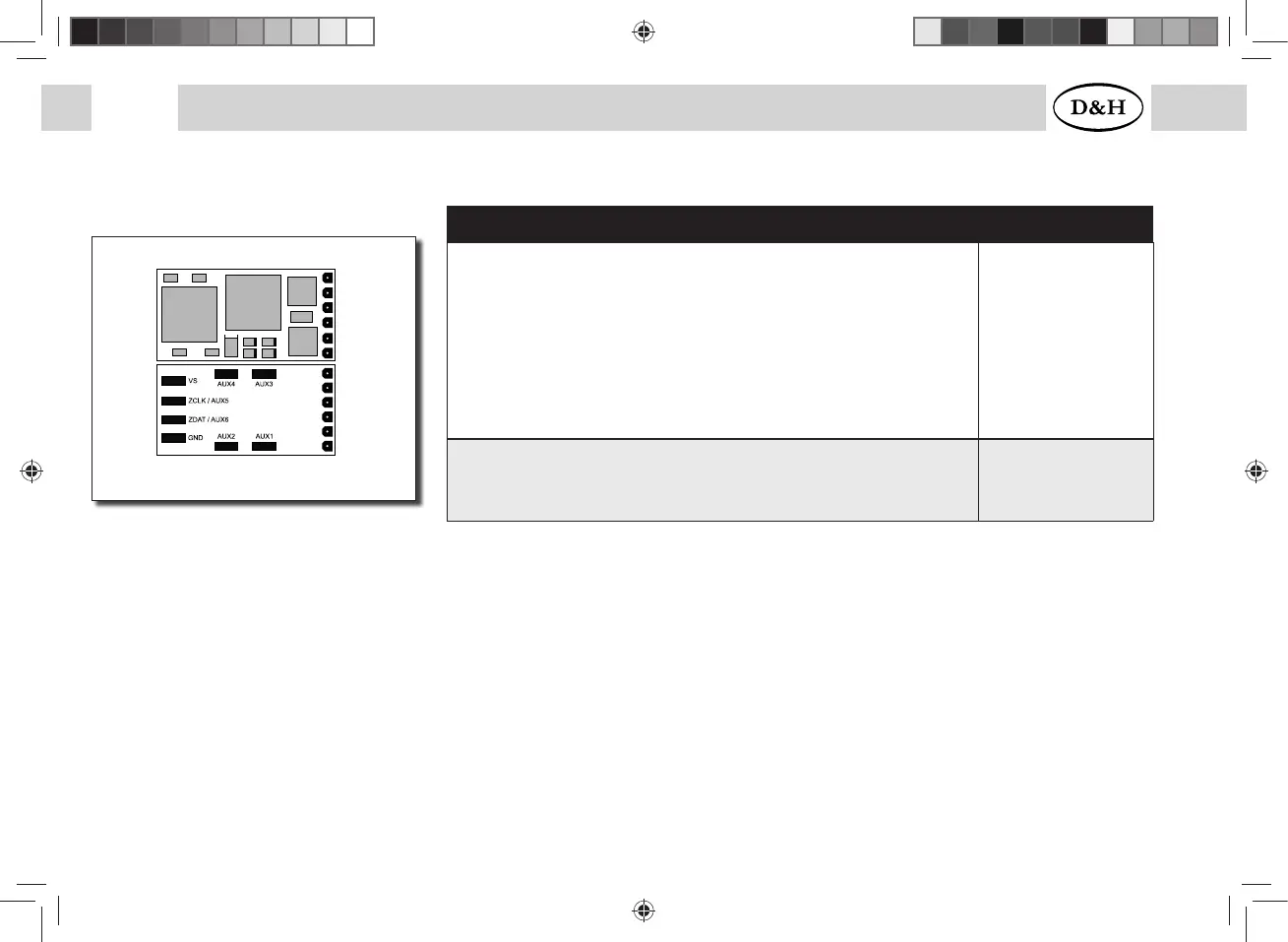

DH05C (2
nd
generation)
M1, M2 ..............Motor connection 1, 2
G1, G2 ............... Track connection 1, 2
LV, LR ................Front light, rear light (each 150 mA)
AUX1, AUX2 .....Additional function 1, 2 (each 300 mA)
AUX3, AUX4 .....Unamplifi ed function 3, 4 *)
VS ......................Supply voltage (also for SUSI)
ZCLK/AUX5 ...... SUSI clock (or AUX5 unamplifi ed) *)
ZDAT/AUX6 ......SUSI data (or AUX6 unamplifi ed) *)
GND ..................Ground (0 V)
If necessary: Connect blue wire (common return conductor) to VS.
You can connect a buffer capacitor to VS (+) and GND (-).
Specifi cations DH05C
Dimensions [mm]
Total load
Maximum motor current
Maximum operating voltage
Function outputs for light: LV, LR (dimmable)
Function outputs: AUX1, AUX2 (dimmable)
Function outputs: AUX3, AUX4, AUX5, AUX6
With SUSI interface (if AUX5/AUX6 deactivated)
after publication
0,5 A
0,5 A
30 V
each 150 mA
each 300 mA
unamplifi ed *)
X
Connecting options
Without connection wires
With connection wires
DH05C-0
DH05C-3
*) Unamplifi ed function outputs: See supplement 3.
5 Locomotive decoder
