Fahrzeug-/Funktionsdecoder ab Firmware-Version 1.11
7
Locomotive/Locomotive function decoder from fi rmware version 3.12
Specifi cations
DH10C
Dimensions [mm]
Total load
Maximum motor current
Maximum operating voltage
Function outputs for light: LV, LR (dimmable)
Function outputs: AUX1, AUX2 (dimmable)
Function outputs: AUX3, AUX4
Function outputs: AUX5, AUX6
With SUSI interface (if AUX5/AUX6 deactivated)
12,7 x 8,9 x 1,4
1,5 A
1,5 A
30 V
each 150 mA
each 300 mA
each 1,0 A
unamplifi ed *)
X
Connecting options
Without connection wires
With ribbon cable for interface per NEM651
With connection cable for interface per NEM651
With connection wires
6 pin connector for direct plugging (NEM651)
DH10C-0
DH10C-1
DH10C-2
DH10C-3
DH10C-4
*) Unamplifi ed function outputs: See supplement 3.
M1
M2
G1
G2
LV
LR

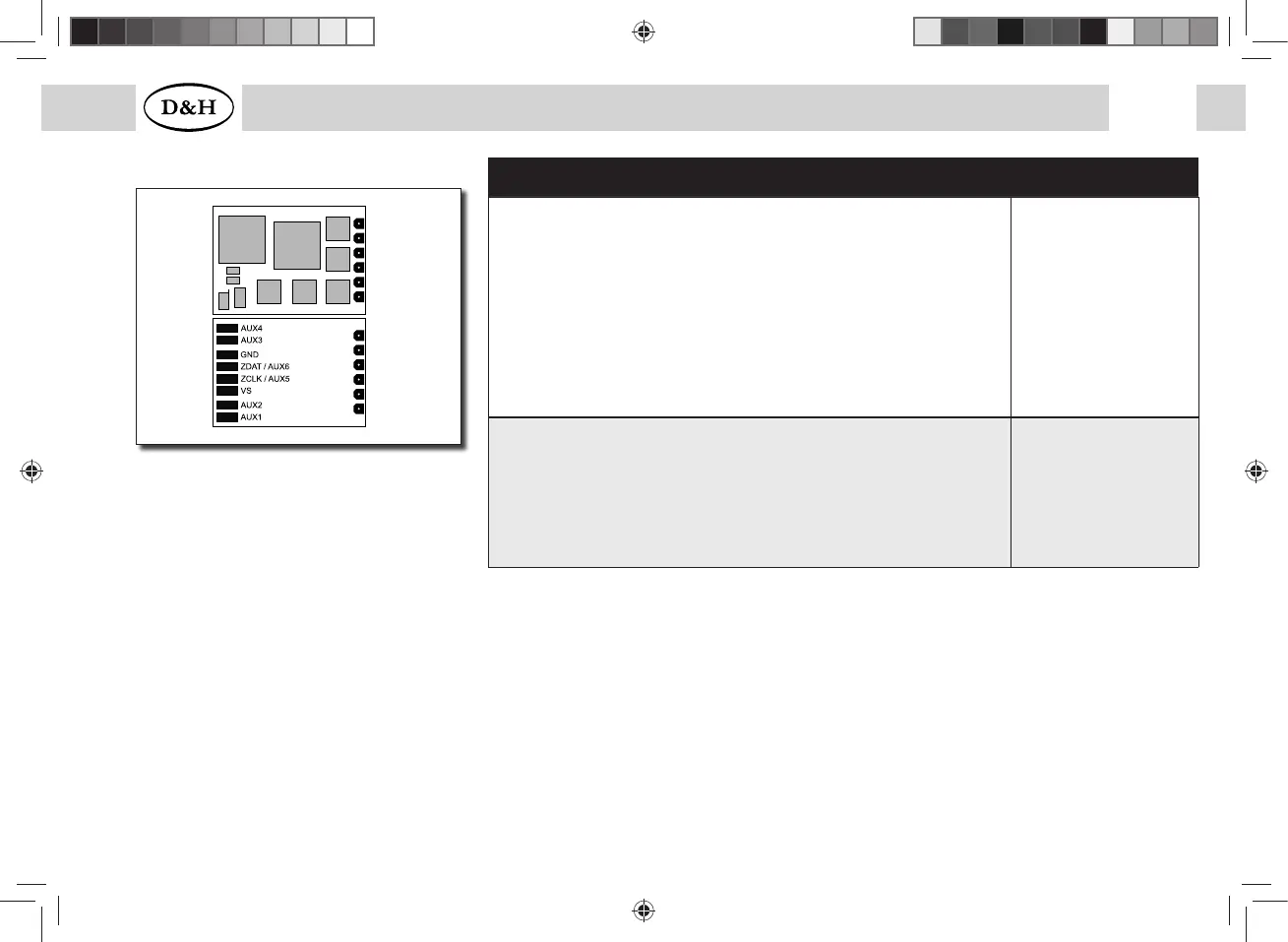

DH10C (2
nd
generation)
M1, M2 .............. Motor connection 1, 2
G1, G2 ............... Track connection 1, 2
LV, LR ................ Front light, rear light (each 150 mA)
AUX1, AUX2 ..... Additional function 1, 2 (each 300 mA)
AUX3, AUX4 ..... Unamplifi ed function 3, 4 (each 1,0 A)
VS ...................... Supply voltage (also for SUSI)
ZCLK/AUX5 ...... SUSI clock (or AUX5 unamplifi ed) *)
ZDAT/AUX6 ...... SUSI data (or AUX6 unamplifi ed) *)
GND .................. Ground (0 V)
If necessary: Connect blue wire (common return conductor) to VS.
You can connect a buffer capacitor to VS (+) and GND (-).
