8
Fahrzeug-/Funktionsdecoder ab Firmware-Version 1.11
8
Locomotive/Locomotive function decoder from fi rmware version 3.12

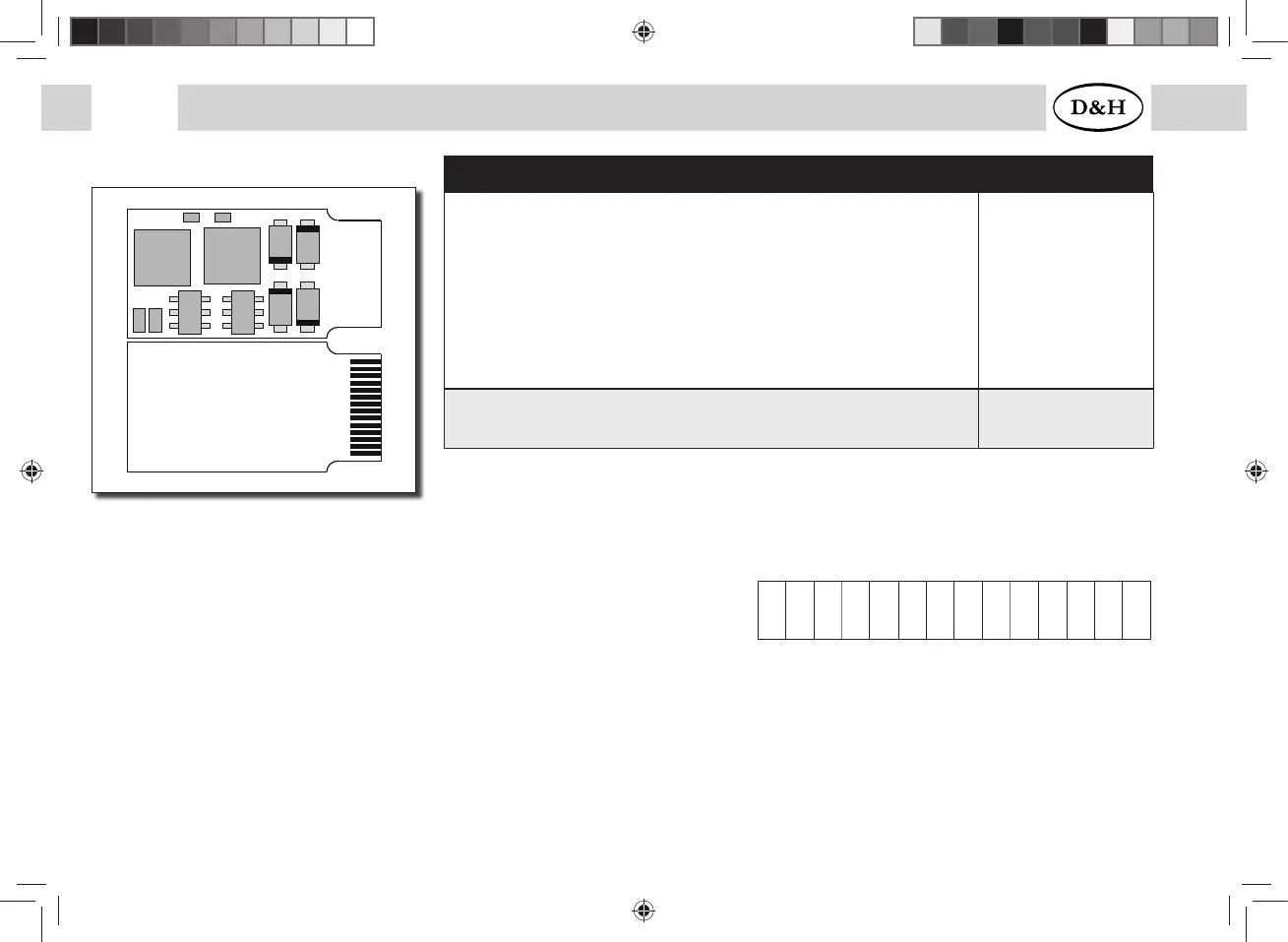

DH14B
Specifi cations DH14B
Dimensions [mm]
Total load
Maximum motor current
Maximum operating voltage
Function outputs for light: LV, LR (dimmable)
Function outputs: AUX1, AUX2 (dimmable)
Function outputs: AUX3, AUX4
With SUSI interface (if AUX3/AUX4 deactivated)
18,5 x 9,2 x 1,7
1,0 A
1,0 A
30 V
each 150 mA
each 300 mA
unamplifi ed *)
X
Connecting options
14 pole foil plug for direct plugging (mTc14)
DH14B
*) Unamplifi ed function outputs: See supplement 3.
mTc14 interface
1
2
3
4
5
6
7
8
9
10
11
12
13
14
G2
G2
LV
AUX2
ZDAT
GND
M2
M1
GND
ZCLK
AUX1
LR
G1
G1
M1, M2 ..............Motor connection 1, 2
G1, G2 ............... Track connection 1, 2
LV, LR ................Front light, rear light (each 150 mA)
AUX1, AUX2 .....Additional function 1, 2 (each 300 mA)
ZCLK ..................SUSI clock (or AUX3 unamplifi ed) *)
ZDAT .................SUSI data (or AUX4 unamplifi ed) *)
GND ..................Ground (0 V)
There is no connection possibility (VS) for the common return conductor (blue wire) or a buffer capacitor.
