Fahrzeug-/Funktionsdecoder ab Firmware-Version 1.11
9
Locomotive/Locomotive function decoder from fi rmware version 3.12

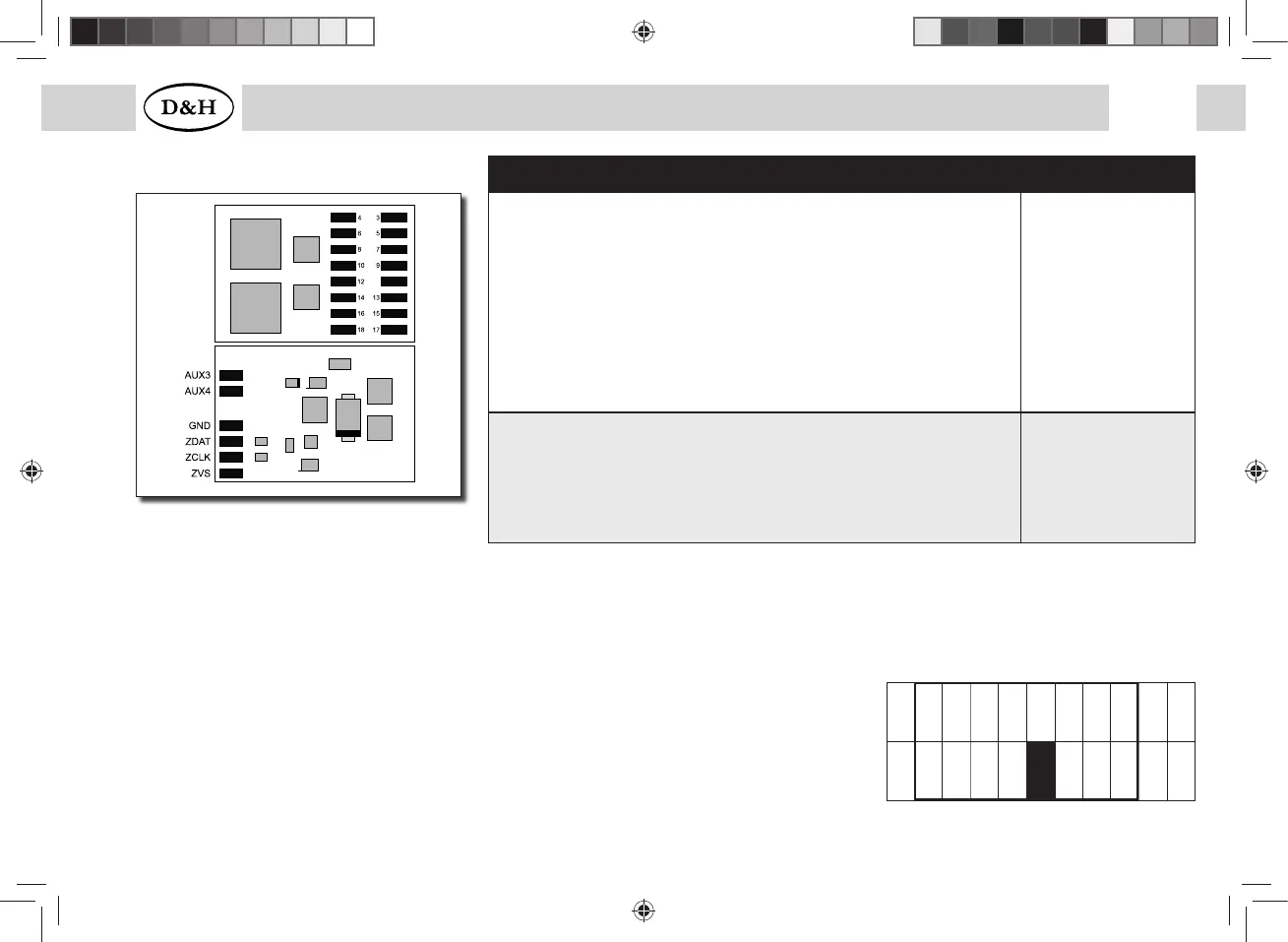

DH16A (2
nd
generation)
PluX16 interface
1 2
3 4
5 6
7 8
9 10
11 12
13 14
15 16
17 18
19 20
21 22
ZCLK
GND
LV
VS
Index
LR
--
--
ZDAT
ZVS
M1
M2
G1
G2
AUX1
AUX2
M1, M2 ..............Motor connection 1, 2
G1, G2 ............... Track connection 1, 2
LV, LR ................Front light, rear light (each 150 mA)
AUX1, AUX2 .....Additional function 1, 2 (each 300 mA)
AUX3, AUX4 .....Additional function 3, 4 (each 1,0 A)
VS ......................Supply voltage
ZVS ...................SUSI supply voltage
ZCLK ..................SUSI clock (or AUX5 unamplifi ed) *)
ZDAT .................SUSI data (or AUX6 unamplifi ed) *)
GND ..................Ground (0 V)
If necessary: Connect blue wire (common return conductor) to VS.
You can connect a buffer capacitor to ZVS (+) and GND (-).
Specifi cations DH16A
Dimensions [mm]
Total load
Maximum motor current
Maximum operating voltage
Function outputs for light: LV, LR (dimmable)
Function outputs: AUX1, AUX2 (dimmable)
Function outputs: AUX3, AUX4
Function outputs: AUX5, AUX6
With SUSI interface (if AUX5/AUX6 deactivated
after publication
1,5 A
1,5 A
30 V
each 150 mA
each 300 mA
each 1,0 A
unamplifi ed *)
X
Connecting options
Without connection wires
With connection cable for interface per NEM652
With connection wires
16 pin connector for direct plugging (PluX16)
DH16A-0
DH16A-2
DH16A-3
DH16A-4
*) Unamplifi ed function outputs: See supplement 3.
