Fahrzeug-/Funktionsdecoder ab Firmware-Version 1.11
10
Locomotive/Locomotive function decoder from fi rmware version 3.12

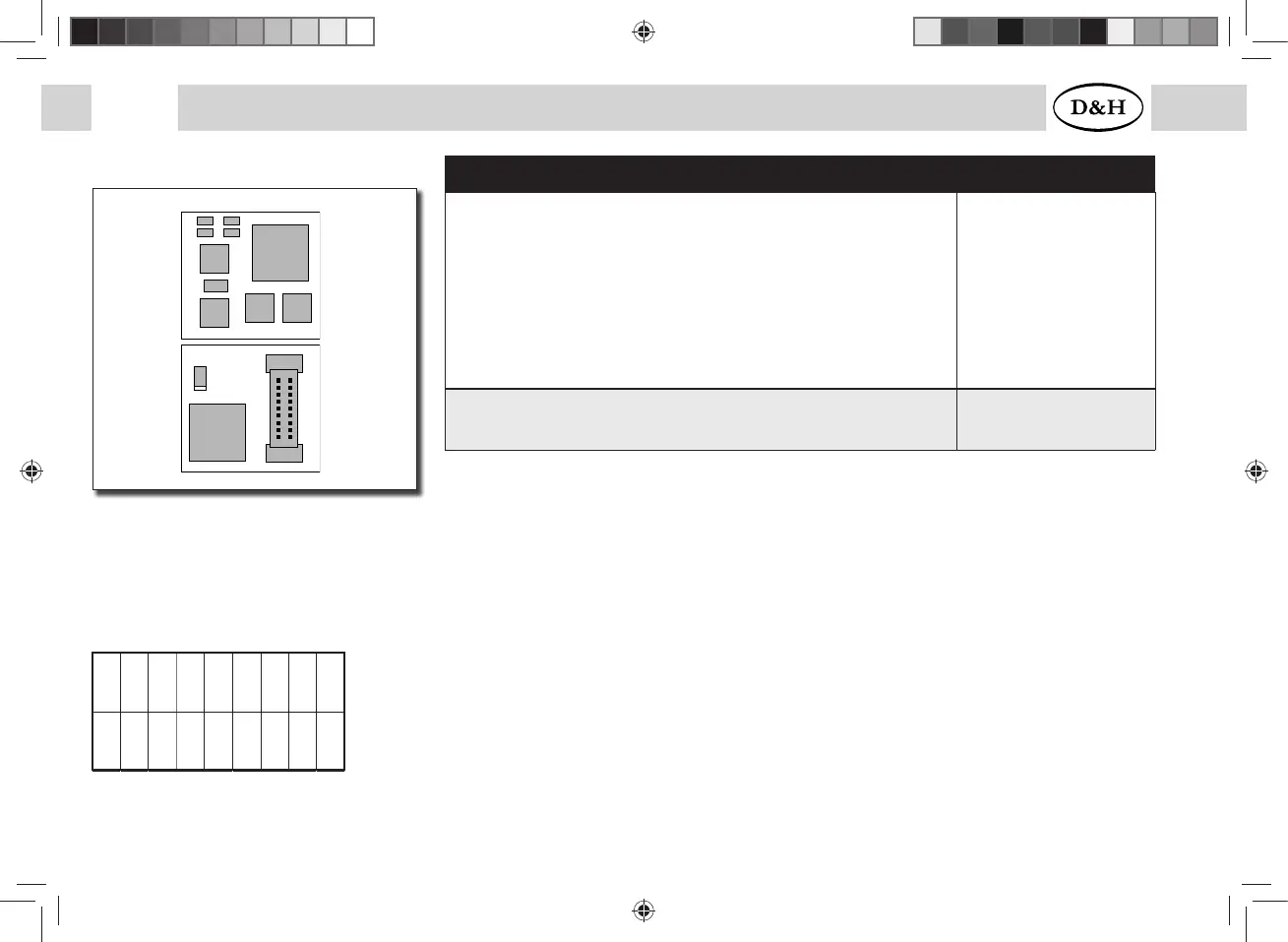

DH18A (2
nd
generation)
Next18 interface
1 18 2 17 3 16 4 15 5 14 6 13 7 12 8 11 9 10
G1
M1
AUX1
ZCLK
GND
VS
*) AUX6
LV
G2
G1 LR AUX5 *) VS GND ZDAT AUX2 M2 G2
Specifi cations DH18A
Dimensions [mm]
Total load
Maximum motor current
Maximum operating voltage
Function outputs for light: LV, LR (dimmable)
Function outputs: AUX1, AUX2 (dimmable)
Function outputs: AUX3, AUX4, AUX5, AUX6
With SUSI interface (if AUX3/AUX4 deactivated)
9,7 x 8,9 x 2,8
1,5 A
1,5 A
30 V
each 150 mA
each 300 mA
unamplifi ed *)
X
Connecting options
18 pin connector for direct plugging (Next18)
DH18A
*) Unamplifi ed function outputs: See supplement 3.
M1, M2 ...............Motor connection 1, 2
G1, G2 ................Track connection 1, 2
LV, LR .................Front light, rear light (each 150 mA)
AUX1, AUX2 ......Additional function 1, 2 (each 300 mA)
AUX5, AUX6 ......Unamplifi ed function 5, 6 *)
VS .......................Supply voltage (also for SUSI)
ZCLK ...................SUSI clock (or AUX3 unamplifi ed) *)
ZDAT ..................SUSI data (or AUX4 unamplifi ed) *)
GND ...................Ground (0 V)
If necessary: Connect blue wire (common return conductor) to VS.
You can connect a buffer capacitor to VS (+) and GND (-).
1
2
3
4
5
6
7
8
910
11
12
13
14
15
16
17
18
