11
Fahrzeug-/Funktionsdecoder ab Firmware-Version 1.11
11
Locomotive/Locomotive function decoder from fi rmware version 3.12
GND
ZDAT
ZCLK
ZVS

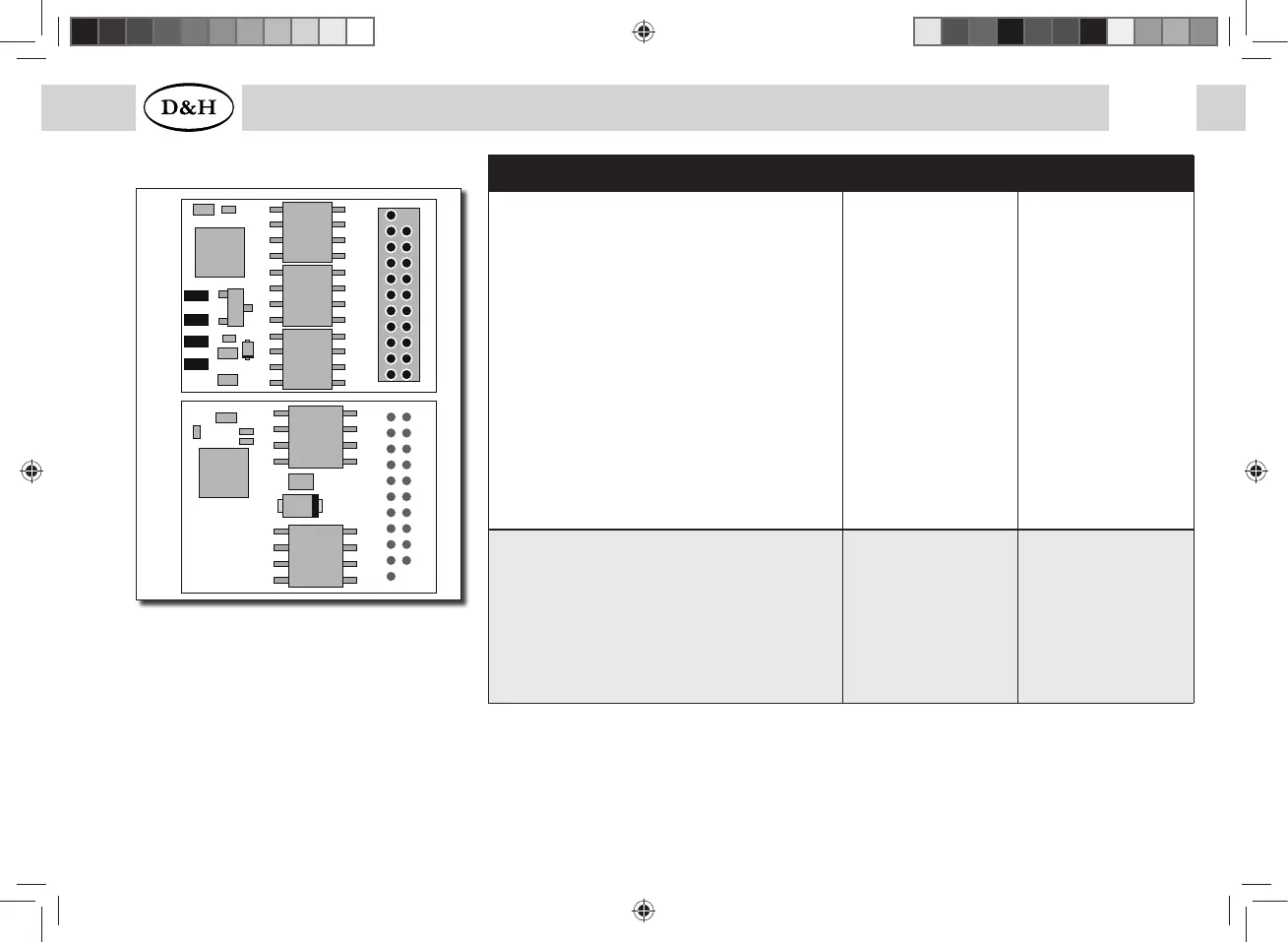

DH21A (2
nd
generation)
Specifi cations DH21A-0/2/3/4 DH21A-5
Dimensions [mm]
Total load
Maximum motor current
Maximum operating voltage
Switching voltage at AC analog:
Max. 45 V peak = 30 V eff.
Function outputs for light: LV, LR
(dimmable)
Function outputs: AUX1, AUX2
(dimmable)
Function outputs: AUX3, AUX4
Function outputs: AUX5, AUX6
With SUSI interface
(if AUX5/AUX6 deactivated)
20,7 x 15,8 x 5,2
2,0 A
2,0 A
30 V
X
each 150 mA
each 300 mA
each 1,0 A
unamplifi ed *)
X
20,7 x 15,8 x 5,2
2,0 A
2,0 A
30 V
X
each 150 mA
each 300 mA
unamplifi ed *)
unamplifi ed *)
X
Connecting options
Without connection wire
With connection cable for
interface per NEM652
With connection wires
21 pin socket board for
direct plugging (mTc21)
DH21A-0
DH21A-2
DH21A-3
DH21A-4 DH21A-5
*) Unamplifi ed function outputs: See supplement 3.
