Fahrzeug-/Funktionsdecoder ab Firmware-Version 1.11
29
Locomotive/Locomotive function decoder from fi rmware version 3.12
Specifi cations

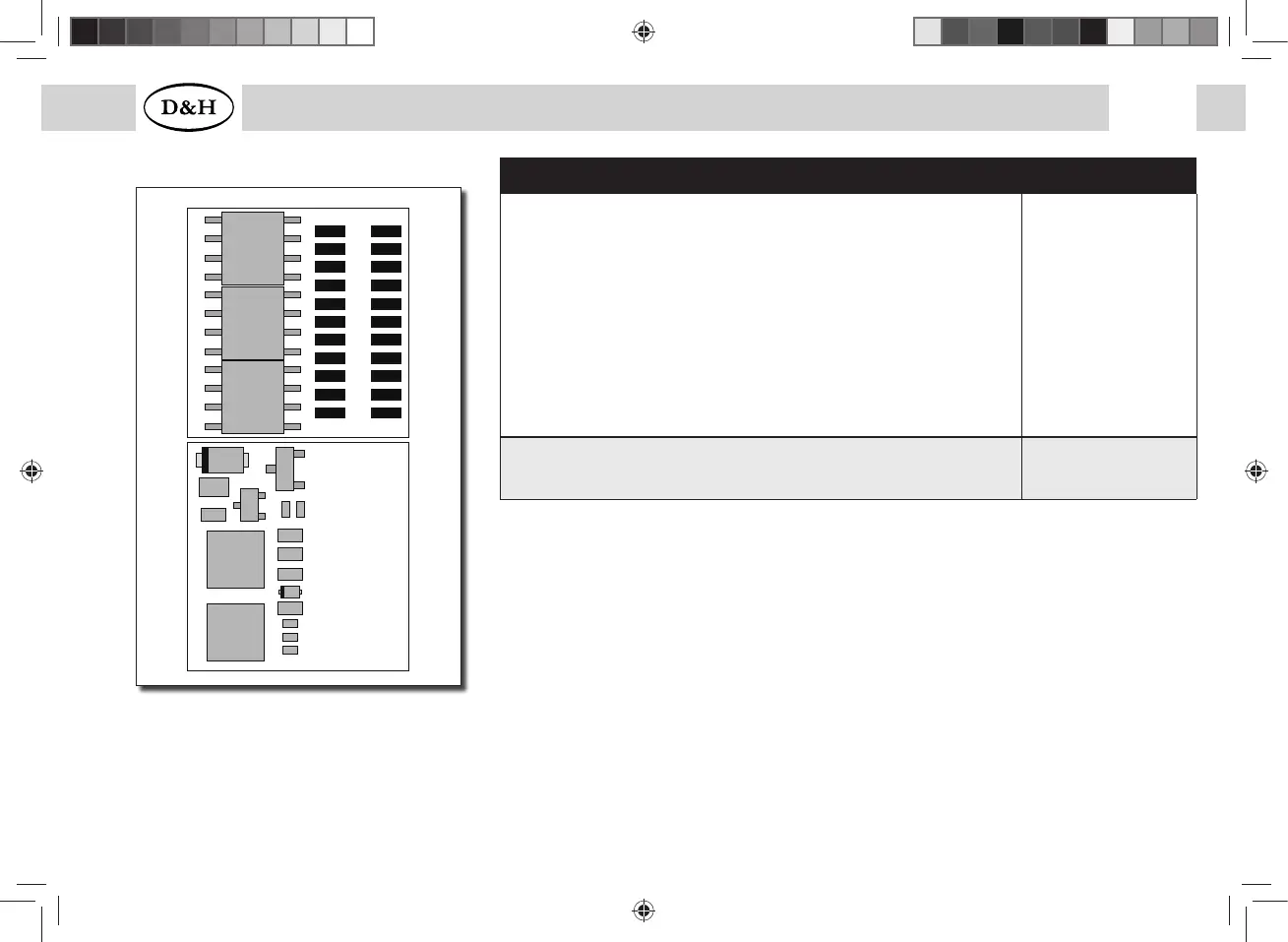

FH22A
Dimensions [mm]
Total load
Maximum operating voltage
Switching voltage at AC analog:
Max. 45 V peak = 30 V eff.
LV, LR (dimmable)
AUX1, AUX2 (dimmable)
AUX3, AUX4
AUX5, AUX6
With SUSI interface (if AUX5/AUX6 deactivated)
16,1 x 15,8 x 3,3
2,0 A
30 V
X
each 150 mA
each 300 mA
each 1,0 A
unamplifi ed *)
X
Connecting options
22 pin connector for direct plugging (PluX22)
FH22A-4
*) Unamplifi ed function outputs: See supplement 3.
2
4
6
8
10
12
14
16
18
20
22
1
3
5
7
9
12
13
15
17
19
21
FH22A
