9.1.3 External inputs
The Lyra can sum two external inputs to the CRM buss. The sources for the external busses can be
selected by using the web server.
9.1.4 Program/Sub/Aux/CRM outputs
The Lyra is a very intuitive mixer which is very similar to analog mixing consoles. Therefore you also have
all common outputs in the analog domain. That means you can directly hook up your equipment. Below
you see a picture of the connections available.

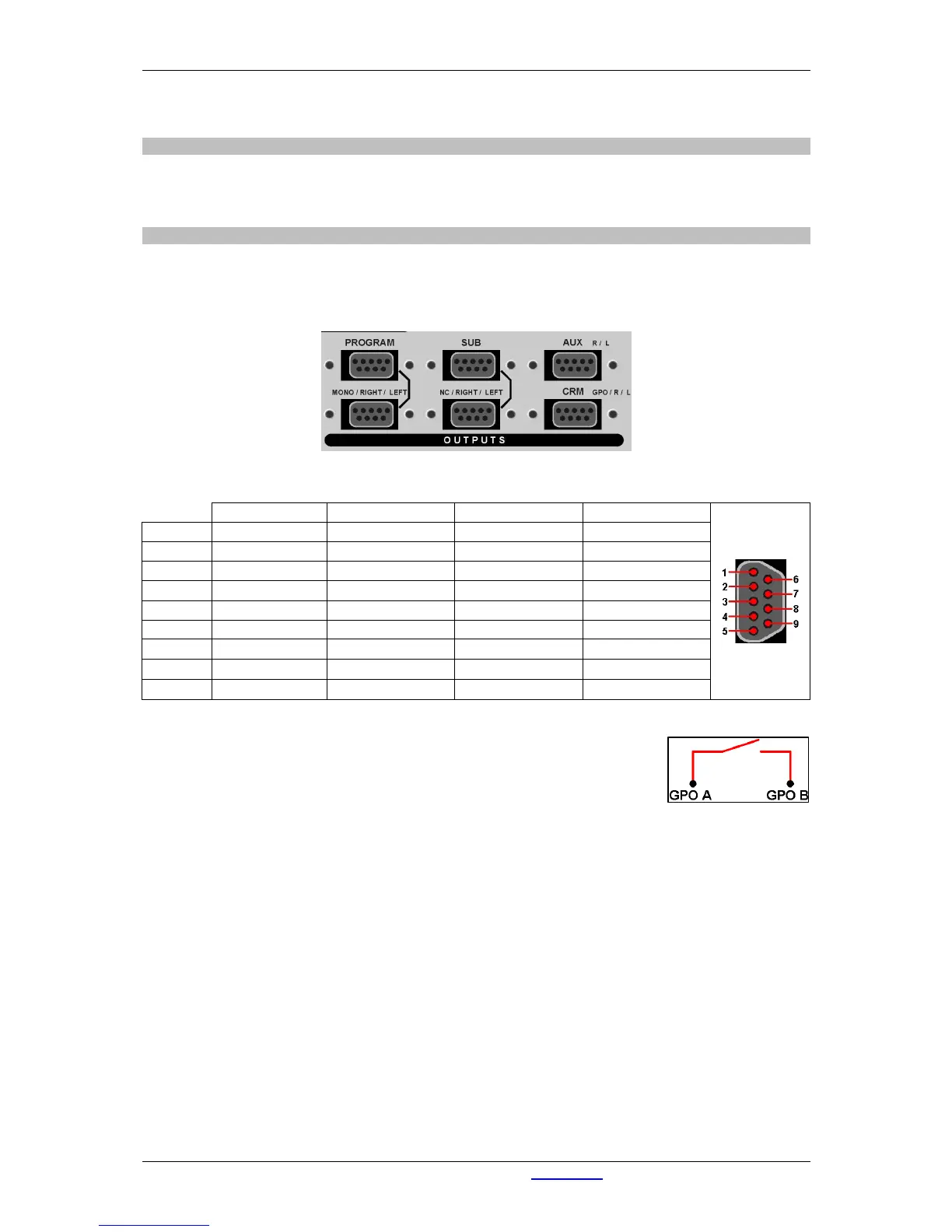

Figure 10: Program/Sub/Aux/CRM outputs at rear side
PROGRAM SUB AUX CRM
Pin 1 Left OUT + Left OUT + Left OUT + Left OUT +
Pin 6 Left OUT - Left OUT - Left OUT - Left OUT -
Pin 2 GND GND GND GND
Pin 7 Right OUT + Right OUT + Right OUT + Right OUT +
Pin 3 Right OUT - Right OUT - Right OUT - Right OUT -
Pin 8 GND GND GND GND
Pin 4 Mono OUT + Not Connected Not Connected GPO A
Pin 9 Mono OUT - Not Connected Not Connected GPO B
Pin 5 GND Not Connected GND Not Connected
Table 5: Pinning for PROGRAM, SUB, AUX and CRM
GPO-A and GPO-B make connection if the GPO is activated!
Maximum current: 200 mA
Maximum resistance when connection made: 12 Ohm
Maximum Voltage: 24 V
