D&R Lyra - Figure 11: Phones Output at 19 Rack; Phones Outputs

Hardware Connections
Lyra Digital Mixer from D&R Phone +31 294 418014, email: info@d-r.nl Page 23
9.1.5 Phones outputs
For easy and versatile monitoring there are two headphones outputs implemented on the Lyra. On the
control surface the phones is directly connected to the CRM buss. On the surface itself you have a level
control for the phones.
Below you see the phones connector, which is located at the front side of the 19” rack. This phones
connection can be used for example as a studio phones output. With the remote software you can select
the source for the studio phones.

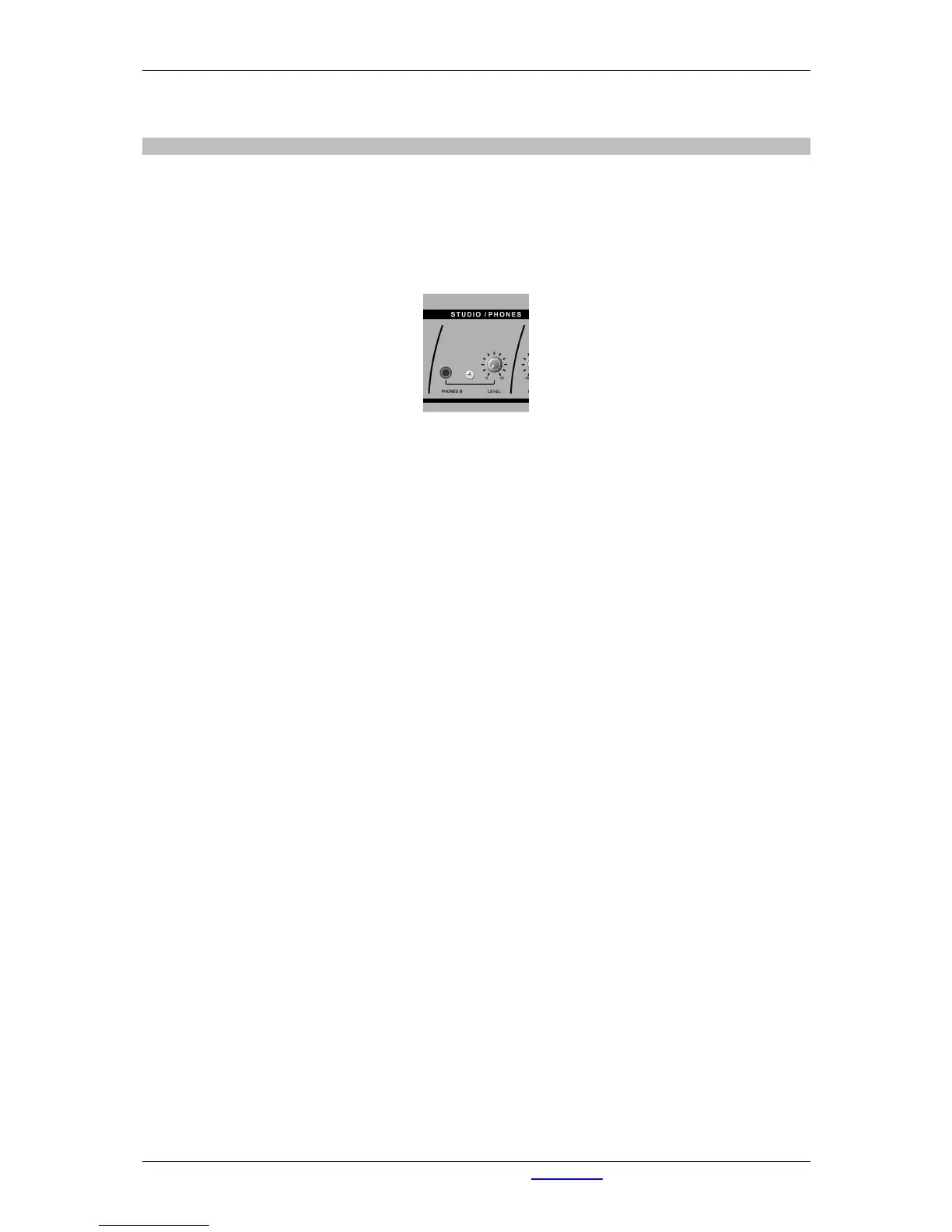

Figure 11: Phones output at 19" rack
