Hardware Connections
Lyra Digital Mixer from D&R Phone +31 294 418014, email: info@d-r.nl Page 24
9.2 Digital Inputs/Outputs
The Lyra holds 7 digital inputs and outputs. At the rear side of the 19” rack you will find digital I/O 1-6
and at the front side is Digital I/O 7 located. The digital inputs at the rear side can receive either Coax
(SPDIF) or XLR (AES3) digital audio.

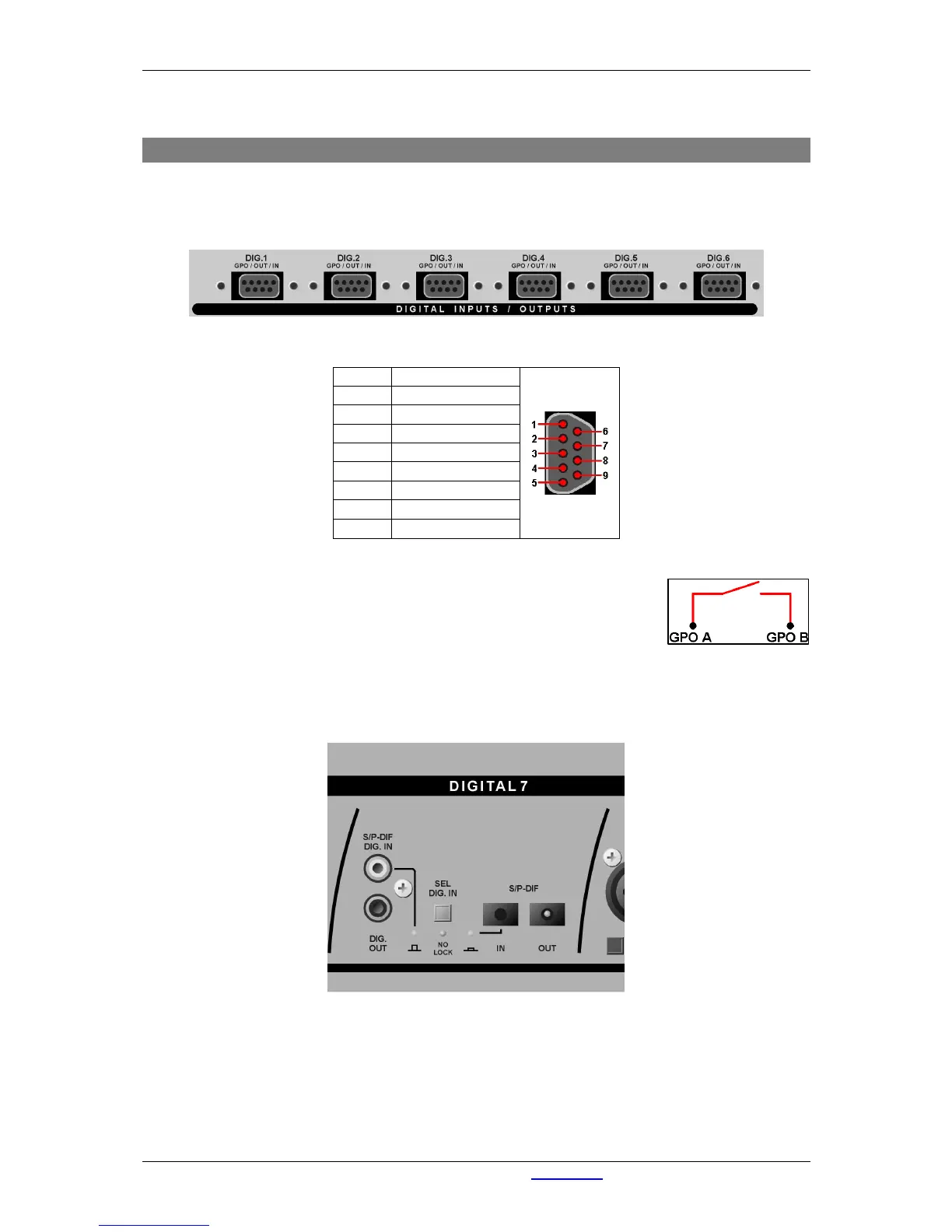

Figure 12: Digital Input/Output at rear side
Pin 1 RX IN +
Pin 6 RX IN -
Pin 2 GND
Pin 7 TX OUT +
Pin 3 TX OUT -
Pin 8 GND
Pin 4 GPO A
Pin 9 GPO B
Pin 5 Not Connected
Table 6: Pinning Dig I/0 1..6
GPO-A and GPO-B make connection if the GPO is activated!
Maximum current: 200 mA
Maximum resistance when connection made: 12 Ohm
Maximum Voltage: 24 V
Below you see the layout of the front side digital input. You can choose which type of digital audio
connection you want to use as input: Coax or Optical. The switch in between controls this selection. The
LED's will show which type is used and if a valid digital audio signal is received (NO LOCK led is off when
signal is valid).
Figure 13: Digital Input/Output at Front side
