11.5.2 GPO 1 to 6
The GPO sends trigger-signals to other devices.

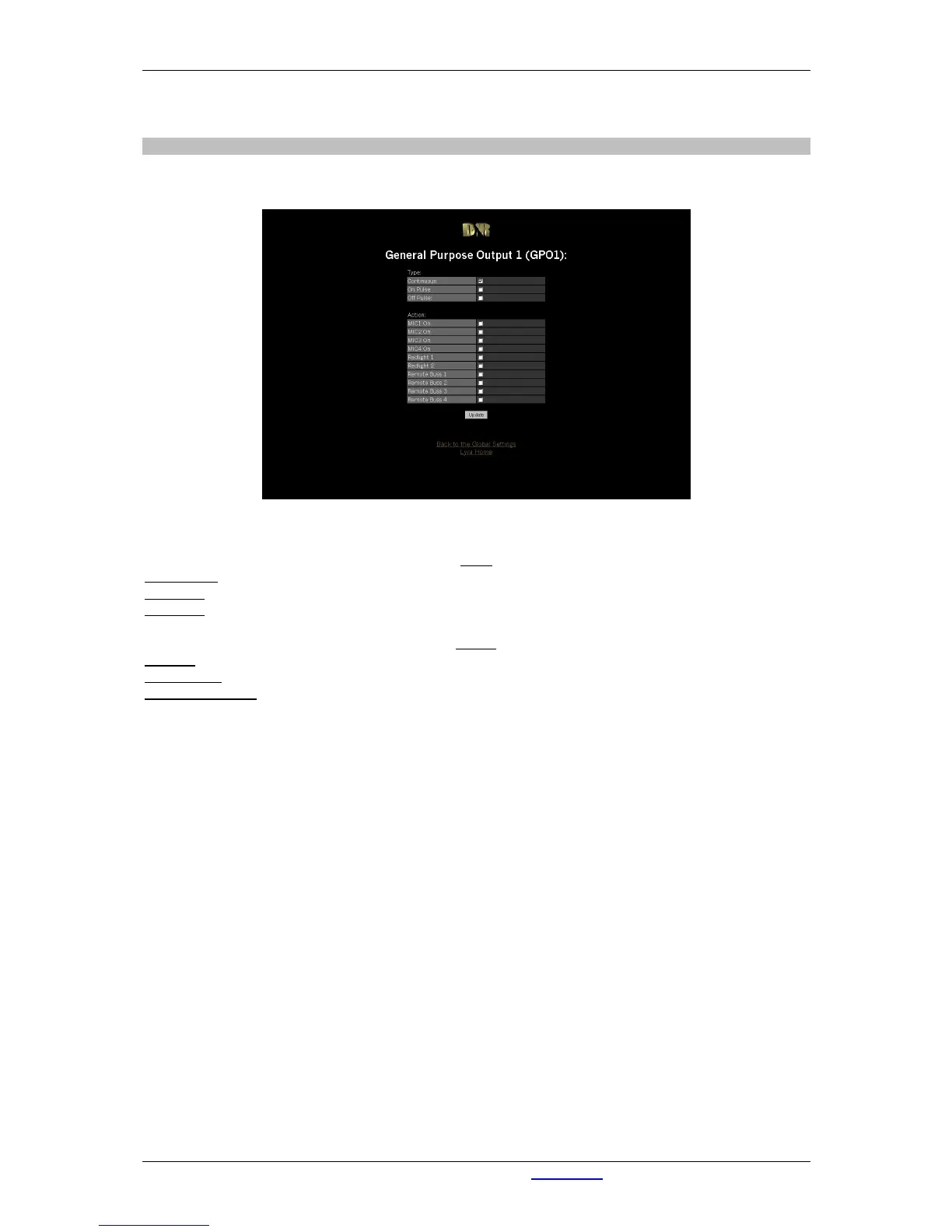

Figure 29: General Purpose Output (GPO)
Type
Continuous
GPO is the action state. (If action redlight is active, GPO is active)
On Pulse
GPO pulses when action becomes active
Off Pulse
GPO pulses when action becomes inactive
Action
MIC1..4
The activation of MIC1..4 triggers the GPO
Redlight1..2
The activation of Redlight1..2 triggers the GPO
RemoteBuss 1..4
The activation of Remote Buss 1..4 triggers the GPO
