Danfoss 51 Series Repair Instructions

10. Press shaft assembly out of bearing housing, taking care to not damage the shaft, piston sockets, and
speed sensor ring (if installed).

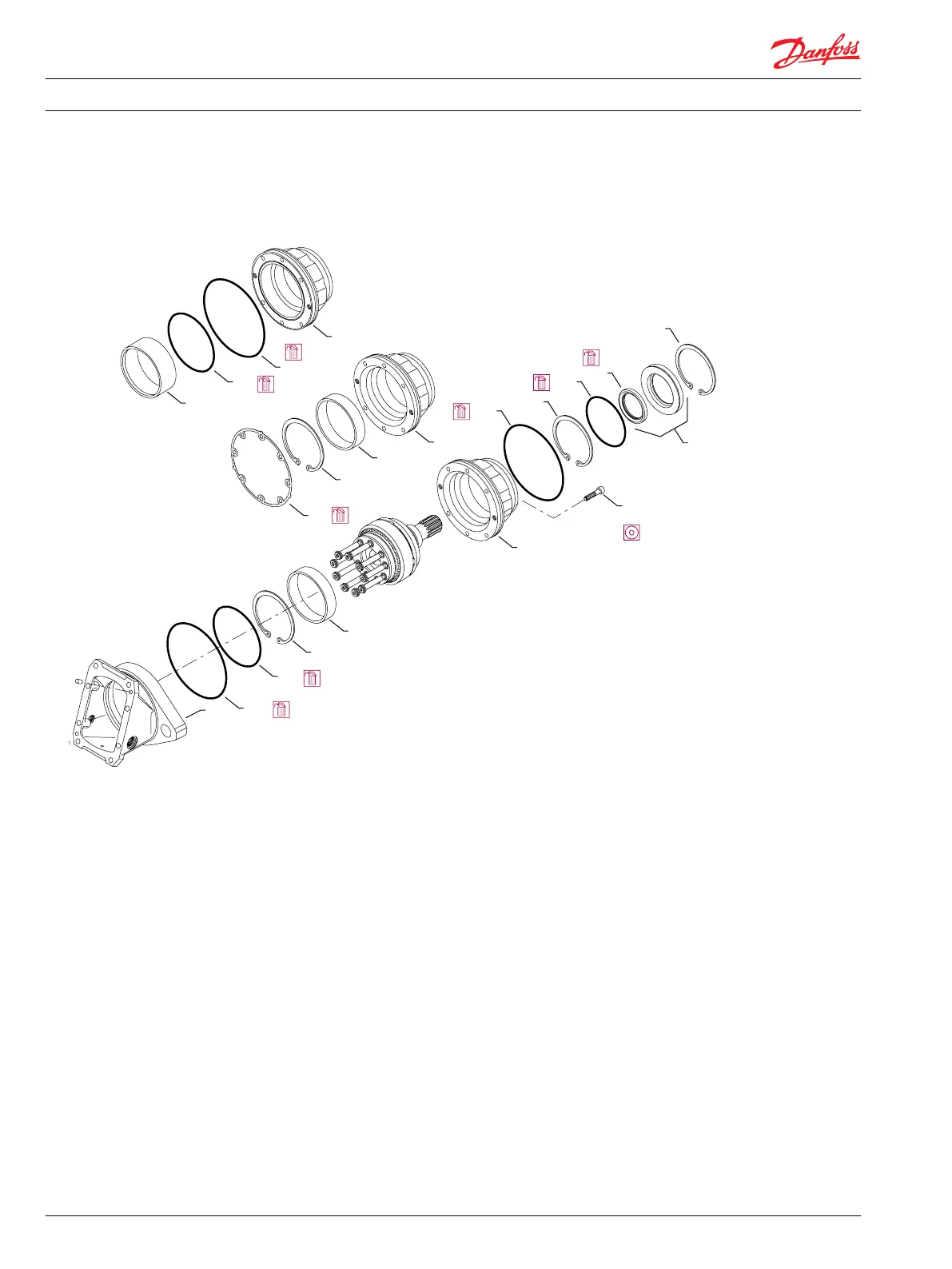

Shaft assembly, cartridge version
B10
L82
L81
L95
L35
N94-42
thru
N98-32
L90
L85
L95
L35
Prior to
N94-42
L40
L50
B80
L90
L85
L70
L80
L80
L750
L35
L95
L81
N98-33
and beyond
P104 088
060 and 080: 6mm
110: 8mm
160: 10mm
250: 12mm
Endcap disassembly
060 frame
1. Remove end cap plug (G80). Remove O-ring (G80A) from plug; discard.
2. Remove lock screws (F28) from servo piston (F12).
3. Remove cone-point set screws (F26) from servo piston.
4. Remove feedback fork (F30) through the hole in the end cap.
Repair Instructions
Series 51 and 51-1 Bent Axis Motors Repair Instructions
Disassembly
12 11009449 • Rev BA • December 2014
