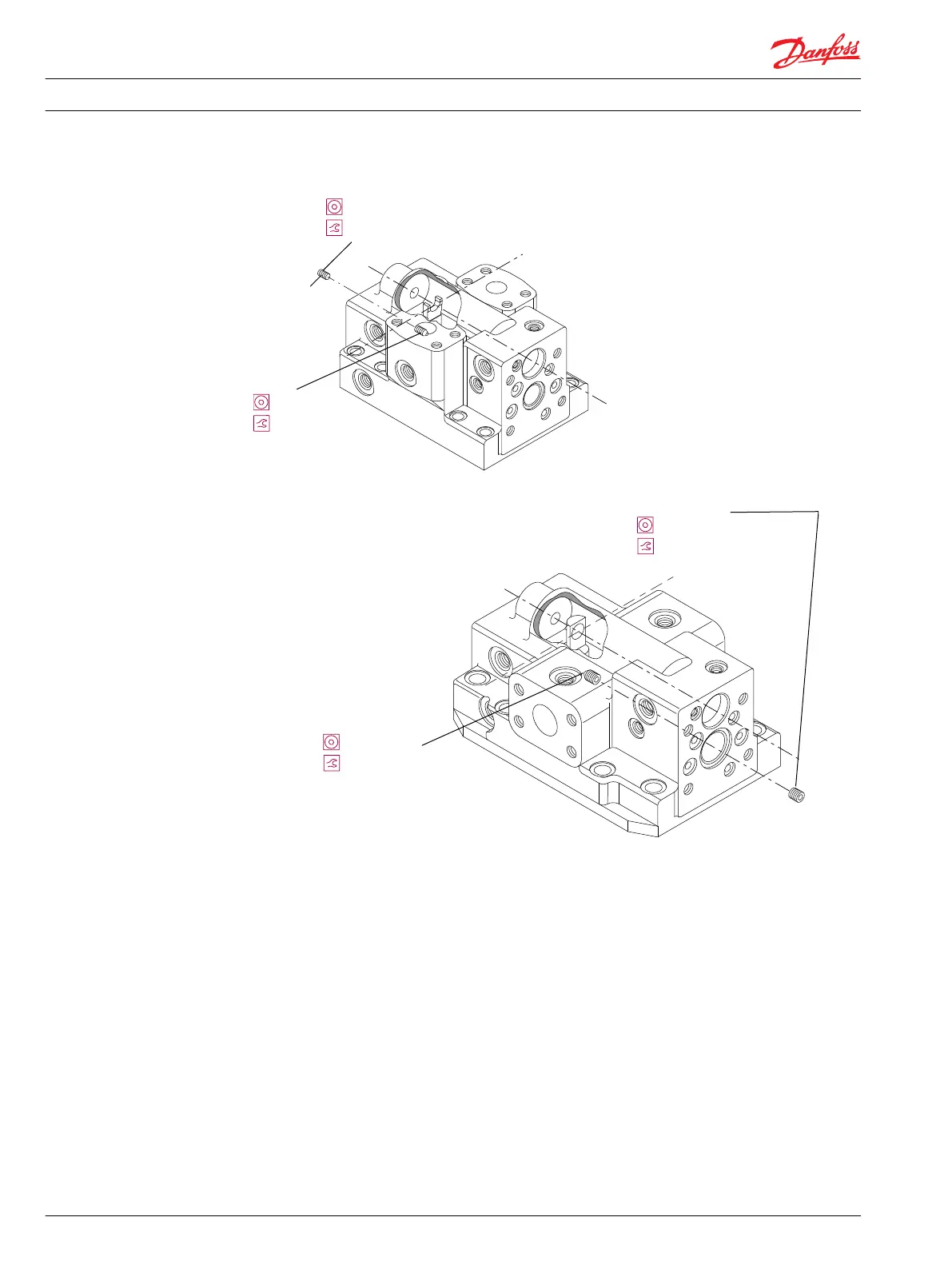

Cone-point set screws
F28
F28
6 mm
34 N•m [25.1 lbf•ft]
3 mm
7 N•m [62 lbf•in]
060 frame size
080, 110, 160, 250, frame sizes
F26
3 mm
5 N•m [44 lbf•in]
F26
6 mm
25 N•m [18 lbf•ft]
P104 098
Shaft and mounting flange assembly
SAE/DIN flange
1. Support the main housing (B10) so the bearing bore is vertical.
2. Press shaft assembly (L1) into main housing.
3. Install new O-ring (L50) on mounting flange (L35).
4. Install new seal (L40) in flange.
5. Cover the shaft splines with an installation sleeve to protect the seal during assembly. Install flange
assembly (L35).
6. Install screws (L70).
Repair Instructions
Series 51 and 51-1 Bent Axis Motors Repair Instructions
Assembly
22 11009449 • Rev BA • December 2014
