Danfoss 51 Series Repair Instructions

4. Using a 9/16 in. internal hex wrench torque the end cap plug (G80) to 40 N•m [29.5 lbf•ft].
Setting lugs
F24
(080)
F24
(060)
F30
(060)
F28
F26
F26

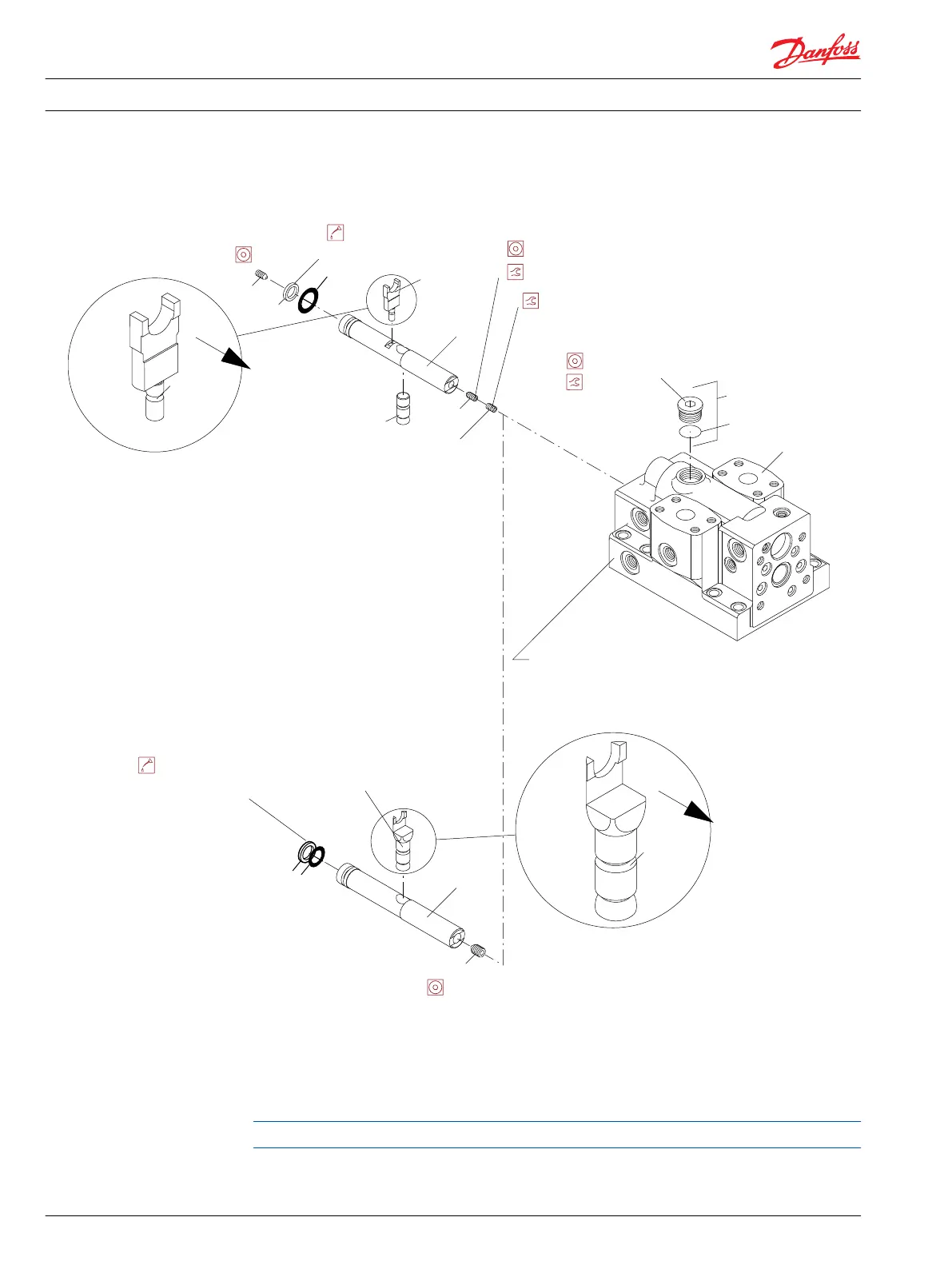

End cap (axial port style shown)
G10
F26
G80
G80A
(060) 5 N•m [44 lbf•in)
(060) 54 N•m
[44 lbs•ft]
F10
F12
F12
Multi-function
block/control
Groove
Lubricate with hydraulic fluid
F11
F10
F11
P104 096
Multi-function
block/control
Groove
(060) 7 N•m [62 lbf•in)
Lubricate with hydraulic fluid
3 mm
9/16 inch
3 mm
3 mm
110-250 frames
1. Install feedback fork (F24) / setting lug into the servo piston from inside of the endcap.
The offset of the fork must be away from the multi-function block / control end of the end cap.
Repair Instructions
Series 51 and 51-1 Bent Axis Motors Repair Instructions
Assembly
20 11009449 • Rev BA • December 2014
