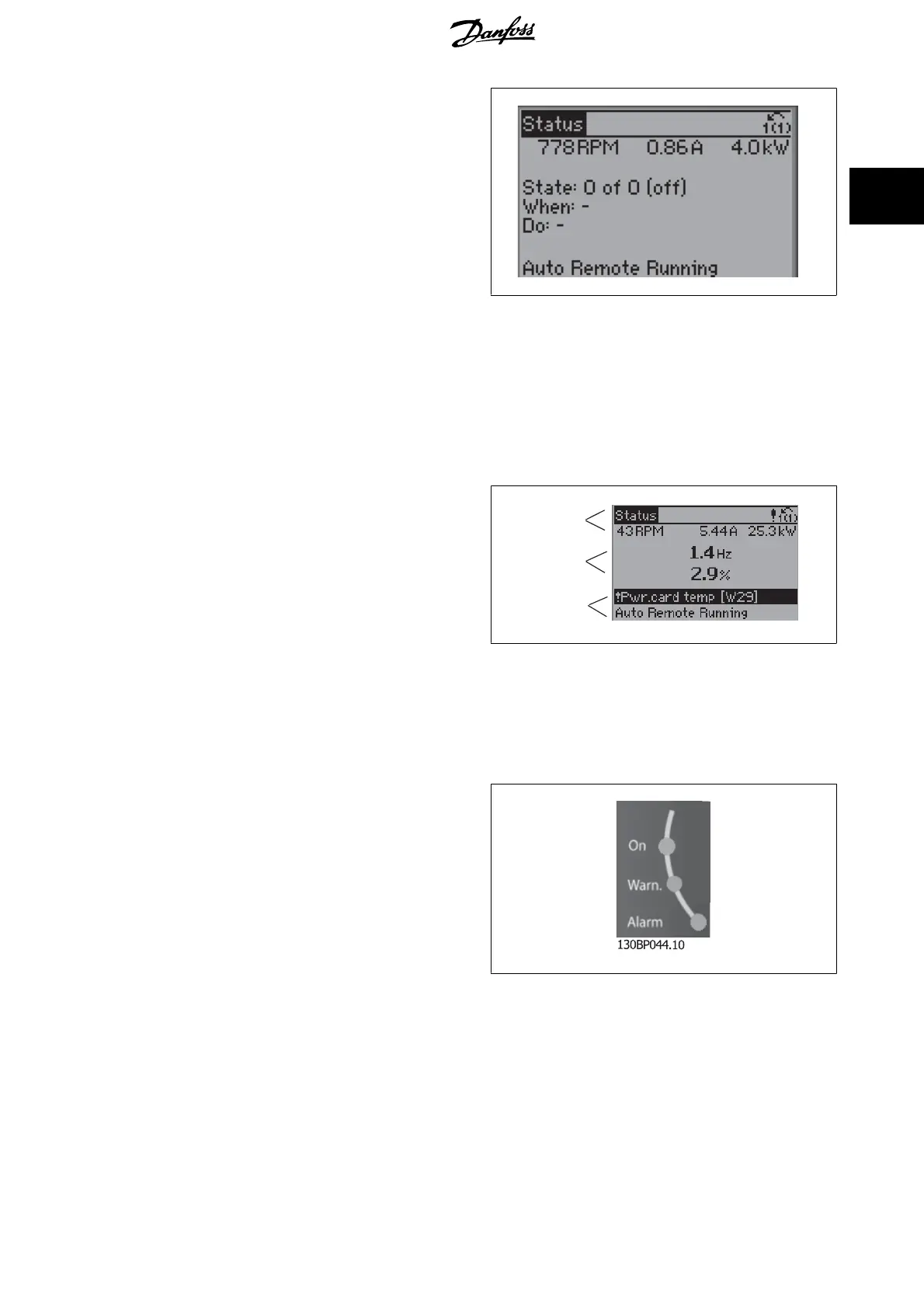

Status display III:
This state displays the event and action of the Smart Logic Control. For
further information, see section
Smart Logic Control
.
1
30BP063.10
The Bottom section always shows the state of the frequency converter
in Status mode.
Display Contrast Adjustment
Press [status] and [
] for darker display
Press [status] and [
] for brighter display
130BP074.10
Top section
Middle section
Bottom section
Indicator lights (LEDs):
If certain threshold values are exceeded, the alarm and/or warning LED lights up. A status and alarm text appear on the control panel.
The On LED is activated when the frequency converter receives power from mains voltage, a DC bus terminal, or an external 24 V supply. At the same
time, the back light is on.
Green LED/On: Control section is working.
Yellow LED/Warn.: Indicates a warning.
Flashing Red LED/Alarm: Indicates an alarm.
ADAP-KOOL
®
Drive Programming Guide 2 How to Programme
MG.11.N1.02 - VLT
®
is a registered Danfoss trademark
17
