Danfoss ADAP-KOOL Drive User Manual

Parameter used
Speed at
Design Point
KNOWN
Speed at
Design Point
UNKNOWN
Cascade Controller
Flow Compensation, 22-80 + + +
Square-Linear Curve Approximation, 22-81 + + -
Work Point Calculation, 22-82 + + -
Speed at No Flow, 22-83/84 + + -
Speed at Design Point, 22-85/86 + - -
Pressure at No Flow, 22-87 + + +
Pressure at Rated Speed, 22-88 - + -
Flow at Design Point, 22-89 - + -
Flow at Rated Speed, 22-90 - + -
22-80 Flow Compensation
Option: Function:
[0] * Disabled [0] Disabled : Set-Point compensation not active.
[1] Enabled [1]
Enabled :Set-Point compensation is active. Enabling this parameter allows the Flow Compensated
Setpoint operation.

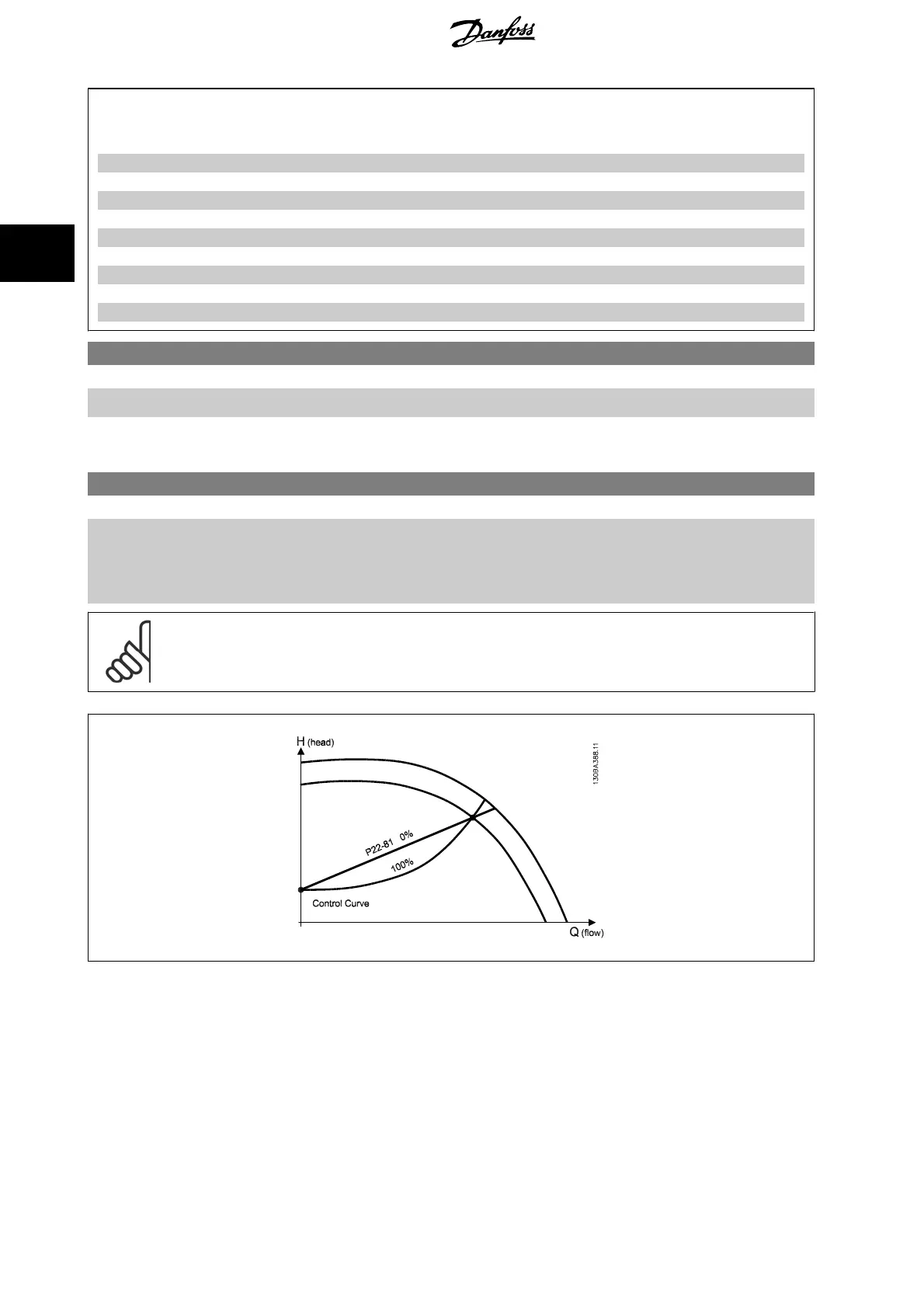

22-81 Square-linear Curve Approximation
Range: Function:
100 %* [0 - 100 %] Example 1:
Adjustment of this parameter allows the shape of the control curve to be adjusted.
0 = Linear
100% = Ideal shape (theoretical).
NB!
Please note: Not visible when running in cascade.
3 Parameter Description ADAP-KOOL
®
Drive Programming Guide
182 MG.11.N1.02 - VLT
®
is a registered Danfoss trademark
3
