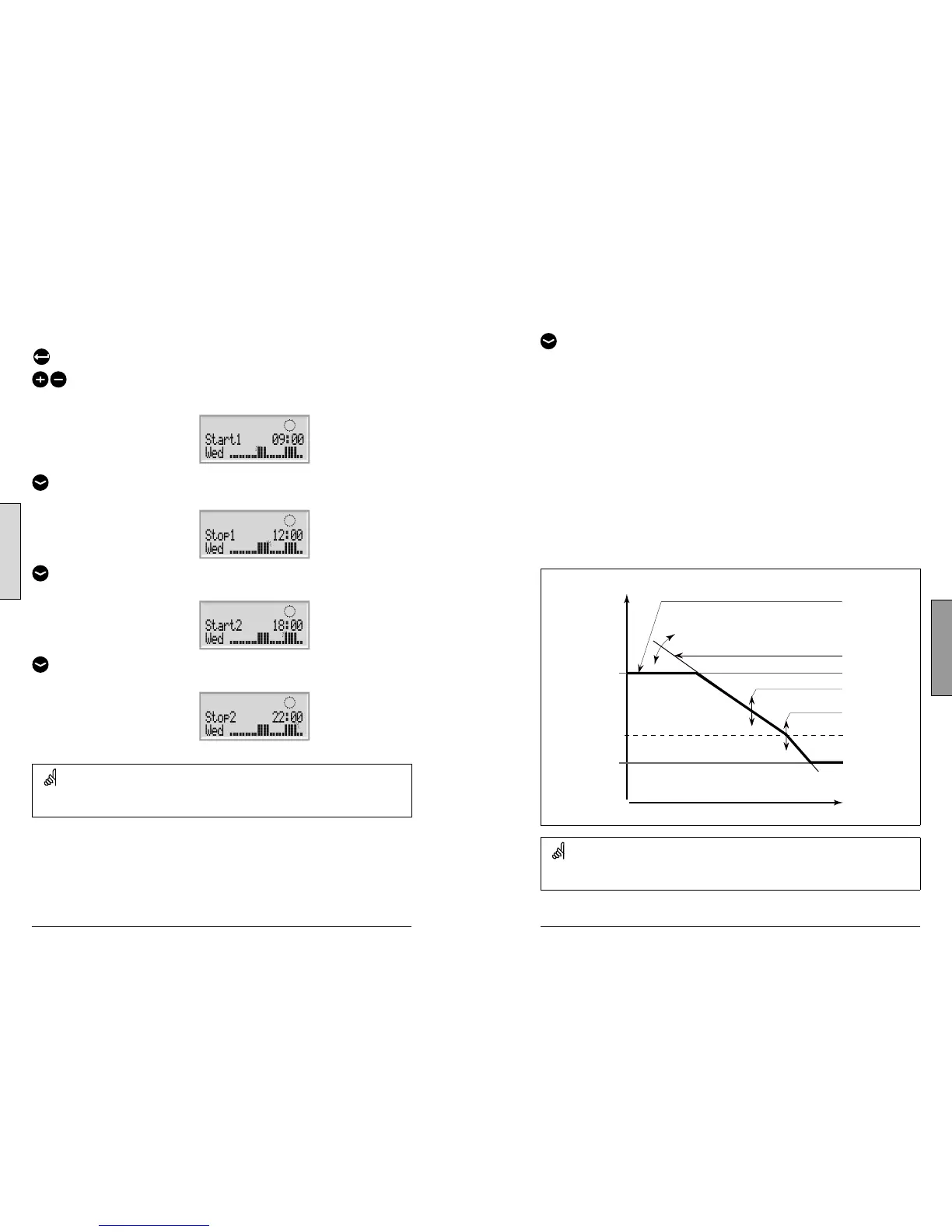

Today’s schedule
The first display will show you the start of the first comfort period (‘Start1’). See or
change the start of this period.
The first bar will blink.

 
See or change the end (‘Stop1’) of the first comfort period.
The next bar will blink.


See or change the start (‘Start2’) of the next comfort period.


See or change the next start / stop periods, if necessary.


��
The schedule has always two comfort periods a day. The start and stop times can be set in
half-hourly intervals (30 min.).
2 sec.
Enter the maintenance menus.
Date - time 1000
It is only necessary to set the correct date and time in connection with the first use of the
ECL Comfort 110 controller or after a power break of more than 36 hours (see the chapter
on Adapting the ECL Comfort 110 controller).
Flow temp. (flow temperature control) 2000
Heat curve
The ECL Comfort 110 controls the heating system according to the calculated flow
temperature under the influence of the return and / or room temperature.
The desired flow temperature is defined by 5 settings: ‘Temp. max.’, ‘Temp. min.’, ‘Slope’,
‘Displace’, and ‘Knee point’.
Desired flow temperature
    













Heat curve
‘Slope’
‘Temp. max.’
‘Displace’
‘Knee point’
‘Temp. min.’
Outdoor temp.
The calculated flow temperature can be influenced by connected sensors, ‘Boost’ and ‘Ramp’
etc.
