VI.KT.G6.02 © Danfoss | 2016.05 | 37

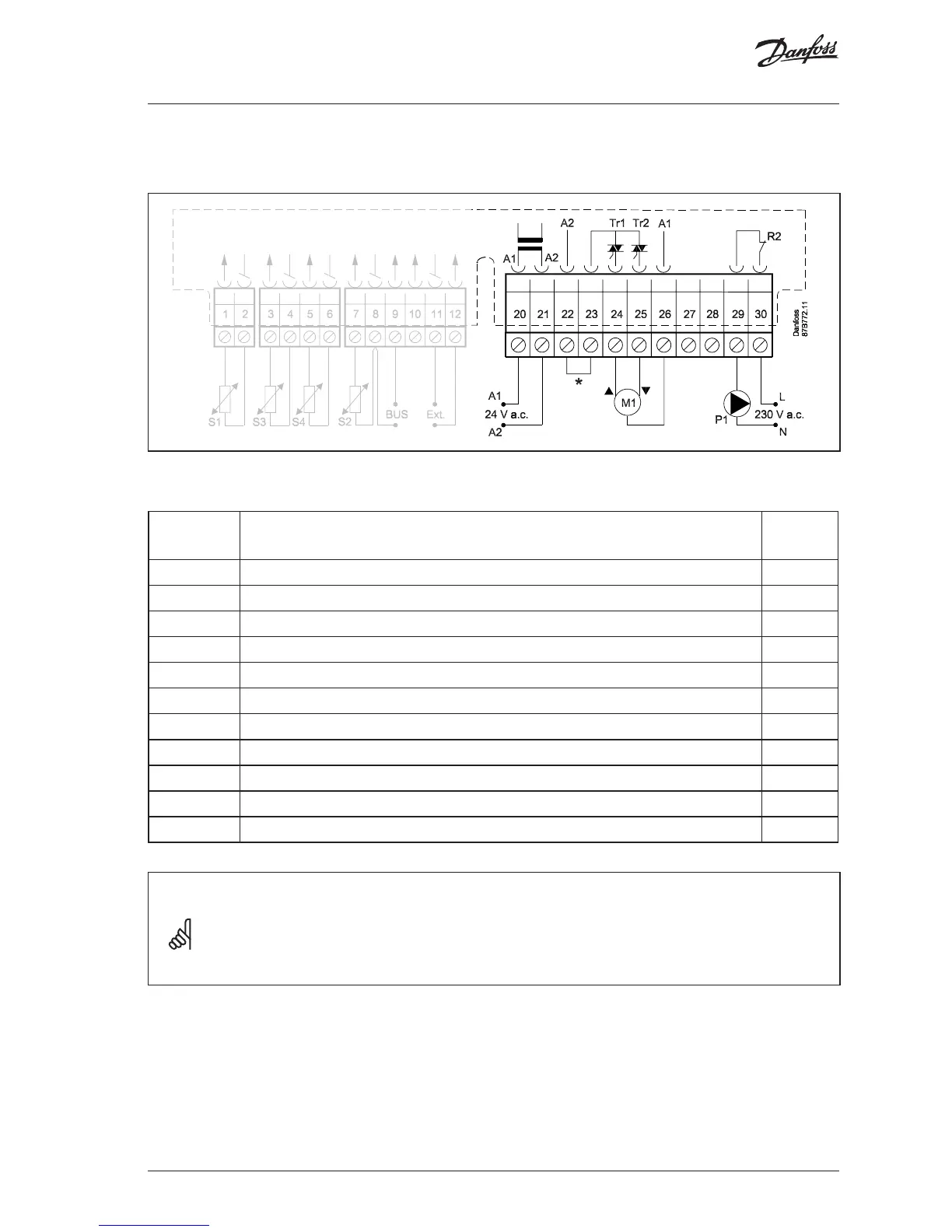

Installation
* Optional connections for safety thermostat
Terminal Description Max.
load
20 Supply voltage 24 V a.c. - A1
21 Supply voltage 24 V a.c. - A2
22 Optional connections for safety thermostat
23 Optional connections for safety thermostat
24 M1 Actuator - open, alt. thermo actuator (ABV) 15 VA
25 M1 Actuator - close 15 VA
26 M1 Actuator - A1
27 Not to be used
28 Not to be used
29 P1 Phase for circulation pump (relay R2)
30 P1 Relay R2 4 (2) A
Wire cross section: 0.5 - 1.5 mm
2
Incorrect connection can damage the TRIAC outputs.
Electrical connections - 24 V a.c. - in general
