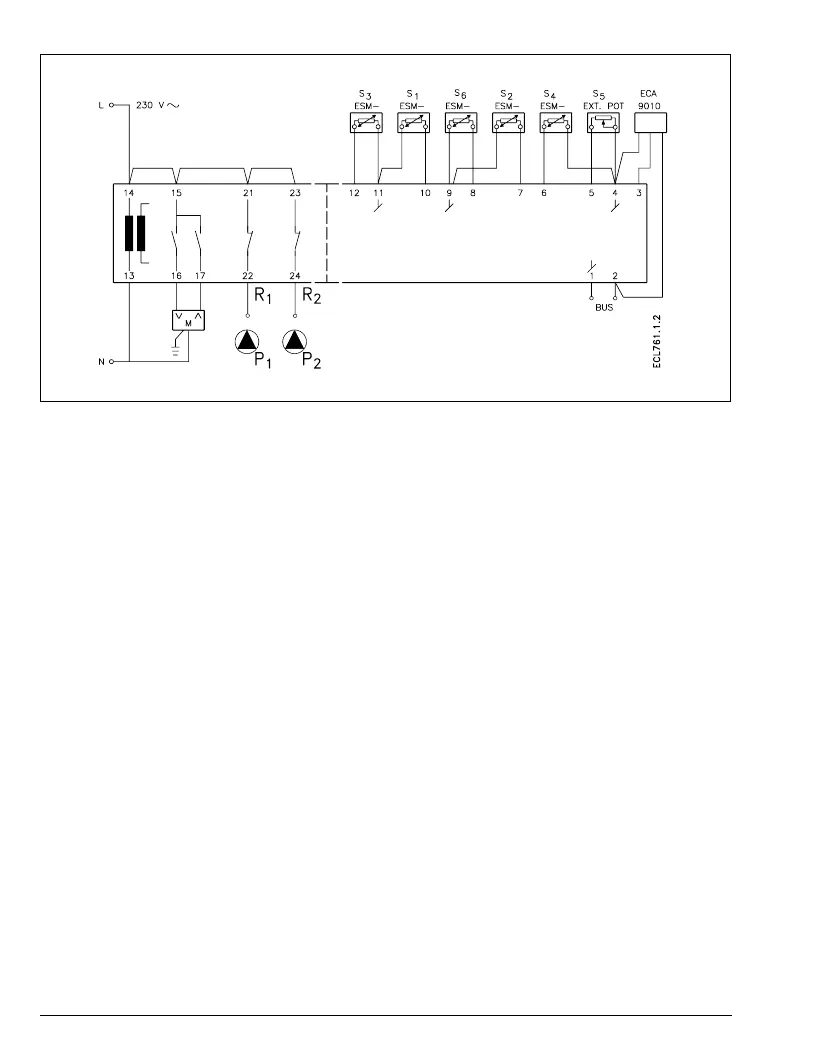

Wiring diagram (general)
The above wiring diagram shows all
connection possibilities for sensors, etc.
In the individual system types, the
necessary electrical connections are
shown with full lines. The remaining
possibilities are chain-dotted (see
system types on pages 22-48).
