Danfoss FC 300 Series User Manual

2How to Program
2.1 The Graphical and Numerical Local
Control Panels
The easiest programming of the adjustable frequency drive
is performed by the Graphical LCP (LCP 102). It is necessary
to consult the adjustable frequency drive Design Guide
when using the Numeric Local Control Panel (LCP 101).
2.1.1 How to Program on the Graphical LCP
The following instructions are valid for the graphical LCP
(LCP 102):

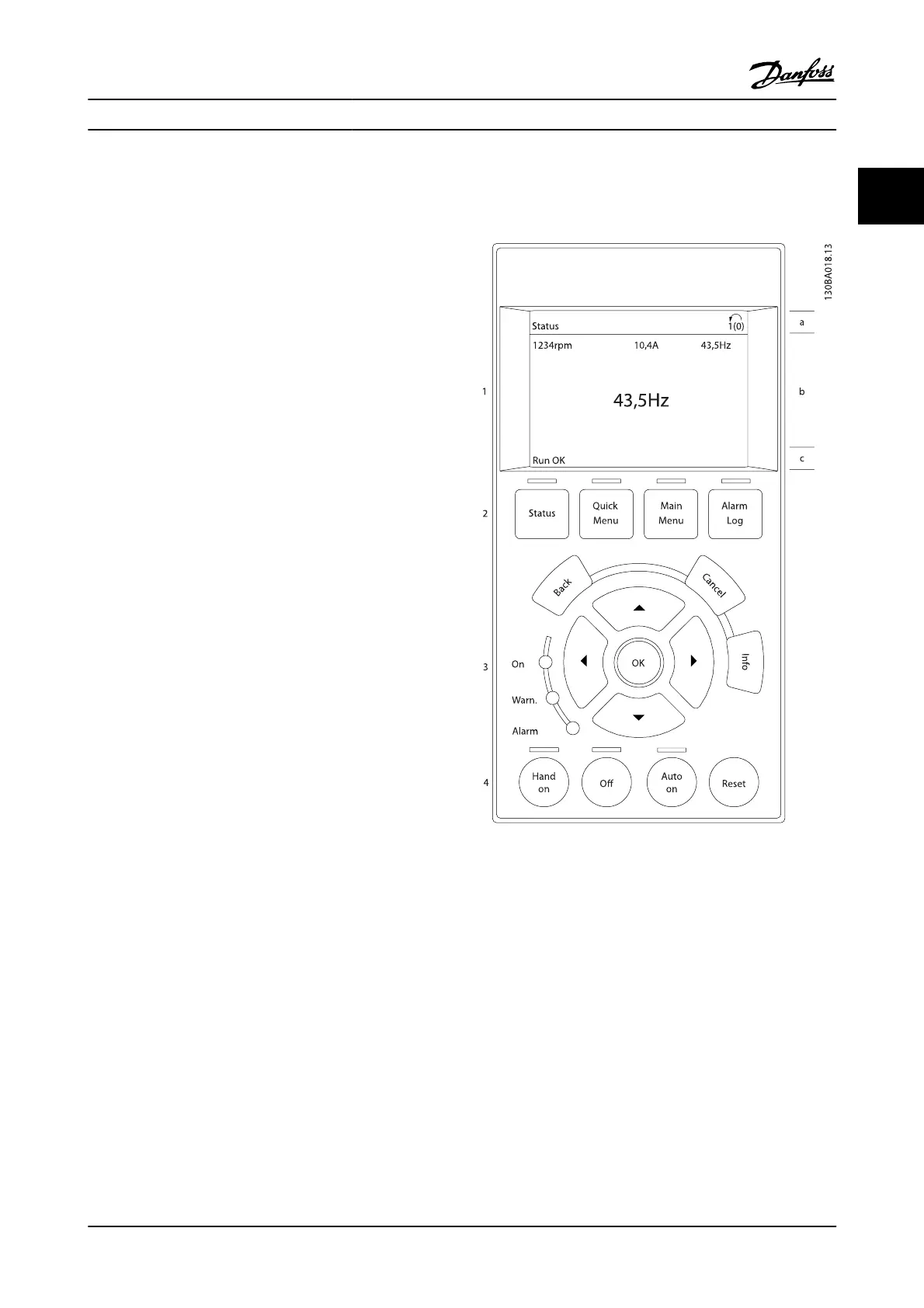

The control panel is divided into four functional groups:
1. Graphical display with status lines.
2. Menu keys and LEDs - changing parameters and
switching between display functions.
3. Navigation keys and LEDs (LEDs).
4. Operation keys and LEDs.
All data is displayed in a graphical LCP display, which can
show up to five items of operating data while displaying
[Status].
Display lines:
a. Status line: Status messages displaying icons and
graphic.
b. Line 1-2: Operator data lines displaying data
defined or chosen by the user. By pressing the
[Status] key, up to one extra line can be added.
c. Status line: Status messages displaying text.
How to Program FC 300 Programming Guide
MG.33.MA.22 - VLT
®
is a registered Danfoss trademark 2-1
2
2
