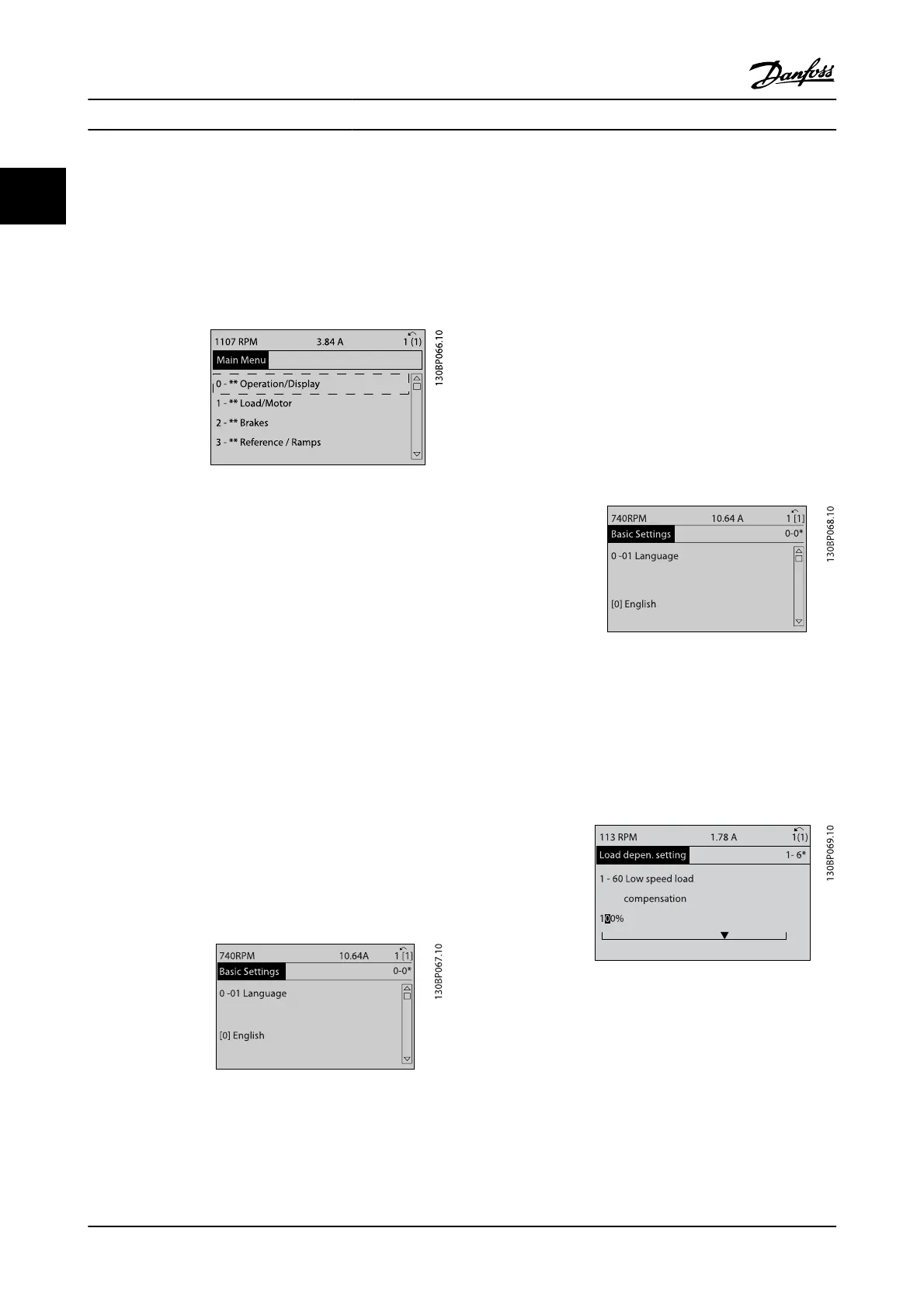

2.1.9 Main Menu Mode
Start main menu mode by pressing the [Main Menu] key. The
readout shown to the right appears on the display.
The middle and bottom sections on the display show a list of
par. groups which can be chosen by toggling the up and
down buttons.
Each parameter has a name and number which remain the
same regardless of the programming mode. In main menu
mode, the parameters are divided into groups. The first digit
of the parameter number (from the left) indicates the par.
group number.
All parameters can be changed in the Main Menu. However,
depending on the choice of configuration (1-00 Configu-
ration Mode), some parameters can be "missing". For
example, open-loop hides all the PID parameters, and other
enabled options make more par. groups visible.
2.1.10 Parameter Selection
In main menu mode, the parameters are divided into groups.
You select a par. group by means of the navigation keys.
The following par. groups are accessible:
After selecting a par. group, choose a parameter by means of
the navigation keys.
The middle section on the display shows the parameter
number and name as well as the selected parameter value.
2.1.11 Changing Data
The procedure for changing data is the same whether you
select a parameter in the quick menu or the main menu
mode. Press [OK] to change the selected parameter.
The procedure for changing data depends on whether the
selected parameter represents a numerical data value or a
text value.
2.1.12 Changing a Text Value
If the selected parameter is a text value, change the text
value by means of the [
▲
] [
▼
] navigation keys.
The up key increases the value, and the down key decreases
the value. Place the cursor on the value you want to save and
press [OK].
2.1.13 Changing a Group of Numeric Data
Values
If the chosen parameter represents a numeric data value,
change the chosen data value by means of the [
◀
] [
▶
]
navigation keys as well as the [
▲
] [
▼
] navigation keys. Use the
[
◀
] [
▶
] navigation keys to move the cursor horizontally.
Use the [
▲
] [
▼
] navigation keys to change the data value. The
up key enlarges the data value, and the down key reduces
the data value. Place the cursor on the value you want to
save and press [OK].
How to Program FC 300 Programming Guide
2-8 MG.33.MA.22 - VLT
®
is a registered Danfoss trademark
2
2
