2.1.3 Quick Transfer of Parameter Settings
between Multiple Adjustable
Frequency Drives
Once the set-up of an adjustable frequency drive is
complete, we recommend that you store the data in the LCP
or on a PC via MCT 10 Set-up Software Tool.

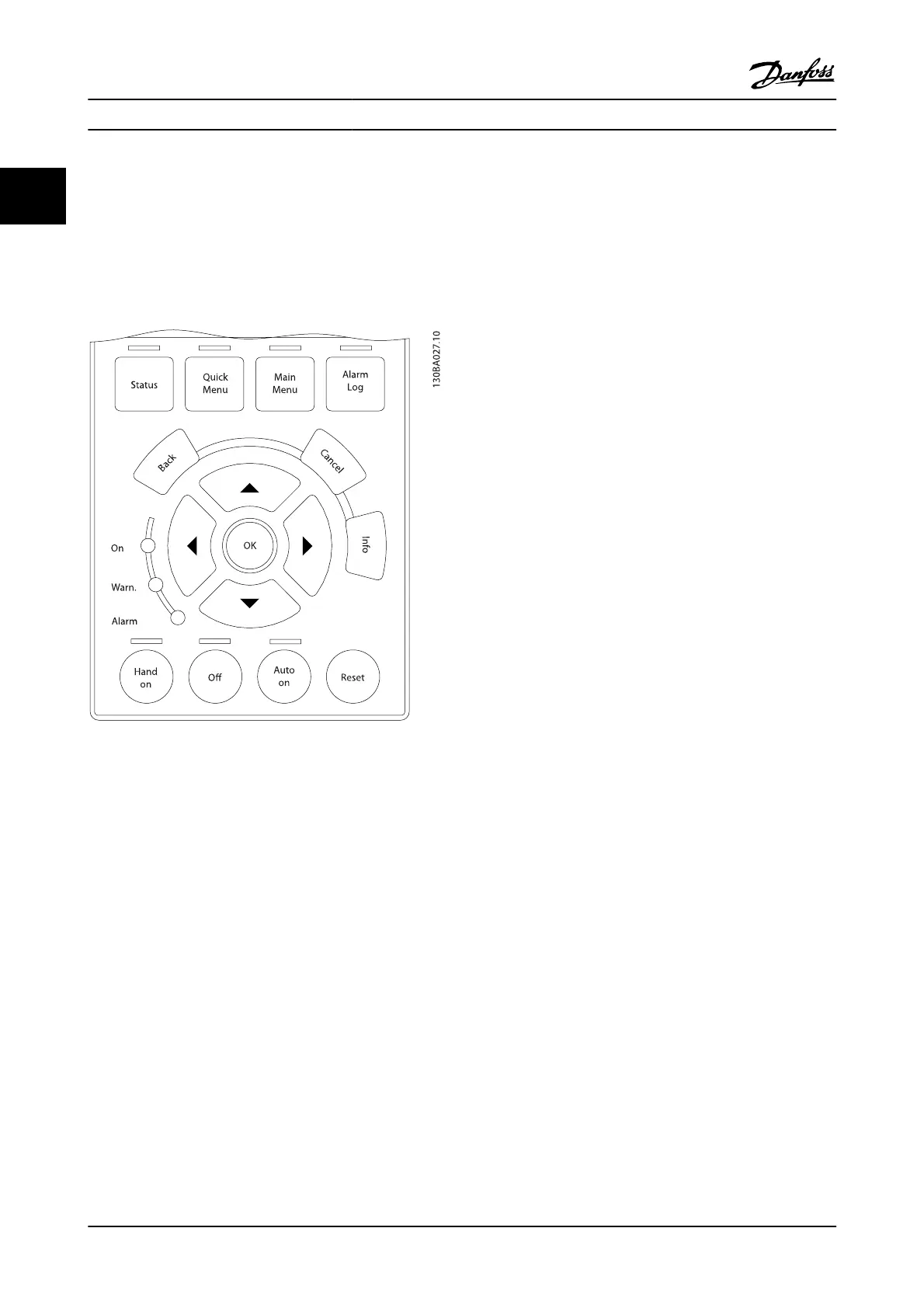

Data storage in LCP:
1. Go to 0-50 LCP Copy
2. Press the [OK] key
3. Select “All to LCP”
4. Press the [OK] key
All parameter settings are now stored in the LCP indicated by
the progress bar. When 100% is reached, press [OK].
NOTE!
Stop the motor before performing this operation.
You can now connect the LCP to another adjustable
frequency drive and copy the parameter settings to this
adjustable frequency drive as well.
Data transfer from the LCP to the adjustable frequency
drive:
1. Go to 0-50 LCP Copy
2. Press the [OK] key
3. Select “All from LCP”
4. Press the [OK] key
The parameter settings stored in the LCP are now transferred
to the adjustable frequency drive indicated by the progress
bar. When 100% is reached, press [OK].
NOTE!
Stop the motor before performing this operation.
2.1.4 Display Mode
In normal operation, up to 5 different operating variables can
be indicated continuously in the middle section: 1.1, 1.2, and
1.3 as well as 2 and 3.
2.1.5 Display Mode - Selection of Readouts
It is possible to toggle between three status readout screens
by pressing the [Status] key.
Operating variables with different formatting are shown in
each status screen - see below.
The table shows the measurements you can link to each of
the operating variables. When Options are mounted,
additional measurements are available. Define the links via
0-20 Display Line 1.1 Small, 0-21 Display Line 1.2 Small,
0-22 Display Line 1.3 Small, 0-23 Display Line 2 Large, and
0-24 Display Line 3 Large.
Each readout parameter selected in 0-20 Display Line 1.1
Small to 0-24 Display Line 3 Large has its own scale and digits
after a possible decimal point. The larger the numeric value
for a parameter, the fewer digits displayed after the decimal
point.
Ex.: Current readout
5.25 A; 15.2 A 105 A.
