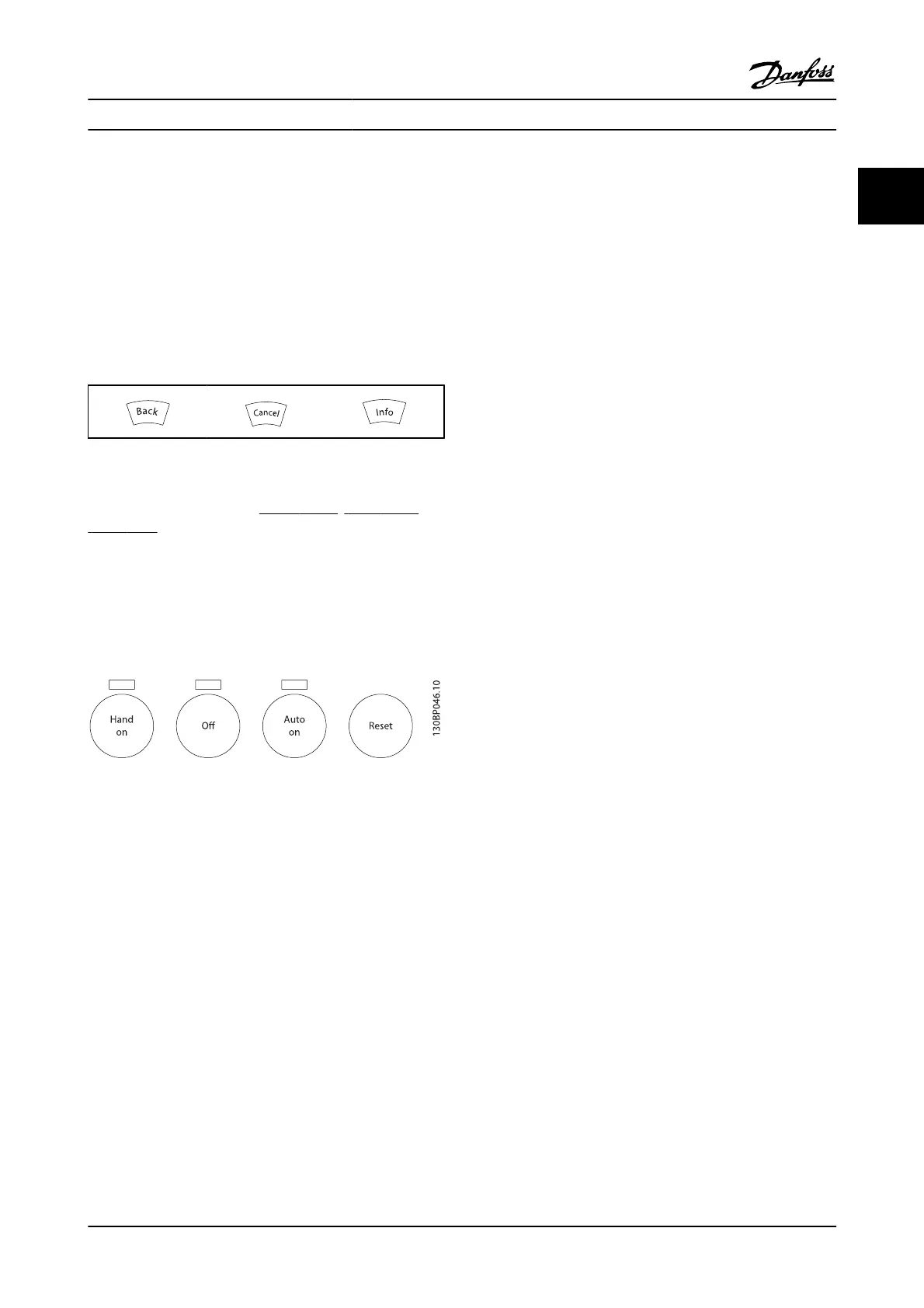

[Back] takes you to the previous step or layer in the
navigation structure.
[Cancel] annuls your last change or command as long as the
display has not been changed.
[Info] supplies information about a command, parameter, or
function in any display window. [Info] provides detailed
information whenever help is needed.
Exit info mode by pressing either [Info], [Back], or [Cancel].
Navigation Keys
The four navigation arrows are used to navigate between the
different choices available in
[Quick Menu], [Main Menu] and
[Alarm Log]. Use the keys to move the cursor.
[OK] is used for choosing a parameter marked by the cursor
and for enabling the change of a parameter.
Local Control Key for local control is found at the bottom of
the LCP.
[Hand On] enables control of the adjustable frequency drive
via the LCP. [Hand on] also starts the motor, and it is now
possible to enter the motor speed data by means of the
arrow keys. The key can be selected as Enable [1] or Disable
[0] via 0-40 [Hand on] Key on LCP
External stop signals activated by means of control signals or
a serial bus will override a “start” command via the LCP.
The following control signals will still be active when [Hand
on] is activated:
•
[Hand on] - [Off] - [Auto on]
•
Reset
•
Coasting stop inverse
•
Reverse
•
Set-up select bit 0 - Set-up select bit 1
•
Stop command from serial communication
•
Quick stop
•
DC brake
[Off] stops the connected motor. The key can be selected as
Enable [1] or Disable [0] via 0-41 [Off] Key on LCP. If no
external stop function is selected and the [Off] key is inactive,
the motor can be stopped by disconnecting the voltage.
[Auto On] enables the adjustable frequency drive to be
controlled via the control terminals and/or serial communi-
cation. When a start signal is applied on the control terminals
and/or the bus, the adjustable frequency drive will start. The
key can be selected as Enable [1] or Disable [0] via 0-42 [Auto
on] Key on LCP.
NOTE!
An active HAND-OFF-AUTO signal via the digital inputs has
higher priority than the control keys [Hand on] – [Auto on].
[Reset] is used for resetting the adjustable frequency drive
after an alarm (trip). It can be selected as Enable [1] or Disable
[0] via 0-43 [Reset] Key on LCP.
The parameter shortcut can be carried out by holding down
the [Main Menu] key for 3 seconds. The parameter shortcut
allows direct access to any parameter.
