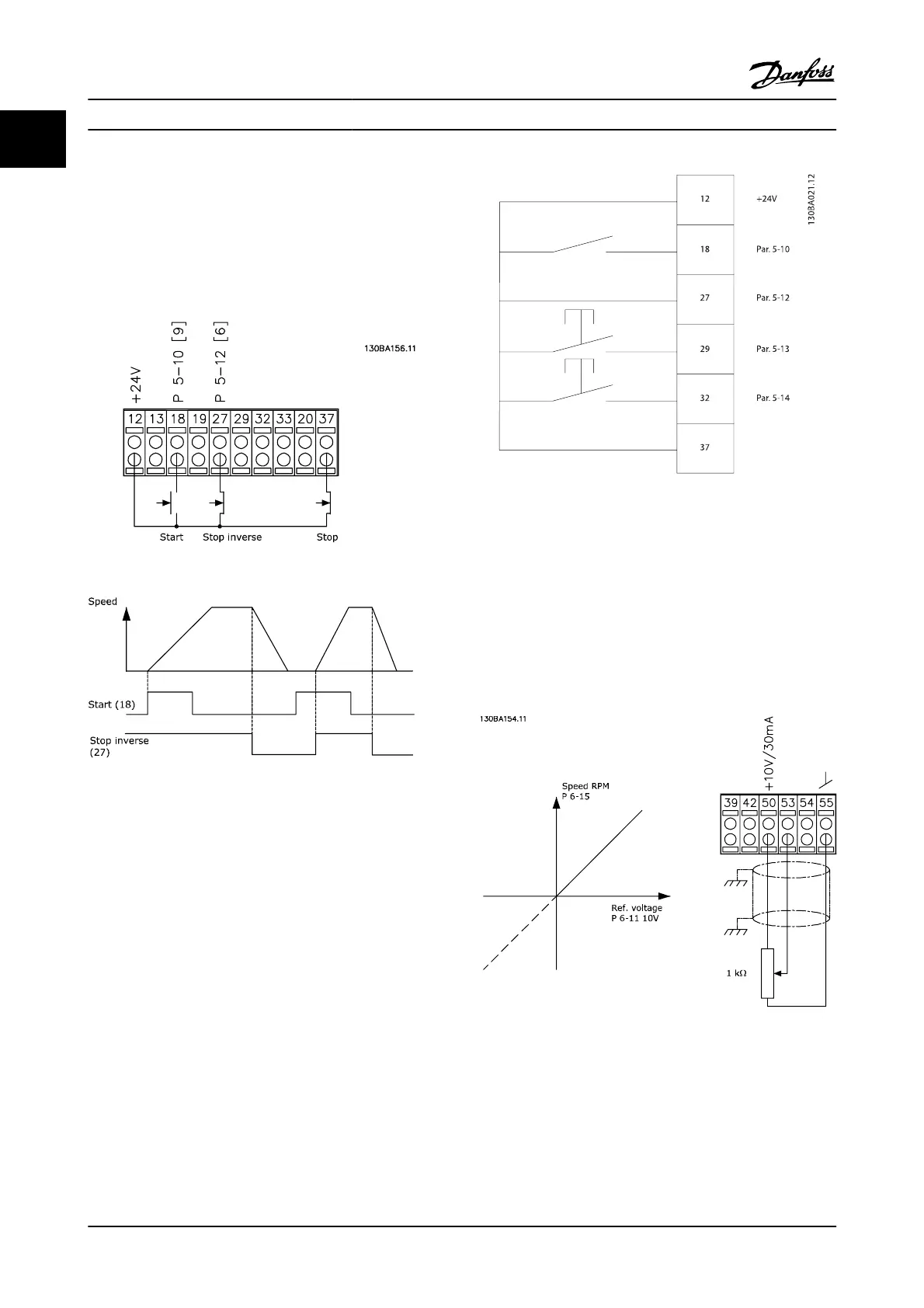

1.1.7 Pulse Start/Stop
Terminal 18 = 5-10 Terminal 18 Digital InputLatched start, [9]
Terminal 27= 5-12 Terminal 27 Digital InputStop inverse, [6]
Terminal 37 = Safe stop (where available!)
1.1.8 Speed Up/Down
Terminals 29/32 = Speed up/down:
Terminal 18 = 5-10 Terminal 18 Digital Input Start [9]
(default)
Terminal 27 = 5-12 Terminal 27 Digital Input Freeze
reference [19]
Terminal 29 = 5-13 Terminal 29 Digital Input Speed
up [21]
Terminal 32 = 5-14 Terminal 32 Digital Input Slow
[22]
NOTE: Terminal 29 only in FC x02 (x=series type).
1.1.9 Potentiometer Reference
Voltage reference via a potentiometer:
Reference Source 1 = [1] Analog input 53 (default)
Terminal 53, Low Voltage = 0 Volt
Terminal 53, High Voltage = 10 Volt
Terminal 53, Low Ref./Feedback = 0 RPM
Terminal 53, High Ref./Feedback = 1500 RPM
Switch S201 = OFF (U)
