3.14.5 13-4* Logic Rules
Combine up to three boolean inputs (TRUE / FALSE inputs)
from timers, comparators, digital inputs, status bits and
events using the logical operators AND, OR, and NOT. Select
Boolean inputs for the calculation in 13-40 Logic Rule Boolean
1, 13-42 Logic Rule Boolean 2 and 13-44 Logic Rule Boolean 3.
Define the operators used to logically combine the selected
inputs in 13-41 Logic Rule Operator 1 and 13-43 Logic Rule
Operator 2.

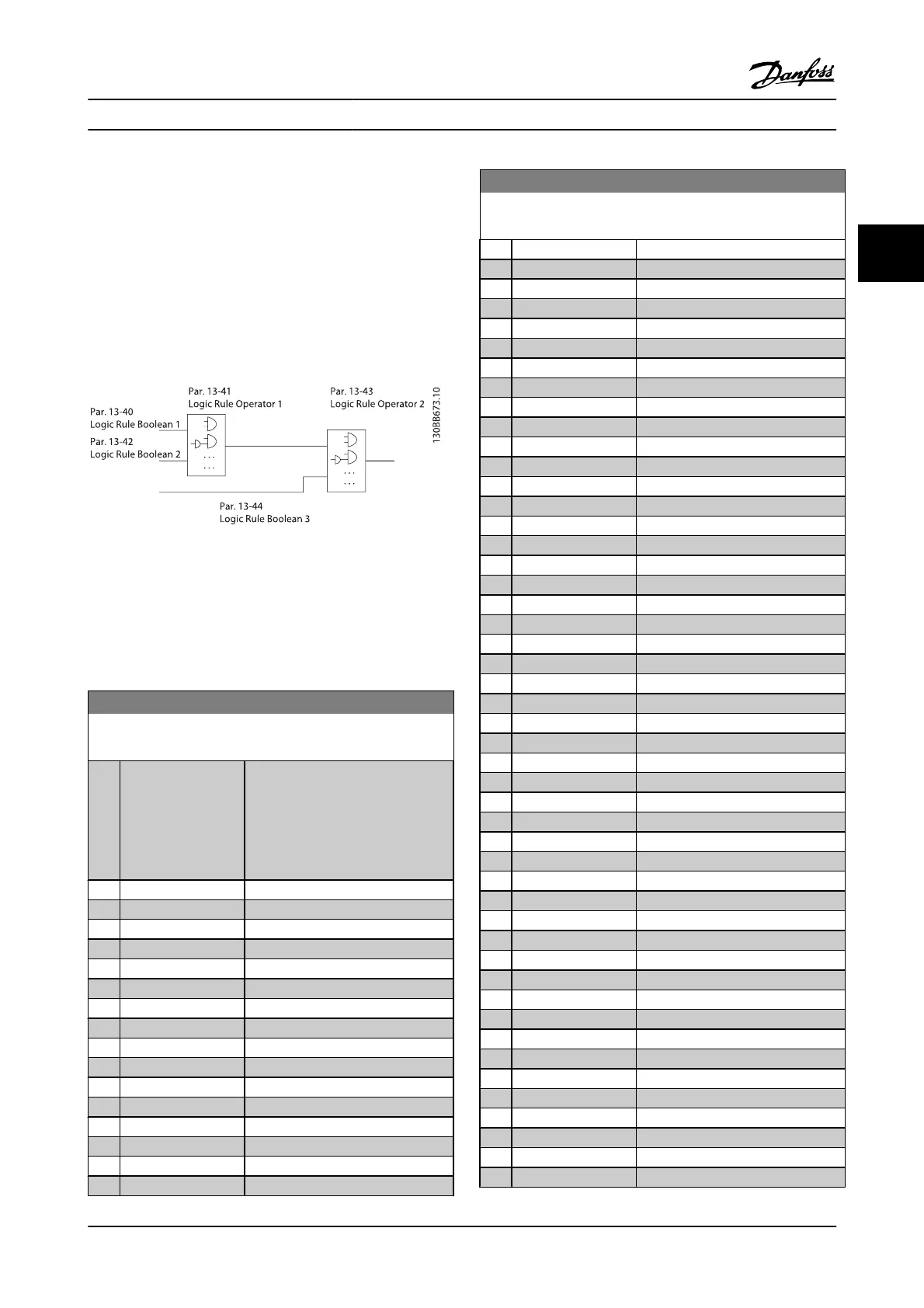

Priority of calculation
The results of 13-40 Logic Rule Boolean 1, 13-41 Logic Rule
Operator 1 and 13-42 Logic Rule Boolean 2 are calculated first.
The outcome (TRUE / FALSE) of this calculation is combined
with the settings of 13-43 Logic Rule Operator 2 and
13-44 Logic Rule Boolean 3, yielding the final result (TRUE /
FALSE) of the logic rule.
13-40 Logic Rule Boolean 1
Array [6]
Option: Function:
[0]
*
FALSE Select the first Boolean (TRUE or
FALSE) input for the selected logic
rule.
See 13-01 Start Event ([0] - [61]) and
13-02 Stop Event ([70] - [75]) for
further description.
[1] TRUE
[2] Running
[3] In range
[4] On reference
[5] Torque limit
[6] Current limit
[7] Out of current range
[8] Below I low
[9] Above I high
[10] Out of speed range
[11] Below speed low
[12] Above speed high
[13] Out of feedb. range
[14] Below feedb. low
[15] Above feedb. high
[16] Thermal warning
13-40 Logic Rule Boolean 1
Array [6]
Option: Function:
[17] Mains out of range
[18] Reverse
[19] Warning
[20] Alarm (trip)
[21] Alarm (trip lock)
[22] Comparator 0
[23] Comparator 1
[24] Comparator 2
[25] Comparator 3
[26] Logic rule 0
[27] Logic rule 1
[28] Logic rule 2
[29] Logic rule 3
[30] SL Timeout 0
[31] SL Timeout 1
[32] SL Timeout 2
[33] Digital input DI18
[34] Digital input DI19
[35] Digital input DI27
[36] Digital input DI29
[37] Digital input DI32
[38] Digital input DI33
[39] Start command
[40] Drive stopped
[41] Reset Trip
[42] Auto-reset Trip
[43] OK key
[44] Reset key
[45] Left key
[46] Right key
[47] Up key
[48] Down key
[50] Comparator 4
[51] Comparator 5
[60] Logic rule 4
[61] Logic rule 5
[70] SL Timeout 3
[71] SL Timeout 4
[72] SL Timeout 5
[73] SL Timeout 6
[74] SL Timeout 7
[75] Start command given
[76] Digital input x30 2
[77] Digital input x30 3
[78] Digital input x30 4
[79] Digital input x46/1
[80] Digital input x46/3
[81] Digital input x46/5
Parameter Descriptions FC 300 Programming Guide
MG.33.MA.22 - VLT
®
is a registered Danfoss trademark 3-113
