Danfoss FC 300 Series User Manual

5-65 Pulse Output Max Freq #29
Set the maximum frequency for terminal 29 corresponding to the
output variable set in 5-63 Terminal 29 Pulse Output Variable.
This parameter cannot be adjusted while the motor is running.
Range: Function:
5000 Hz * [0 - 32000 Hz]
5-66 Terminal X30/6 Pulse Output Variable
Select the variable for read-out on terminal X30/6.
This parameter cannot be adjusted while the motor is running.
This parameter is active when option module MCB 101 is installed
in the adjustable frequency drive.
Same options and functions as par. group 5-6*.
Option: Function:
[0] * No operation
[45] Bus ctrl.
[48] Bus ctrl., timeout
[51] MCO controlled
[100] Output frequency
[101] Reference
[102] Feedback
[103] Motor current
[104] Torque rel to limit
[105] Torq relate to rated
[106] Power
[107] Speed
[108] Torque
[109] Max Out Freq
[119] Torque % lim
5-68 Pulse Output Max Freq #X30/6
Select the maximum frequency on terminal X30/6 referring to the
output variable in 5-66 Terminal X30/6 Pulse Output Variable. This
parameter cannot be adjusted while the motor is running.
This parameter is active when option module MCB 101 is mounted
in the adjustable frequency drive.
Range: Function:
Application
dependent
*
[0 - 32000 Hz]
3.7.7 5-7* 24V Encoder Input
Connect the 24 V encoder to terminal 12 (24 V DC supply),
terminal 32 (Channel A), terminal 33 (Channel B), and
terminal 20 (GND). The digital inputs 32/33 are active for
encoder inputs when 24 V encoder is selected in 1-02 Flux
Motor Feedback Source and 7-00 Speed PID Feedback Source.
The encoder used is a dual channel (A and B) 24 V type. Max
input frequency: 110 kHz.

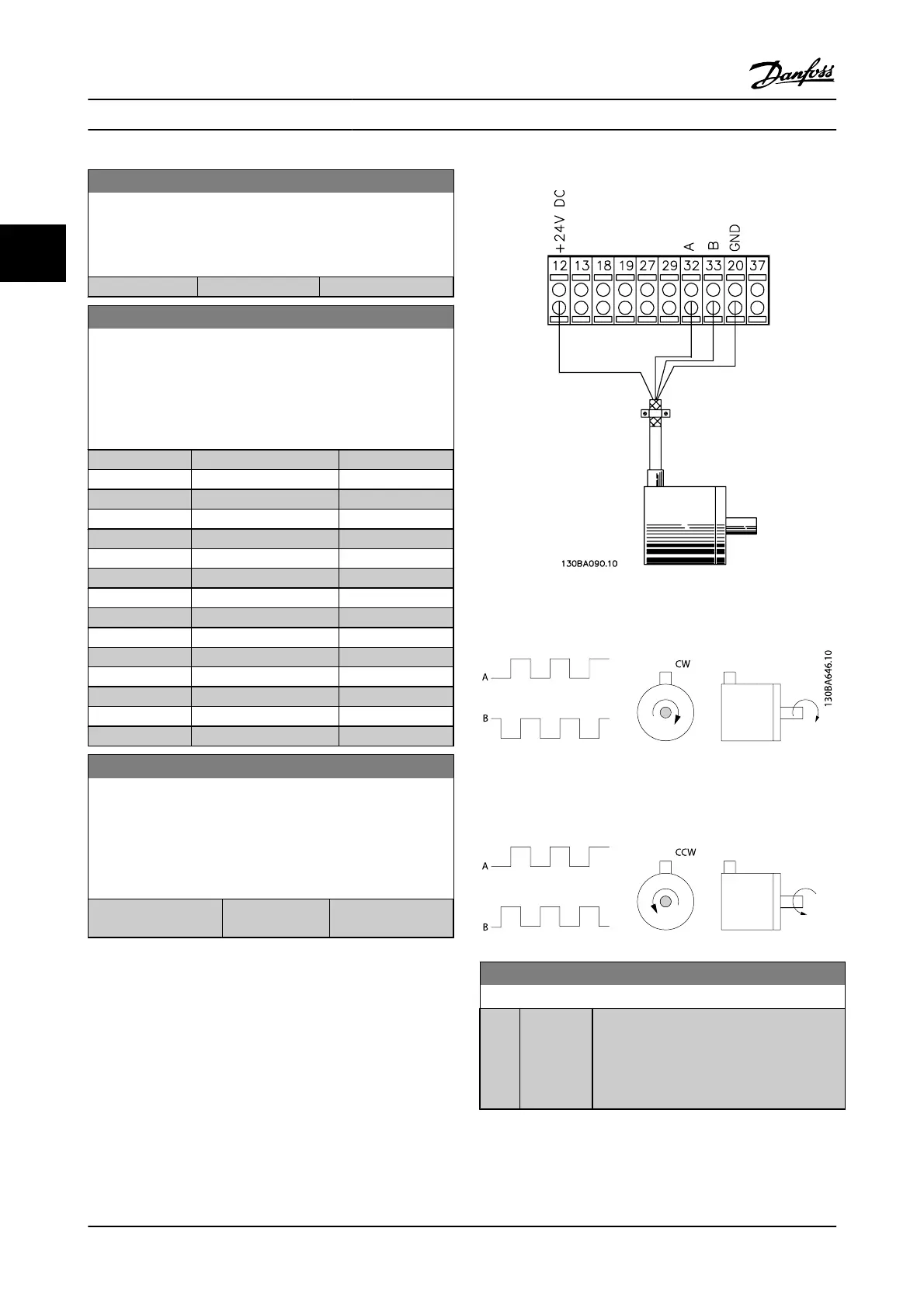

Encoder connection to the adjustable frequency drive
Figure 3.6 24 V incremental encoder. Max. cable length 16 ft [5
m]
5-70 Term 32/33 Pulses per Revolution
Range: Function:
1024 * [1 - 4096 ] Set the encoder pulses per revolution on the
motor shaft. Read the correct value from the
encoder.
This parameter cannot be adjusted while the
motor is running.
Parameter Descriptions FC 300 Programming Guide
3-64 MG.33.MA.22 - VLT
®
is a registered Danfoss trademark
3
