Danfoss H1 078 - Page 17

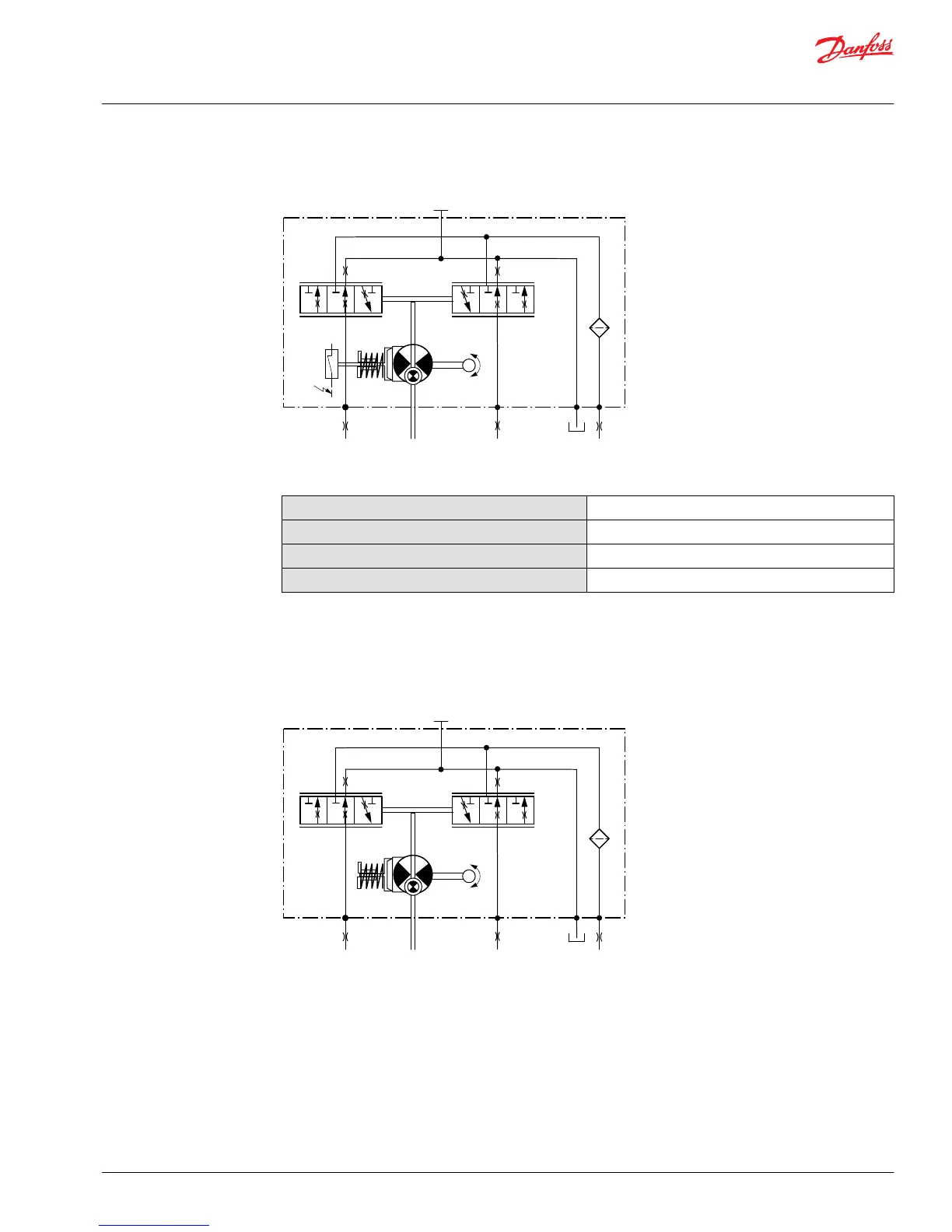

Neutral Start Switch schematic
P005 702
M14
M5
M4
M3
Neutral Start Switch data
Max. continuous current with switching
8.4 A
Max. continuous current without switching
20 A
Max. voltage
36 V
DC
Electrical protection class
IP67 / IP69K with mating connector
Case Gauge Port M14
The drain port should be used when the control is mounted on the unit’s bottom side to flush residual
contamination out of the control.
MDC schematic diagram
P005 701
M14
M5
M4
M3
Service Manual
H1 Pumps 069/078, 089/100, 115/130, 147/165, 210/250
Operation
©
Danfoss | May 2018 520L0848 | AX00000087en-US0308 | 17
