Danfoss H1 078 - Angle Sensor on EDC; Removal

4. If previously removed, install orifices using a 3 mm internal hex wrench. Torque to 2.5 Nm [1.8 lbf ft].
Remove the plug on top of the control to ensure the swashplate feedback pin is properly positioned
in the center of the control module when installing control.
5. Install the control module and six cap screws (D250).

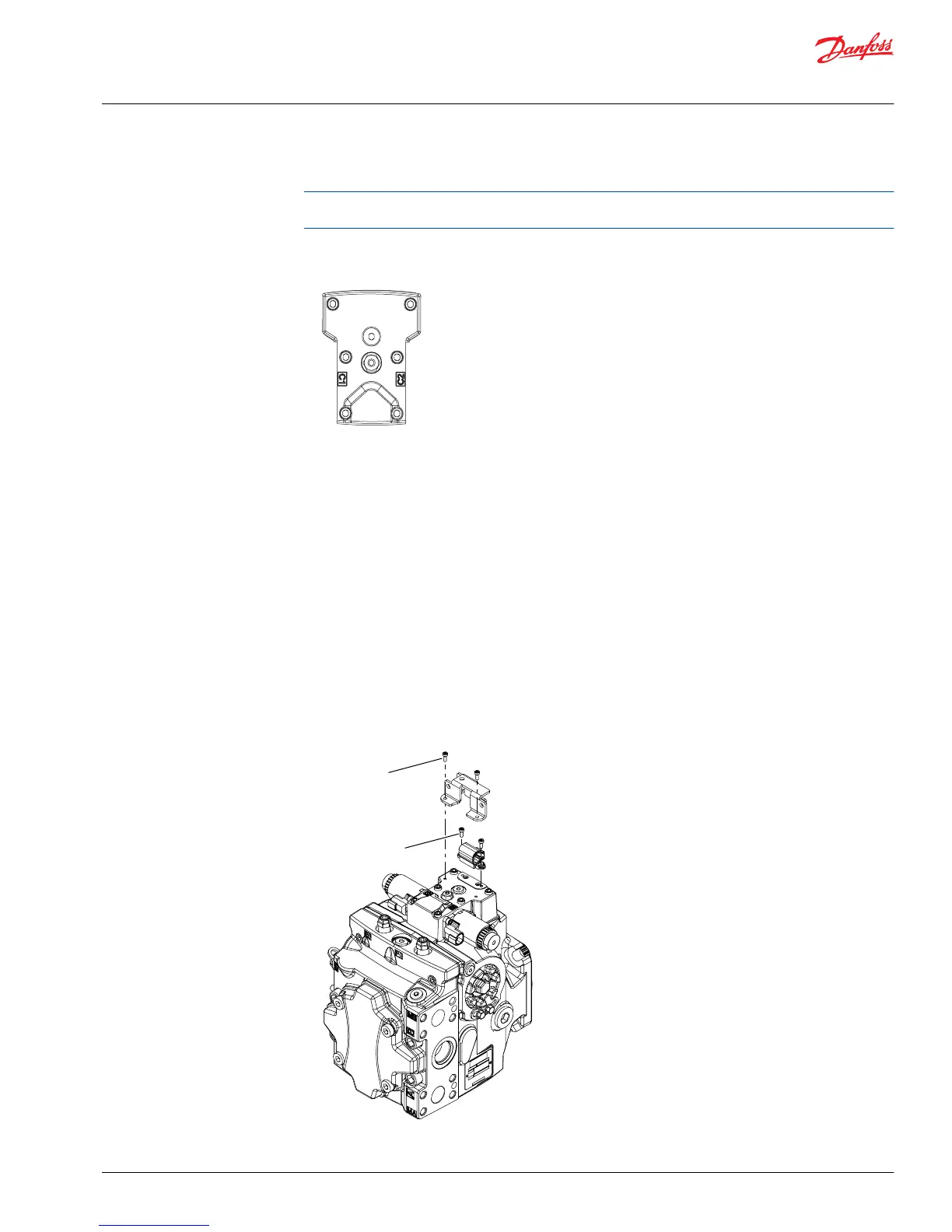

Torque sequence
2
3
4
5
6
1
6. Using a 5 mm internal hex wrench, torque the cap screws (D250) to 13.3 Nm [9.8 lbf ft].
Angle sensor on EDC
Removal
1. Clean the exterior of the pump to remove debris.
2. Remove protection cover screws (D767) using a 4 mm internal hex wrench.
3. Remove the protection cover from the control.
4. If protection cover is damaged, discard.
5. Remove sensor screws (D770) using a 4 mm internal hex wrench.
6. Remove and discard the sensor.
Position sensor
D767
D770
Service Manual
H1 Pumps 069/078, 089/100, 115/130, 147/165, 210/250
Minor Repair
©
Danfoss | May 2018 520L0848 | AX00000087en-US0308 | 45
