Danfoss H1 078 - Fasteners and Plugs

069/078/089/100/115/130/147/165/210/250 (continued)
Item O-ring plug Wrench size Torque
B020 (210/250) 1-5/16 - 12 5/8 internal hex 150 N•m [110 lbf•ft]
B035 (069/078) 1 1/16 - 12 9/16 internal hex 70 N•m [52 lbf•ft]
B035 (147/165) 1 5/16 - 12 5/8 internal hex 150 N•m [110 lbf•ft]
D065 7/16 - 20 3/16 internal hex 12 N•m [9 lbf•ft]
G250 9/16 - 18 1/4 internal hex 40 N•m [29.5 lbf•ft]
G300 9/16 - 18 3/16 internal hex 40 N•m [29.5 lbf•ft]
G302 5/16 - 24 UNF 1/8 internal hex 5 N•m [4 lbf•ft]

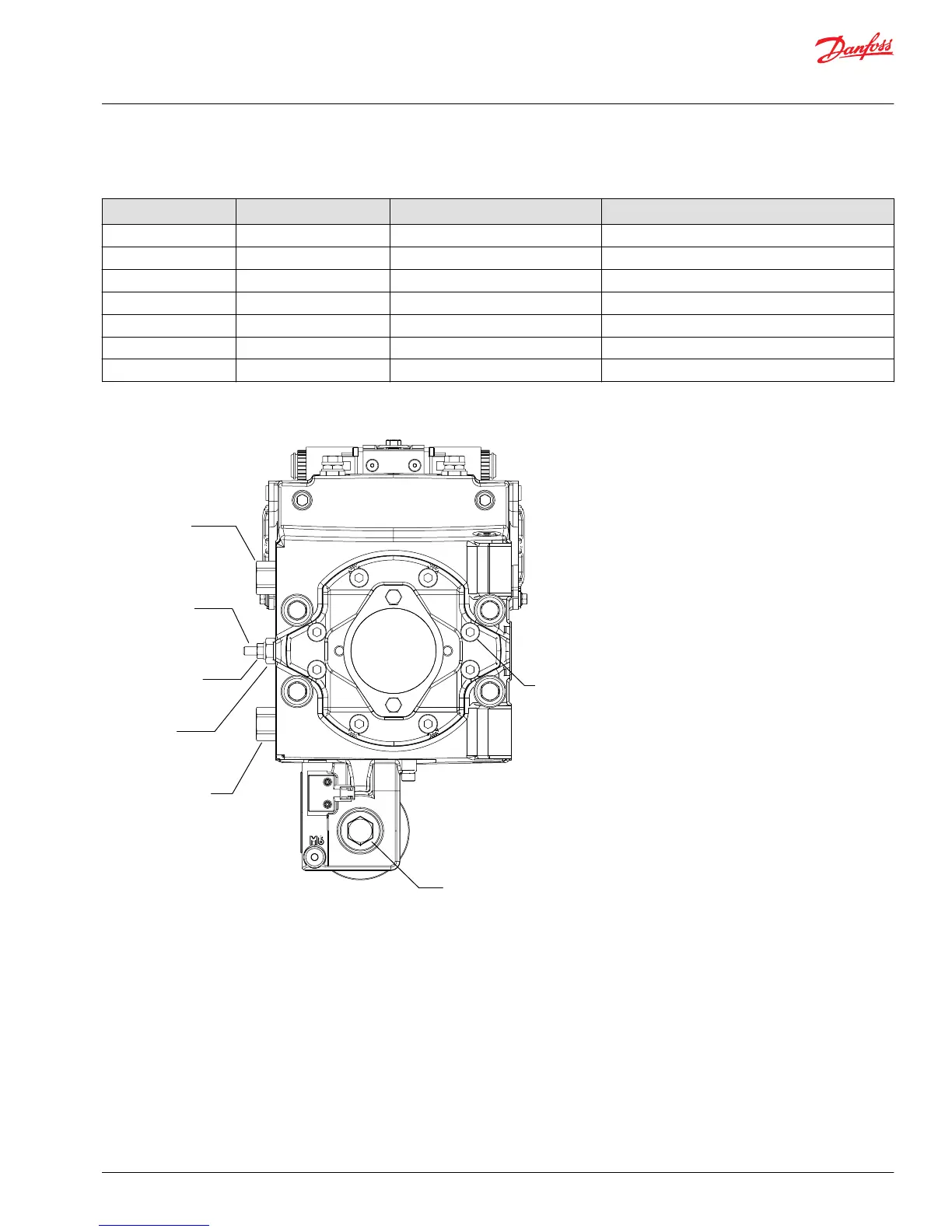

Fasteners and Plugs
P106 066E
T015
Filter mounting bolt
K400
Rear cover / auxiliary pad
mounting bolt
V020
Charge pressure
adjusting screw
V022
Charge pressure
locking nut
V010
Charge pressure
cartridge
L150
High pressure
relief valve
L150
High pressure
relief valve
Service Manual
H1 Pumps 069/078, 089/100, 115/130, 147/165, 210/250
Torque Chart
©
