7. Remove valve plate (S250) with seal (S300). Note orientation of valve plate and seal. Discard seal
(S300).

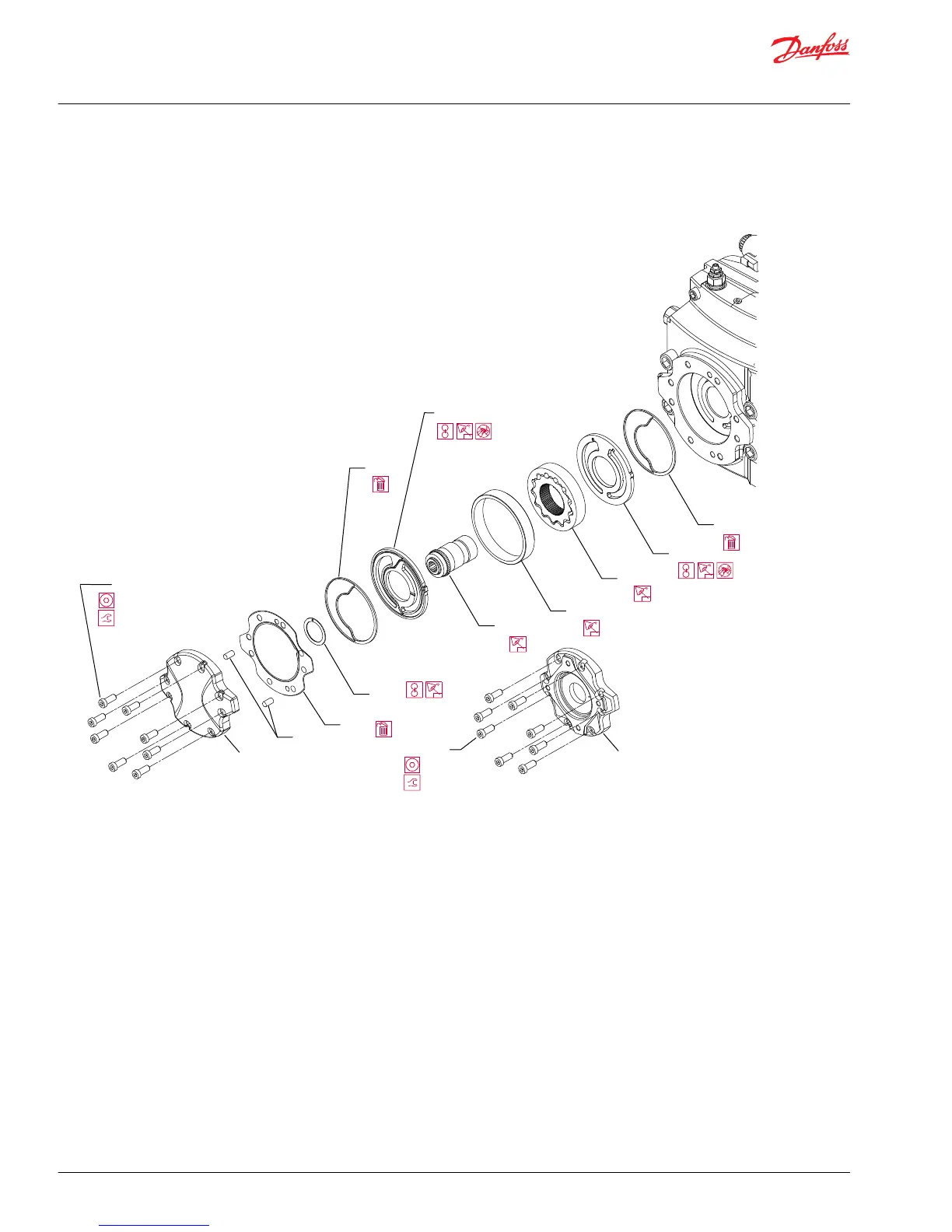

Charge Pump Removal/Installation
P106 036E
K100
K150
K500
G450
S150
S300
S250
S100
S300
S200
K200
K100
K400
10 mm
92 Nm [68 ft•lb]
K400
10 mm
92 Nm [68 ft•lb]
Charge Pump Removal (integrated auxiliary pad)
1. Remove auxilliary pump and O-ring (K250). Discard O-ring.
2. Remove charge pump cover screws (K450) and charge pump cover (K550).
3. Remove thrust washer (K500). Note its orientation. Coated side is towards charge pump coupling
(K200).
4. Remove pressure-balance plate (S200) with seal (S300). Note orientation of valve plate and seal.
Discard seal (S300).
5. Remove charge pump coupling K200).
6. Remove charge pump gearset (S100) and outer ring (S150).
