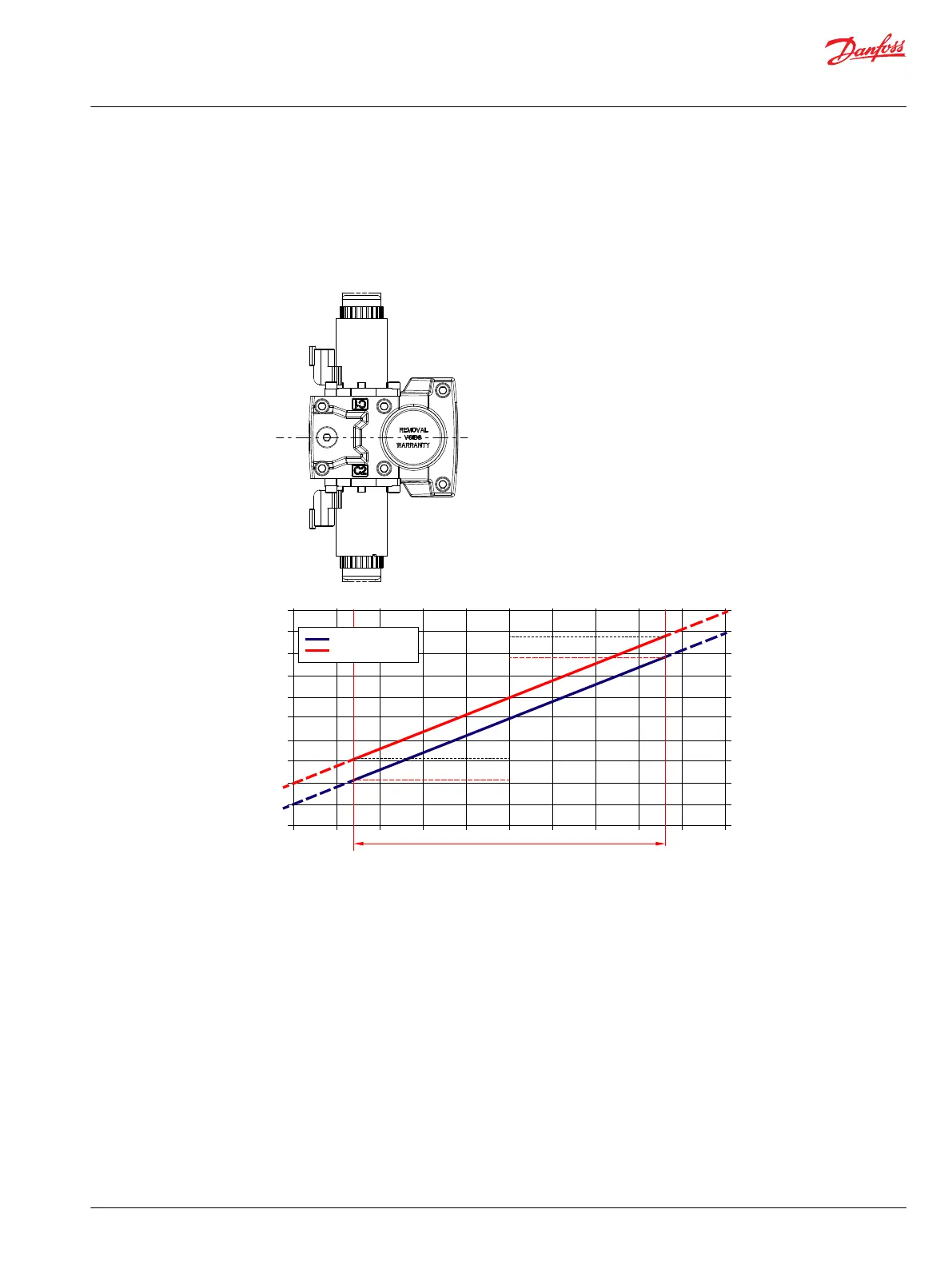

Swash plate angle sensor for NFPE and AC2 controls
The angle sensor detects the swash plate angle position and direction of rotation from the zero position.
The swash angle sensor works on the AMR sensing technology. Under the saturated magnetic field, the
resistance of the element varies with the magnetic field direction. The output signal give a linear output
voltage for the various magnet positions in the sensing range. The swashplate angle sensor is available
for all NFPE and AC2 controls.
-25° -20° -15° -10° -5° 0° 5° 10° 15° 20° 25°
5
4.5
4
3.5
3
2.5
2
1.5
1
0.5
0
Swashplate angle
Output voltage (V)
P005 704E
Signal 1 (nominal)
Signal 2 (redundant)
Swashplate angle vs. output voltage (calibrated at 50 °C)
Basic Information
H1 Axial Piston Pumps, Single and Tandem
Operation
©
Danfoss | April 2017 11062168 | BC00000057en-US0602 | 17
