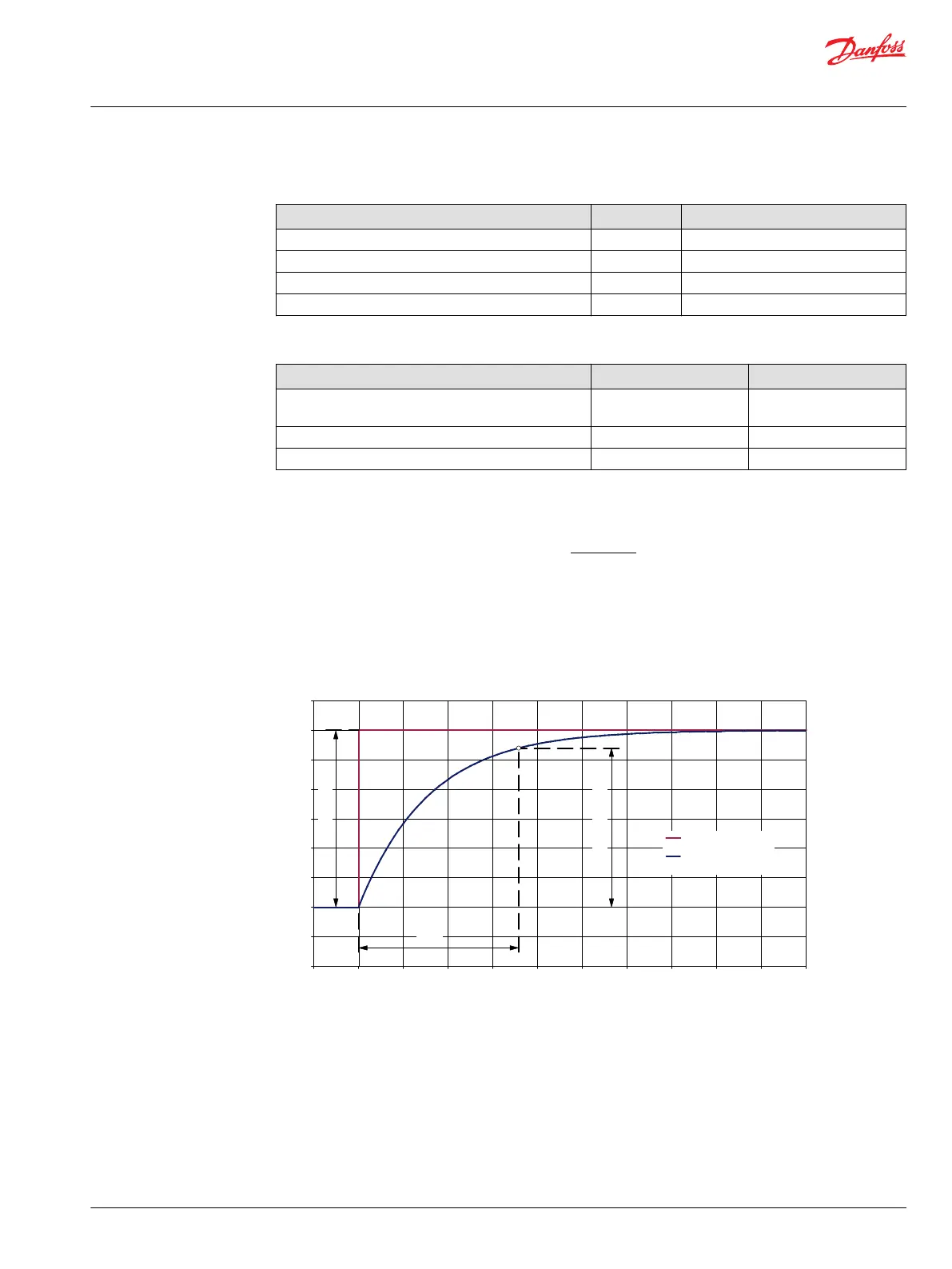

Danfoss H1 Basic Information

Ordering data
Description Quantity Ordering number
Mating connector 1 DT06-6S
Wedge lock 1 WM65
Socket contact (16 and 18 AWG) 6 0462-201-2031
Danfoss mating connector kit 1 11033865
Temperature sensor data
Parameter Minimum Maximum
Temperature range
*
-40 ± 5 °C
[-40 ± 51 °F]
125 ± 5 °C
[257 ± 51 °F]
Output signal 0.520 V
DC
2.203 V
DC
Response time in oil T
90
360 s
*
For temperature range see the formula below.
The formula used to calculate the case oil temperature:
T
=
0.0102
(1.795 – V
O
)
T – Temperature (°C)
V
O
– Measured output voltage (V)
Response time in oil T
90
definition (Temperature vs. time)
0
0
10
20
30
40
50
60
70
80
90
-100 100 200 300 400 500 600 700 800 900 1000
P003531E
Real temperature
Temperature
Signal
T
90
definition
T
90
Time (S)
Temperature (°C)
90 % of ∆ Temp
∆ Temp
Basic Information
H1 Axial Piston Pumps, Single and Tandem
Operation
©
Danfoss | April 2017 11062168 | BC00000057en-US0602 | 21
