Danfoss H1P Series User Manual

D250
5 mm
(6X)
D150
F00A
3 mm
F00B
P107 990E
D610 (2X)
Security
wax seal (2X)
D640
D084
D098
13.3 Nm
[9.8 lbf•ft]
2.5 Nm
[1.8 lbf•ft]
D674
D672

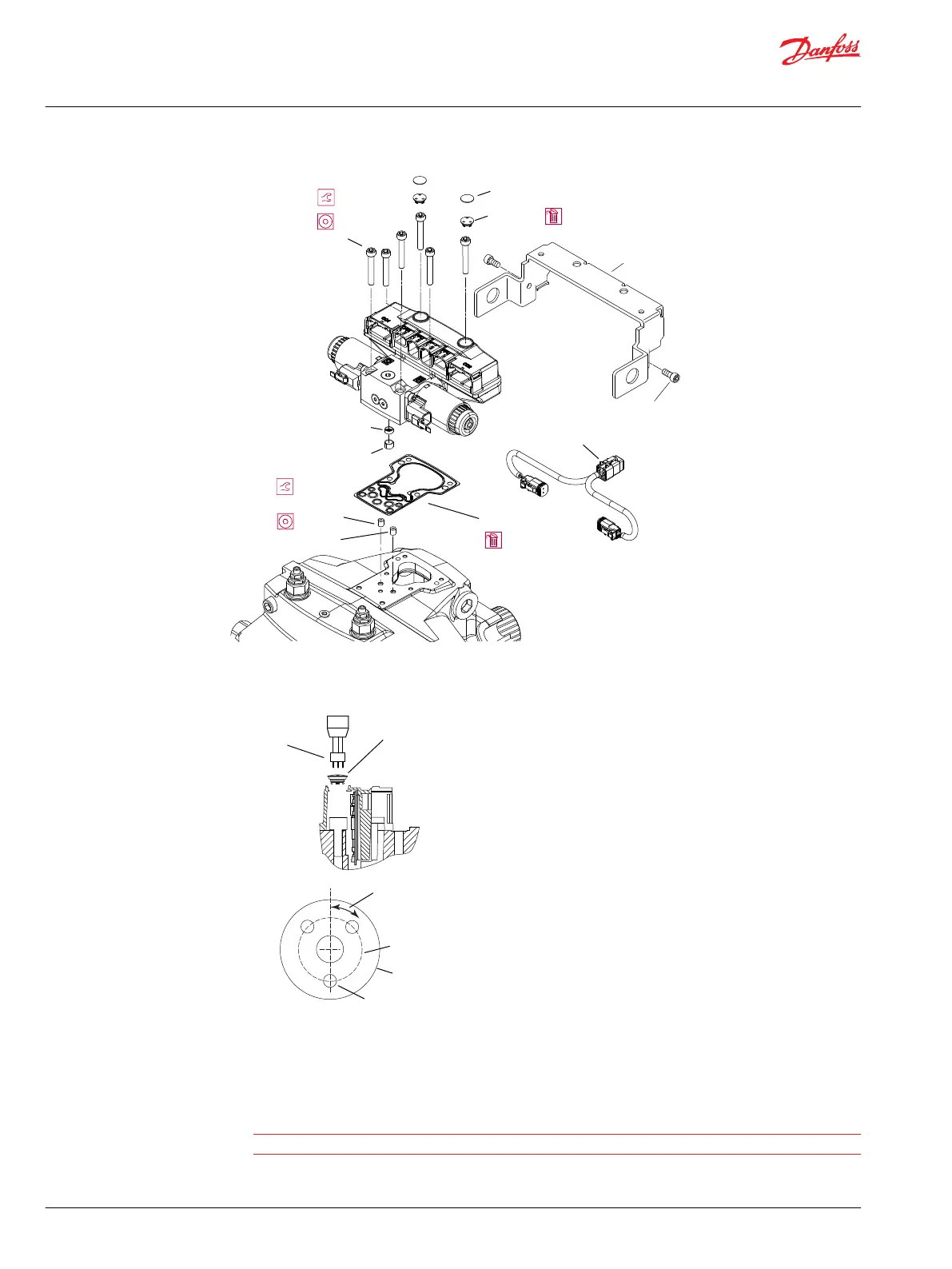

1. Disconnect and remove wiring (D640).
2. Fabricate a special tool to remove two plastic plugs (D610).
See drawing below for tool dimensions.
Special
tool
Plug
P108 021E
Ø 1.7 mm (x3)
Ø 9.22 mm
45 deg.
Ø 14 mm
3. Push down on plug and turn 45 degrees counterclockwise.
4. Discard plugs.
Wax seals will be destroyed when the plugs are removed.
C
Caution
Do not damage the housing in the plug sealing area.
5. Use a 5 mm internal hex to remove two screws (D674) and remove shield (D672).
6. Use a 5 mm internal hex to remove six screws (D250) and remove control from pump.
Service Manual
H1P 069—H1P 250 Axial Piston Single Pumps
Minor Repair
50 |
©
Danfoss | September 2020 AX152886482551en-000504
