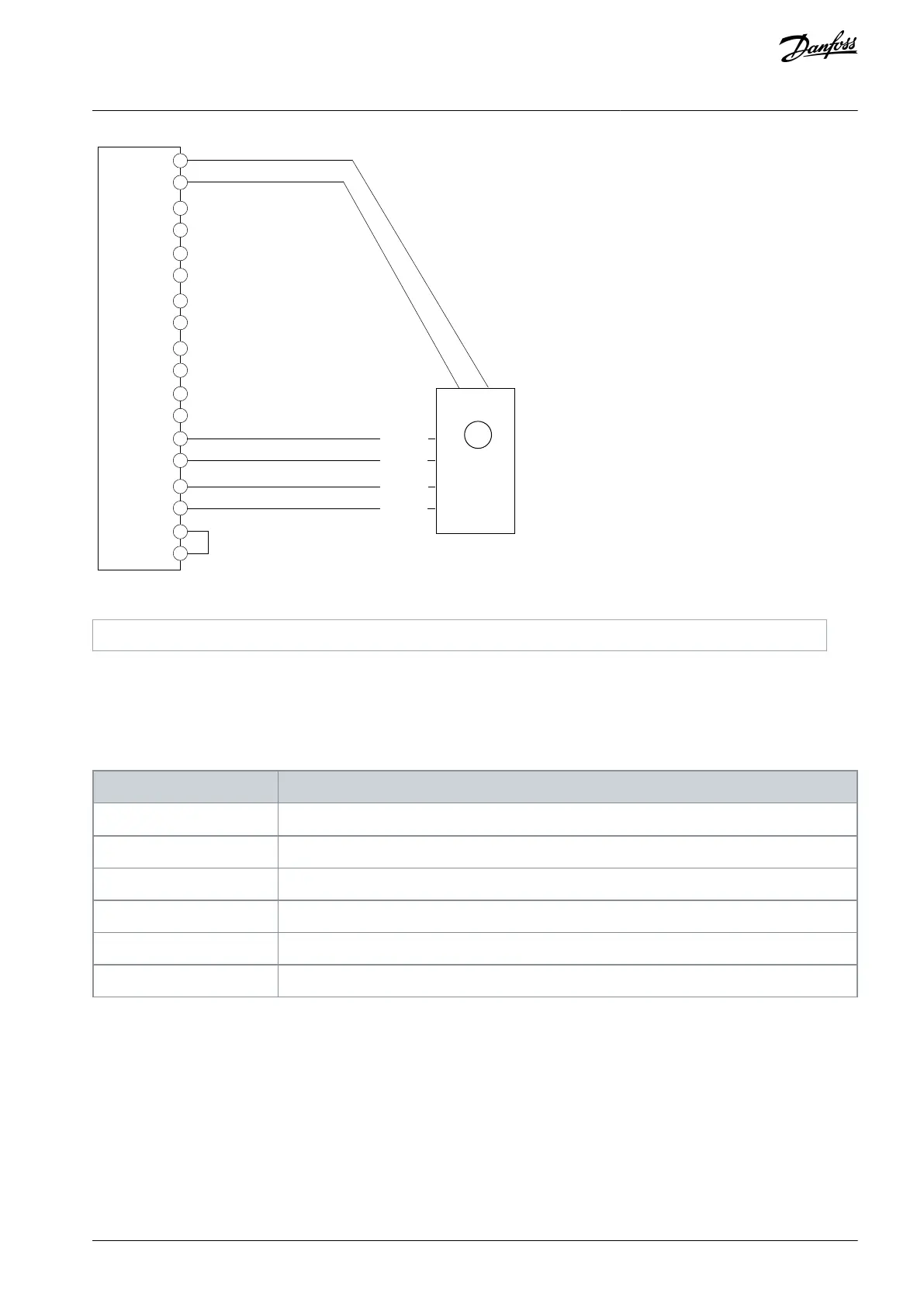

Illustration 16: Wiring Configuration for 2-Track EnDat Encoder
1
Encoder
5.5.11 EnDat and Incremental (TTL or HTL) Encoder
This example shows the connection of an EnDat encoder on Z and D as channel 1 and a 2-track incremental encoder on A and B as
channel 2. An external supply may be needed if the power requirement exceeds the maximum power of the encoder supply (pin
17), or if the 2 encoders require different supply voltage.
Table 18: Parameters for EnDat and Incremental (TTL or HTL) Encoder
Parameter
Setting
9.4.1 Interface configuration
Select [23] EnDat Z,D + 2 track incremental A,B.
9.4.4 Encoder Supply Voltage
Set the appropriate voltage.
9.5.2 Resolution Channel 2
Set the resolution of the incremental encoder connected to A and B in pulses per revolution.
9.6.1 Singleturn Resolution
Set the number of bits used for one revolution of the connected EnDat encoder.
9.6.2 Multiturn Resolution
Set the number of bits used for counting the revolutions of the connected EnDat encoder.
9.6.3 EnDat Clock Rate
Select the clock rate according to the encoder specifications.
AQ390830267692en-000601 / 136R0273 | 29Danfoss A/S © 2023.06
