Danfoss iC7 Series

e30bk899.10
17
15
7
3
5
2
1
9
8
6
4
13
11
10
16
14
12
18
A+
A–
B+
B–
Clock+
Clock–
Data+
Data–
1
3
2

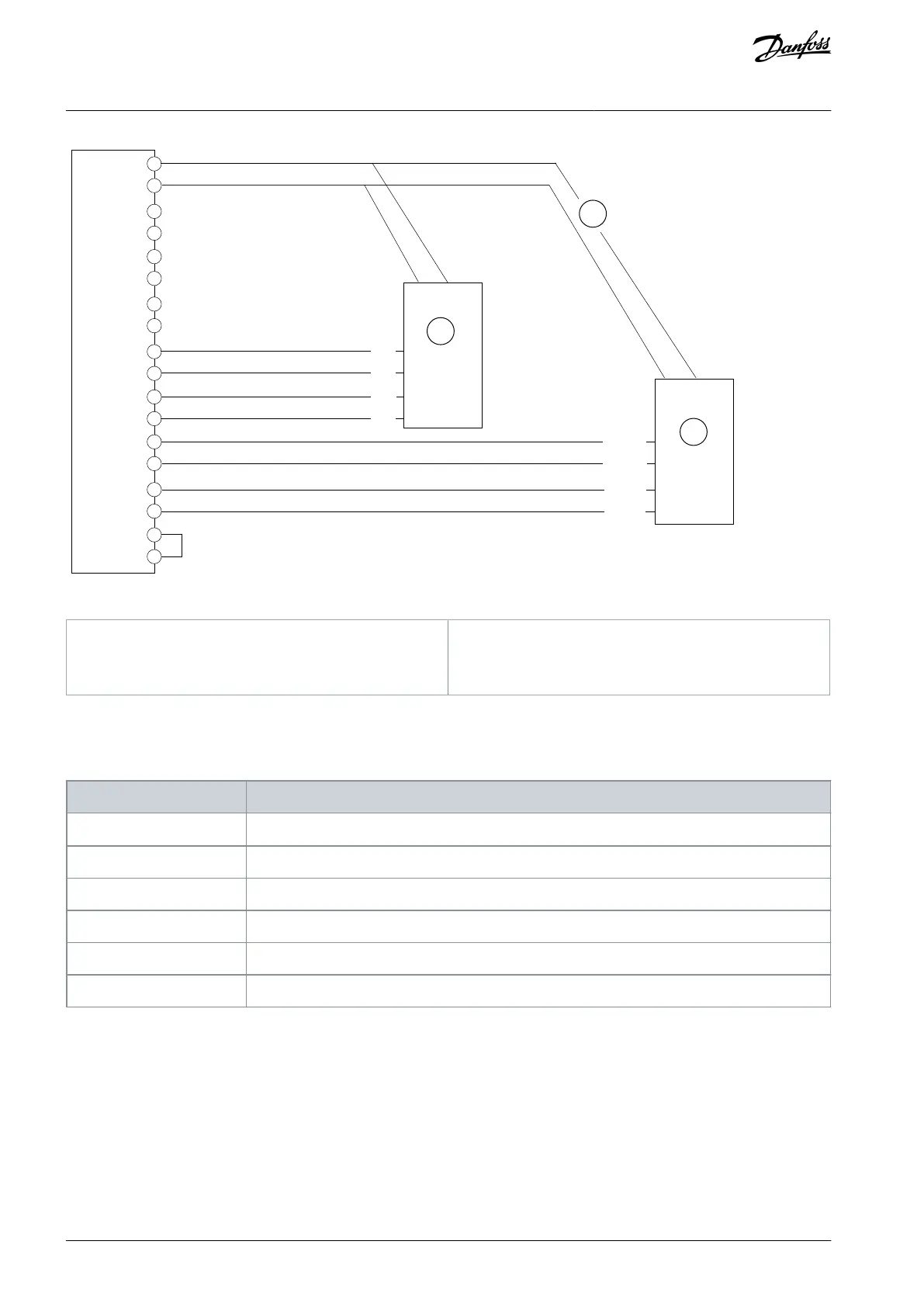

Illustration 17: EnDat and Incremental (TTL or HTL) Encoder
1
Incremental encoder
2
External power supply
3
EnDat absolute encoder
5.5.12 HIPERFACE®
This example shows the connection of a dual-channel HIPERFACE® with data channel on D, and SinCos channel on A and B.
Table 19: Parameters for HIPERFACE®
Parameter
Setting
9.4.1 Interface Configuration
Select [25] Hiperface.
9.4.4 Encoder Supply Voltage
Set the appropriate voltage.
9.6.1 Singleturn Resolution
Set the number of bits used for 1 revolution of the connected HIPERFACE® encoder.
9.6.2 Multiturn Resolution
Set the number of bits used for counting the revolutions of the connected HIPERFACE® encoder.
9.6.6 Hiperface Baud Rate
Select the appropriate baud rate.
9.6.7 Hiperface Parity
Select the appropriate parity.
AQ390830267692en-000601 / 136R027330 | Danfoss A/S © 2023.06
Encoder/Resolver Installation and
Configuration
Functional Extension Options
Operating Guide
