18
A+
A–
B+
B–
Data/supply+
Data/supply–
2
1
3

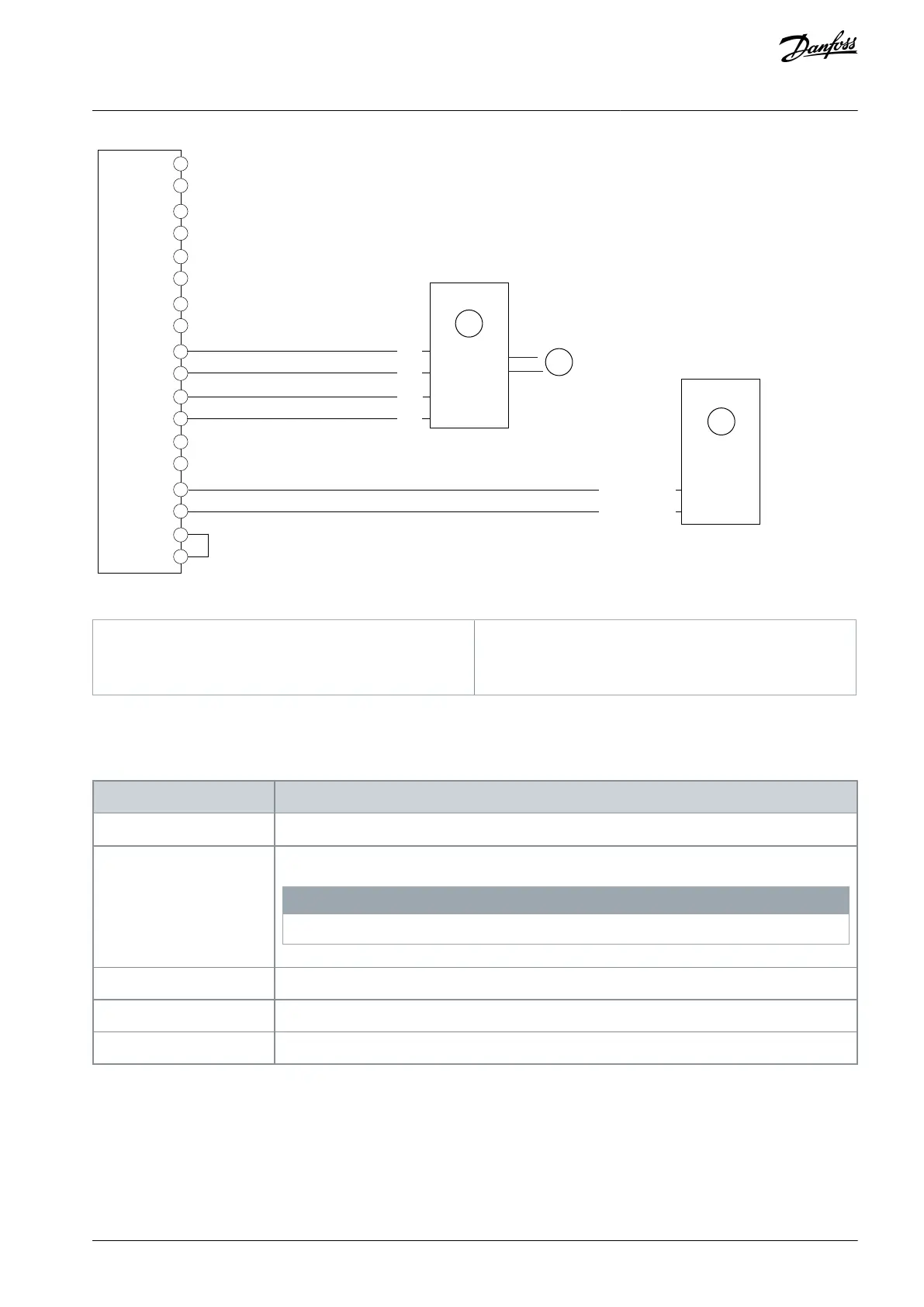

Illustration 20: Wiring Configuration for HIPERFACE DSL® and Incremental (TTL or HTL) Encoder
1
Incremental encoder
2
External power supply
3
HIPERFACE DSL® encoder
5.5.15 BiSS Encoder
Absolute position is read from the encoder and used to set the actual position after power-up.
Table 22: Parameters for BiSS Encoder
Parameter
Setting
9.4.1 Interface configuration
Select [29] BiSS Z,D.
9.4.4 Encoder Supply Voltage
Set the appropriate supply voltage.
N O T I C E
Voltage can be up to 24 V. Setting the voltage too high can damage the connected encoder.
9.6.1 Singleturn Resolution
Set the number of bits used for 1 revolution.
9.6.2 Multiturn Resolution
Set the number of bits used for revolution count.
9.6.5 BiSS/SSI Clock Rate
Set the rate for the clock signal according to the encoder specifications.
