Technical Information KPP PPU
11029257 • Rev BB • July 201316

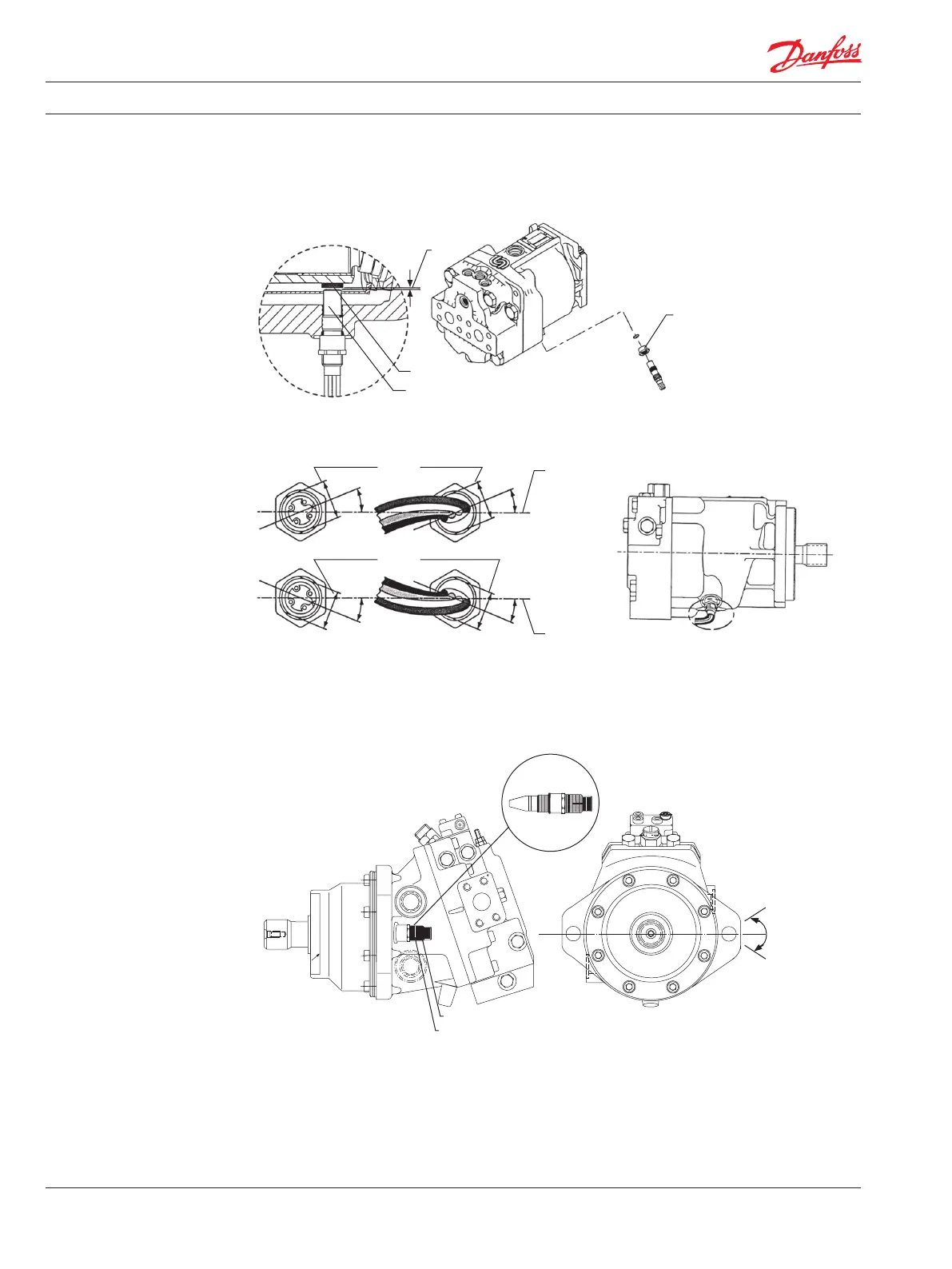

Installation Diagrams
Pulse Pickup Installation
Gap
Magnetic speed ring
Speed sensor
11/16 hex wrench
Torque: 13 N•m [10 lbf•ft]
after adjustment
Hold sensor in position
while tightening locknut
22° 22°
22° 22°
12,7 [0.50]
Flats
12,7 [0.50]
Flats
Sensor with
Turck Eurofast connector
Sensor with
Packard connector
Shaft cernterline
Shaft cernterline
2055A
180° ± 15°
Speed sensor
Orientation notch
2052A
Directional Conical End Models, Series 51 and 51-1 Cartridge Motors Only
